General information

Manufacturers of measuring equipment regularly develop and launch new models of spectrum analyzers. After some time, after the start of sales of new models, old models and series are gradually discontinued.

After the cessation of production of a particular model, we continue to support it: service and repair. As a rule, after being discontinued, factory repairs are possible for 5 years or more. After the stock of original microcircuits and spare parts in the service center is exhausted, professional factory repair becomes impossible.

Discontinued models and series

For a list of discontinued models and proposed replacements, see the table below.

Model	A photo	Short description
RF spectrum analyzers of the Anritsu company (discontinued)
Anritsu BTS Master MT8222A discontinued	Product code: 1000810	MT8222A High Performance Base Station Spectrum Analyzer and Signal Analyzer Frequency: 100 kHz - 7.1 GHz. Resolution (RBW): 1 Hz - 3 MHz. Amplitude: +30 dBm to -163 dBm. Noise: -163 dBm. Contains a built-in analyzer AFU (10 MHz - 4 GHz). Contains built-in power meter (100 kHz - 7.1 GHz). 3G demodulation and analysis options to test base stations. Measurements: spectrum analysis, signal analysis, transient analysis, tracking generator, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, 2-port frequency response analysis, etc. Applications: measurements GSM/GPRS/EDGE, WiMAX (Fixed and Mobile), CDMA/cdmaOne/CDMA2000/EVDO, W-CDMA/HSDPA, DVB-T/H, LTE, etc. Out of production. Replacement: Anritsu MT8213E.
Anritsu VNA Master MS2034A MS2036A discontinued	Product code: 1000233	Handheld Vector Network Analyzers with Integrated Spectrum Analyzer MS2034A, MS2036A Frequency: 2 MHz - 4 or 6 GHz. Number of ports: 2. Dynamic range: up to 80 dB. Resolution: up to 551 dots. Source power: 0 dBm or -35 dBm. Directionality, source matching and load matching: more than 42 dB. Contain a built-in spectrum analyzer. Frequency: 9 kHz - 4 or 6 GHz. Resolution (RBW): 1 Hz - 3 MHz. Amplitude: +30 dBm to -161 dBm. Noise: -161 dBm. Out of production. Replacement: Anritsu MS2034B.
Anritsu Cell Master MT8212B discontinued	Product code: 1000195	Universal portable spectrum analyzer (spectrum analyzer) for base stations MT8212B Frequency: 100 kHz - 3 GHz. Resolution (RBW): 100 Hz - 1 MHz. Amplitude: +20 dBm to -135 dBm. Noise: -135 dBm. Contains a built-in analyzer AFU (25 MHz - 4 GHz). Contains built-in power meter (4.5 MHz - 3 GHz). Measurements: spectrum analysis, AM/FM demodulator, transient analysis, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, 2-port frequency response analysis, return loss, SWR, attenuation, cable distance to fault and others Out of production. Replacement: Anritsu Cell Master MT8212E.
Anritsu Site Master S332D discontinued	Product code: 1000024	Handheld spectrum analyzer for mobile networks S332D Frequency: 100 kHz - 3 GHz. Resolution (RBW): 100 Hz - 1 MHz. Amplitude: +20 dBm to -135 dBm. Noise: -135 dBm. Contains a built-in analyzer AFU (25 MHz - 4 GHz). Measurements: spectrum analysis, AM/FM demodulator, transient analysis, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, return loss, SWR, attenuation, cable fault distance, GPS receiver, etc. Out of production. Replacement: Anritsu Site Master S332E.
Anritsu Site Master S312D discontinued	Product code: 1000202	Handheld spectrum analyzer for mobile networks S312D Frequency: 100 kHz - 1.6 GHz. Resolution (RBW): 100 Hz - 1 MHz. Amplitude: +20 dBm to -135 dBm. Noise: -135 dBm. Contains a built-in analyzer AFU (25 MHz - 1.6 GHz). Measurements: specialized measurements P25, TETRA, spectrum analysis, field strength, power, return loss, SWR, attenuation, distance to fault, etc. Out of production. Replacement: Anritsu LMR Master S412E.
Anritsu MS2711D discontinued	Product code: 1000025	Handheld Spectrum Analyzer for Mobile Networks MS2711D Frequency: 100 kHz - 3 GHz. Resolution (RBW): 100 Hz - 1 MHz. Amplitude: +20 dBm to -135 dBm. Noise: -135 dBm. Measurements: Spectrum Analysis, Received Signal Strength (RSSI), Channel Powers, Adjacent Channel Power Ratio (ACPR), Occupied Bandwidth. Applications: GSM, CDMA, CDMA2000, IS136, TACS, UMTS, 802.11a,b,g, AMPS, etc. Out of production. Replacement: Anritsu MS2712E.
Anritsu MS2722C MS2723C MS2724C MS2725C MS2726C discontinued	Product code: 1000231	Portable spectrum and signal analyzers for mobile networks and radio monitoring MS2722C, MS2723C, MS2724C, MS2725C, MS2726C Frequency: 9 kHz - 9 GHz (model MS2722C). Frequency: 9 kHz - 13 GHz (model MS2723C). Frequency: 9 kHz - 20 GHz (model MS2724C). Frequency: 9 kHz - 32 GHz (model MS2725C). Frequency: 9 kHz - 43 GHz (model MS2726C). Resolution (RBW): 1 Hz - 10 MHz. Amplitude: +30 dBm to -160 dBm. Noise: -160 dBm. Built-in preamp over the entire frequency range. 3G demodulation and analysis options to test base stations. Measurements: spectrum analysis, signal analysis, transient analysis, tracking generator, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, GPS receiver, etc. Applications: GSM/GPRS/EDGE, WiMAX (Fixed and Mobile) measurements ), CDMA/cdmaOne/CDMA2000/EVDO, W-CDMA/HSDPA, DVB-T/H, LTE, etc. Out of production. Replacement: Anritsu MS2720T.
Anritsu MS2721B MS2723B MS2724B discontinued	Product code: 1000811	Portable spectrum and signal analyzers (spectrum analyzer) for mobile networks and radio monitoring Frequency: 9 kHz - 7.1 GHz (MS2721B), 9 kHz - 13 GHz (MS2723B), 9 kHz - 20 GHz (MS2724B). Resolution (RBW): 1 Hz - 3 MHz. Amplitude: +30 dBm to -163 dBm. Noise: -163 dBm. 3G demodulation and analysis options to test base stations. Measurements: spectrum analysis, signal analysis, transient analysis, tracking generator, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, GPS receiver, etc. Applications: GSM/GPRS/EDGE, WiMAX (Fixed and Mobile) measurements ), CDMA/cdmaOne/CDMA2000/EVDO, W-CDMA/HSDPA, DVB-T/H, LTE, etc. Out of production. Replacement: Anritsu MS2720T.
Anritsu MS2683A	Product code: 1000949	Spectrum analyzer. 9 kHz - 7.8 GHz. Resolution: 10 Hz to 3 MHz. Video bandwidths: 1 Hz to 3 MHz. Input level: up to +30 dBm. Noise level: -115 dBm. Built-in frequency counter with a resolution of 1 Hz.
Spectrum analyzers of the Tektronix company (discontinued)
Tektronix RSA306 discontinued	Product code: 1000813	Tektronix RSA306 USB Real Time Spectrum Analyzer Frequency: 9 kHz - 6.2 GHz. capture lane real time: 40 MHz. Up to 10,000 spectrograms per second. The minimum duration of an event detected with a probability of 100%: up to 100 µs. Amplitude: +20 dBm to -160 dBm. Noise: -160 dBm. 27 standard measurements for spectrum analysis and pulse signals. Comprehensive spectrum analysis using free Tektronix SignalVu-PC software. Real-time spectrum display to quickly find transients and interferers. Capture streaming data for long-term recording. Additional options: direction finding, modulation analysis, signal analysis of certain standards, pulse measurements and frequency settling time measurements. Interfaces: USB 3.0. Operating temperature range: from -10°С to +55°С. Weight: 0.59 kg. Out of production. Replacement: Tektronix RSA306B.

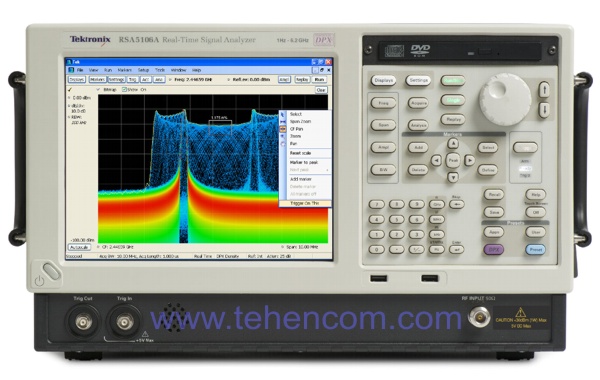

Tektronix RSA5103A RSA5106A discontinued	Product code: 1000814	Tektronix RSA5000 Series Real Time Spectrum Analyzers Frequency: 1 Hz - 3 GHz (model RSA5103A). Frequency: 1Hz - 6.2GHz (model RSA5106A). Real time capture bandwidth: 25 MHz, 40 MHz (option), 85 MHz (option). Amplitude: +30 dBm to -167 dBm. Built-in preamplifier (option). Noise: -167 dBm. Before 292,000 spectrograms per second, 50,000 waveforms per second in the time domain. The minimum duration of an event detected with a probability of 100%: up to 5.8 µs. Standard measurements: Channel Power, Adjacent Channel Leakage Ratio (ACLR), Occupied Bandwidth, Radiated Bandwidth, Complementary Cumulative Distribution Function (CCDF), Glitter Search, EMI Detectors, Amplitude, Frequency, Phase vs. Time Plotting, DPX Spectrum and spectrograms, correlated display in several areas, etc. Additional options: advanced real-time spectrum analysis (DPX) modes, including swept DPX, non-discontinuous DPX spectrograms, zero-span DPX with real-time amplitude, frequency or phase measurements; advanced trigger: DPX Density, interval, runt, frequency hop and frequency mask; measurements of audio signals and AM/FM/FM signals; measurement of phase noise and jitter; automatic measurement of frequency and phase settling time; more than 20 measurements of pulsed signals, including rise time, pulse duration, phase shift between pulses, impulse response; general analysis of more than 20 types of modulation; flexible OFDM analysis for 802.11a/g/j and WiMax 802.16-2004 standards, etc. Interfaces: USB, IEEE-488.2 (GPIB), Ethernet, VGA, etc. Operating temperature range: from +5°С to +40°С. Weight: 24 kg. Out of production. Replacement: Tektronix RSA5000B.

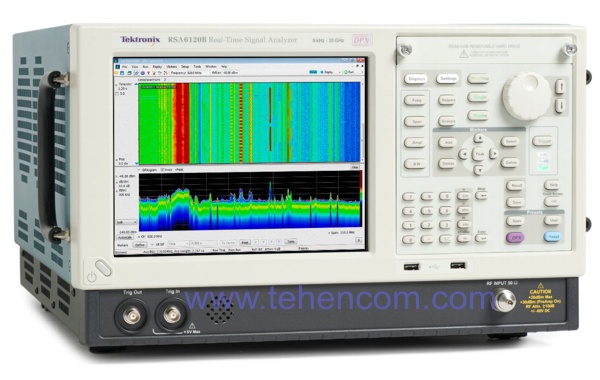

Tektronix RSA6106B RSA6114B RSA6120B discontinued	Product code: 1000815	Tektronix RSA6000 Series Real Time Spectrum Analyzers Frequency: 9 kHz - 6.2 GHz (model RSA6106B). Frequency: 9 kHz - 14 GHz (model RSA6114B). Frequency: 9 kHz - 20 GHz (model RSA6120B). Real time capture bandwidth: 40 MHz, 110 MHz (option). Amplitude: +30 dBm to -167 dBm. Built-in preamplifier (option). Noise: -167 dBm. Before 292,000 spectrograms per second, 60,000 waveforms per second in the time domain. The minimum duration of an event detected with a probability of 100%: up to 3.7 µs. Standard measurements: channel power, ACPR, power versus time, CCDF, OBW/EBW, spurious noise detection, signal statistics, etc. Additional options: advanced real-time spectrum analysis (DPX) modes, including swept DPX, non-discontinuous DPX spectrograms, zero-span DPX with real-time amplitude, frequency or phase measurements; measurement of parameters of audio signals and AM/FM/FM signals; phase noise and jitter measurements; measurement of settling time for frequency and phase; an extended set of measurements for analyzing pulsed signals, including measurements of rise time, pulse duration, and phase between pulses; analysis of the main types of digital modulation; flexible analysis of 802.11a/g/j/p and WiMAX 802.16-2004 signals with OFDM modulation, etc. Interfaces: USB, IEEE-488.2 (GPIB), Ethernet, VGA, etc. Operating temperature range: from +5°C to +50°С. Weight: 26 kg. Out of production. Replacement: Tektronix RSA5000B.
Spectrum analyzers of the Aaronia AG company (discontinued)
Aaronia SPECTRAN V5 HF-8060 HF-80120 HF-80160 HF-80200 discontinued	Product code: 1000816	Aaronia SPECTRAN V5 real-time spectrum analyzers Frequency: 9 kHz (1 Hz) - 6 GHz (model HF-8060). Frequency: 9 kHz (1 Hz) - 12 GHz (model HF-80120). Frequency: 9 kHz (1 Hz) - 16 GHz (model HF-80160). Frequency: 9 kHz (1 Hz) - 20 GHz (model HF-80200). Resolution (RBW): 1 Hz - 40 MHz. Amplitude: +20 dBm to -150 dBm. Noise: -150 dBm (up to -170 dBm with external preamp) Scans the entire frequency range in 20 ms. capture lane real time: 44 MHz or 88 MHz (depending on the model). Real-time capture bandwidth extension (optional): 160 MHz and 175 MHz. The minimum duration of an event detected with a probability of 100%: up to 1 µs. Additional options: tracking and vector generators (up to 6 GHz), built-in 20 dB preamplifier, external 40 dB preamplifier, ultra-low phase noise, highly stable OCXO reference oscillator (0.005 ppm), real-time acquisition bandwidth extension (up to 160 MHz and up to 175 MHz), bandwidth extension (from 1 Hz), built-in sensor power (20 GHz or 40 GHz), etc. Six body types for various applications: handheld (with touch screen), USB (without display), for manufacturers (OEM), outdoor, for remote monitoring (rack mount), inside an all-weather notebook. Working temperature: from 0°С to +40°С. Out of production. Replacement: Aaronia SPECTRAN V6.
Aaronia HF-4040 HF-4060 discontinued	Product code: 1000021	Spectrum analyzers HF-4040, HF-4060 SPECTRAN series Frequency: 100 MHz - 4 GHz (model HF-4040). Frequency: 100 MHz - 6 GHz (model HF-4060). Resolution (RBW): 100 kHz - 50 MHz. Amplitude: 0 dBm to -90 dBm. Noise: -90 dBm. Amplitude accuracy: ±3 dB. Measurements: spectrum analysis, channel power, electromagnetic compatibility parameters (EMC), etc. Demodulation: AM, FM. Interfaces: USB. Weight: 420 g. Out of production. Replacement: Aaronia SPECTRAN V6.
Aaronia HF-6060 HF-6080 HF-60100 discontinued	Product code: 1000020	Spectrum analyzers HF-6060, HF-6080, HF-60100 SPECTRAN V4 series Frequency: 10 MHz - 6 GHz (model HF-6060). Frequency: 10 MHz - 8 GHz (model HF-6080). Frequency: 1 MHz - 9.4 GHz (model HF-60100). Resolution (RBW): 200 Hz - 50 MHz (depending on model). EMC filters: 200 Hz, 9 kHz, 120 kHz, 100 kHz, 1.5 MHz, 5 MHz. Amplitude (max.): +10 dBm, +20 dBm, +40 dBm (opt.) (depending on model). Amplitude accuracy: up to 1 dB. Noise: up to -150 dBm (with preamp). Measurements: spectrum analysis, channel power, electromagnetic compatibility (EMC) parameters, etc. Demodulation: AM, FM, PM, GSM (Depends on model). Preamplifier (option). Interfaces: USB. Weight: 420 g. Out of production. Replacement: Aaronia SPECTRAN V6.
Aaronia NF-5030 discontinued	Product code: 1000022	Portable Electric (E) and Magnetic (H) Field Analyzer NF-5030 SPECTRAN NF Series Frequency: 1Hz - 30MHz (model NF-5030). Magnetic field measurement range (H): from 0.1 nT to 2 mT. Electric field measurement range (E): 0.1 V/m to 20 kV/m. Amplitude Accuracy: ±3%. Built-in 3D magnetic field sensor. Built-in memory 64K (1M option). Remote control via USB. Interfaces: USB. Weight: 420 g.
Aaronia NF-3010 NF-3020 discontinued	Product code: 1000023	Portable analyzers of electric (E) and magnetic (H) fields NF-3010, NF-3020 of the SPECTRAN NF series Frequency: 10 Hz - 100 kHz (model NF-3010). Frequency: 10 Hz - 400 kHz (model NF-3020). Magnetic field measurement range (H): from 1 nT to 100 µT. Electric field measurement range (E): from 1 V/m to 5 kV/m. Amplitude Accuracy: ±5%. Built-in 3D magnetic field sensor. Built-in memory 64K (1M option). Remote control via USB. Interfaces: USB. Weight: 420 g.
Aaronia MCS program		Aaronia MCS spectrum analysis software (RAR archive) Each Aaronia spectrum analyzer comes with powerful free software that provides: - remote control and communication with instruments - work with spectrograms and time-frequency diagrams - display channels, work with patterns and masks - support for pre-tests for EMC EN55011, EN55022, etc. - and much more...
Spectrum analyzers of the Agilent Technologies company (discontinued)
Agilent ESA-L E4411B-BAS E4403B-BAS E4408B-BAS discontinued	Product code: 1000817	Agilent E4411B-BAS, E4403B-BAS, E4408B-BAS Spectrum Analyzers Frequency: 9 kHz - 1.5 GHz (E4411B-BAS), 9 kHz - 3 GHz (E4403B-BAS), 9 kHz - 26.5 GHz (E4408B-BAS). Resolution (RBW): 100 Hz - 5 MHz. Amplitude: +30 dBm to -130 dBm. Noise: -145 dBm. TOI: +7.5 dBm Absolute level measurement error: ±1.1 dB. Designed for basic spectral measurements. Out of production. Replacement: Anritsu MS2830A.
Agilent ESA-E E4402B-STD E4404B-STD E4405B-STD E4407B-STD discontinued	Product code: 1000818	Spectrum analyzers Agilent E4402B-STD, E4404B-STD, E4405B-STD, E4407B-STD Frequency: 9 kHz - 3 GHz (E4402B-STD), 9 kHz - 6.7 GHz (E4404B-STD), 9 kHz - 13.2 GHz (E4405B-STD), 9 kHz - 26.5 GHz (E4407B-STD). Resolution (RBW): 1 Hz - 5 MHz. Amplitude: +30 dBm to -140 dBm. Noise: -155 dBm. TOI: +16 dBm Measurements (options): distance to fault, noise level, phase noise. Out of production. Replacement: Anritsu MS2830A.
Agilent ESA-E E4402B-COM E4404B-COM E4405B-COM E4407B-COM discontinued	Product code: 1000819	Spectrum analyzers Agilent E4402B-COM, E4404B-COM, E4405B-COM, E4407B-COM Frequency: 9 kHz - 3 GHz (E4402B-COM), 9 kHz - 6.7 GHz (E4404B-COM), 9 kHz - 13.2 GHz (E4405B-COM), 9 kHz - 26.5 GHz (E4407B-COM). Resolution (RBW): 1 Hz - 5 MHz. Amplitude: +30 dBm to -145 dBm. Noise: -160 dBm. TOI: +16 dBm Measurements (options): demodulation, cdmaOne, GSM + EDGE, noise, phase noise. Out of production. Replacement: Anritsu MS2830A.
Agilent EXA N9010A	Product code: 1000964	Spectrum analyzer. 9 kHz - 3.6; 7.0; 13.6 or 26.5 GHz. Resolution: 1 Hz to 8 MHz. Video bandwidths: 1 Hz to 50 MHz. Level error: ±0.3 dB. Noise level: -162 dBm/Hz. Capabilities: WiMAX, W-CDMA, HSDPA/HSUPA and phase noise.
Agilent MXA N9020A	Product code: 1000965	Spectrum analyzer. 20 Hz - 3.6; 8.4; 13.6 or 26.5 GHz. Resolution: 1 Hz to 8 MHz. Video bandwidths: 1 Hz to 8 MHz. Level error: ±0.23 dB. Noise level: -154 dBm/Hz (DANL). Capabilities: WiMAX, W-CDMA, HSDPA/HSUPA and phase noise.
Agilent CSA N1996A	Product code: 1000966	Spectrum analyzer. 100 kHz - 3 GHz or 6 GHz. Resolution: 10 Hz to 5 MHz. Video bandwidths: 1 Hz to 50 MHz. Input level: up to +33 dBm. Noise level: -144 dBm. Tracking generator: 10 MHz to 3 GHz or 6 GHz.
Agilent N9912A	Product code: 1000193	Agilent N9912A FieldFox Handheld Spectrum Analyzer Frequency: 100 kHz - 4 GHz or 6 GHz. Resolution (RBW): 10 Hz - 2 MHz. Amplitude: +20 dBm to -145 dBm. Noise: -145 dBm. Contains a built-in AFA analyzer (2 MHz - 4 or 6 GHz). Measurements: spectrum analysis, signal analysis, transient analysis, tracking generator, channel scanner, field strength, signal/noise, bandwidth, ACPR, power, SWR, distance to fault, 2-port frequency response analysis, etc.
Agilent N9340A	Product code: 1000967	Spectrum analyzer. 100 kHz - 3 GHz. Resolution: 30 Hz to 1 MHz. Video bandwidths: 3 Hz to 1 MHz. Input level: up to +33 dBm. Noise level: -146 dBm. Absolute level measurement error: ±1.5 dB.
Spectrum analyzers of the Advantest company (discontinued)
Advantest U3661 discontinued	Product code: 1000821	Spectrum analyzer Advantest U3661 Frequency: 9 kHz - 26.5 GHz. Resolution (RBW): 100 Hz - 3 MHz. Amplitude: +30 dBm to -132 dBm. Noise: -132 dBm. Measurements: spectrum analysis, occupied bandwidth (OBW), adjacent channel power (ACP), CDMA analysis, etc. Various automated markers. Ability to set masks. Optional tracking generator and SWR bridge. Frequency counter function. TV signal demodulation function. Out of production. Replacement: Anritsu MS2830A.
Advantest U3771, U3772	Product code: 1000968	Spectrum analyzers Advantest U3771, U3772 Frequency: 9 kHz - 31.8 GHz (U3771), 9 kHz - 43 GHz (U3772). Resolution (RBW): 30 Hz - 3 MHz. Amplitude: +30 dBm to -139 dBm. Noise: -139 dBm. Measurements: Spectrum Analysis, Occupied Bandwidth (OBW), Channel Power, Adjacent Channel Power (ACP), Total and Average Power, Phase Noise, Harmonics, Spectrum vs Pattern, Frequency Counter Function, Electromagnetic Compatibility (EMC), etc. .Markers: multi-marker (up to 10), delta-marker, peak-marker, etc. Preamplifier (option). Interfaces: LAN, USB, GPIB.
Advantest U3741, U3751	Product code: 1000969	Spectrum analyzers Advantest U3741, U3751 Frequency: 9 kHz - 3 GHz (U3741), 9 kHz - 8 GHz (U3751). Resolution (RBW): 30 Hz - 3 MHz. Amplitude: +30 dBm to -139 dBm. Noise: -139 dBm. Measurements: spectrum analysis, occupied bandwidth (OBW), spurious level, channel power, adjacent channel power (ACP), total and average power, phase noise, harmonics, electromagnetic compatibility (EMC), etc. Markers: multi -marker (up to 10), delta marker, peak marker, etc. Preamplifier (option). Bright color LCD display 16.5 cm. Interfaces: LAN, USB, GPIB.
