A series of inexpensive optical loss meters (testers) Grandway FHM2

Grandway FHM2 - Optical testers (optical multimeters) (Grandway models: FHM2A01, FHM2A02, FHM2B01 and FHM2B02)

Product code: 1000339

On order

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

From 6 000 UAH



SHORT DESCRIPTION

Optical Testers or as they are also called optical multimeters of the economy series FHM2 companies grandway are compact and inexpensive devices that contain a source of stabilized optical radiation and a calibrated optical power meter. Optical testers Grandway FHM2 are used to measure the insertion loss in a fiber optic line, as well as to measure the level of optical power at various points in the network. The series consists of four models that differ in the number of emitter wavelengths (2 or 3) and the optical power level measurement range (up to +10 dBm or up to +26 dBm). You can download a full description of all the characteristics below on this page in the section Documentation.

Main characteristics:
Radiation: 1310 nm, 1550 nm. Measurement: -70 to +10 dBm (model FHM2A01).
Radiation: 1310 nm, 1550 nm. Measurement: -50 to +26 dBm (model FHM2B01).
Radiation: 1310 nm, 1490 nm, 1550 nm. Measurement: -70 to +10 dBm (model FHM2A02).
Radiation: 1310 nm, 1490 nm, 1550 nm. Measurement: -50 to +26 dBm (model FHM2B02).
Operating modes: insertion loss measurement, radiation source, power meter.
Radiation source: constant radiation or with modulation of 270 Hz, 1 kHz and 2 kHz.
The power meter automatically determines the wavelength and the presence of modulation.
Power meter calibrated: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm.
Display illumination. Memory: 999 records. Program for processing results on a PC.
Interface: USB. Battery life with power off: up to 100 hours.
Weight: 0.26 kg. Dimensions: 168 x 76 x 45 mm. Working temperature: from -10°С to +50°С.
Insertion loss measurement at the lowest cost

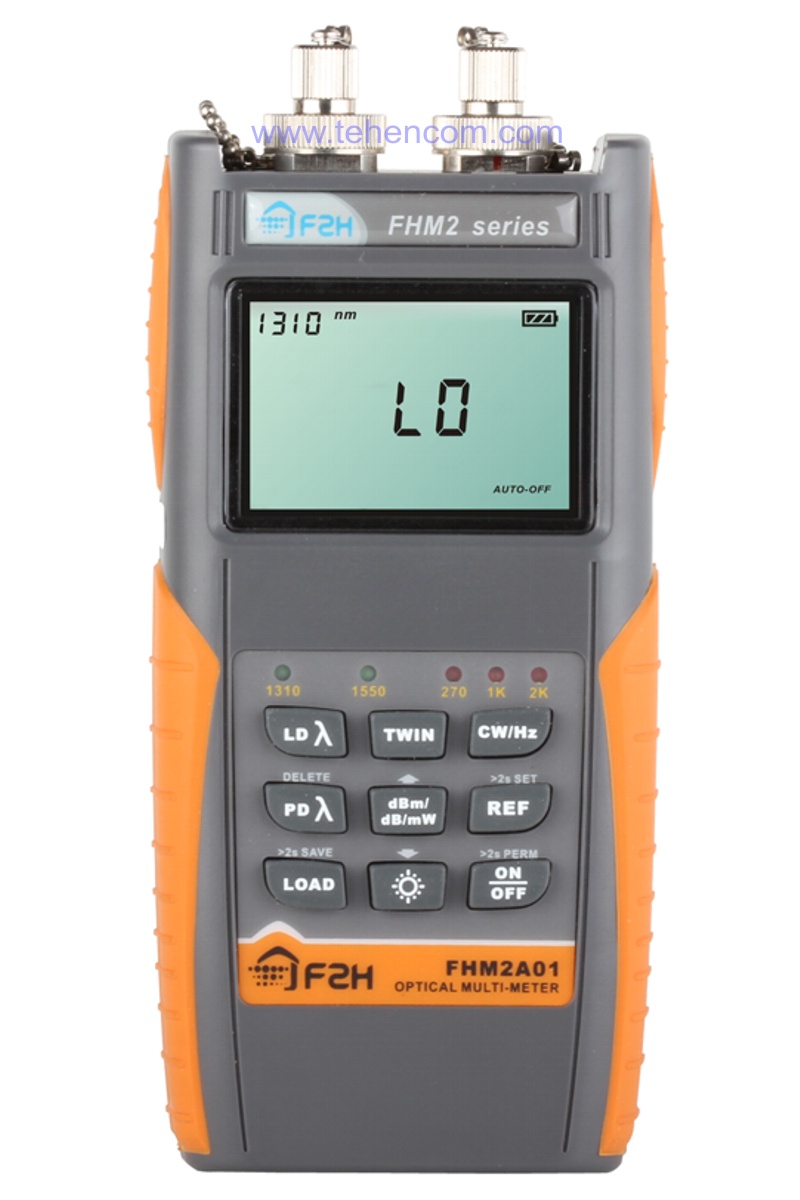

Location and purpose of the main elements of Grandway FHM2 optical testers

Grandway FHM2 optical testers have a classic arrangement of controls and connection connectors for devices of this type. On the left is a stabilized optical source connector for 2 or 3 wavelengths (depending on the model), and on the right is an optical power meter connector, which is calibrated at the six most common wavelengths. On the bottom of the case there is a power connector and a USB connector for connecting to a computer.

Location and purpose of the main elements of Grandway FHM2 optical testers
Location and purpose of the main elements of the Grandway FHM2 optical testers.



Processing of measurement results of optical testers Grandway FHM2

Optical testers Grandway FHM2 can store up to 999 measurement results in internal memory, which can be transferred via USB to a computer for processing, logging and storage. The program is used to work with measurement results. FHM2 Data Manager, which is included in the standard scope of delivery of the device.

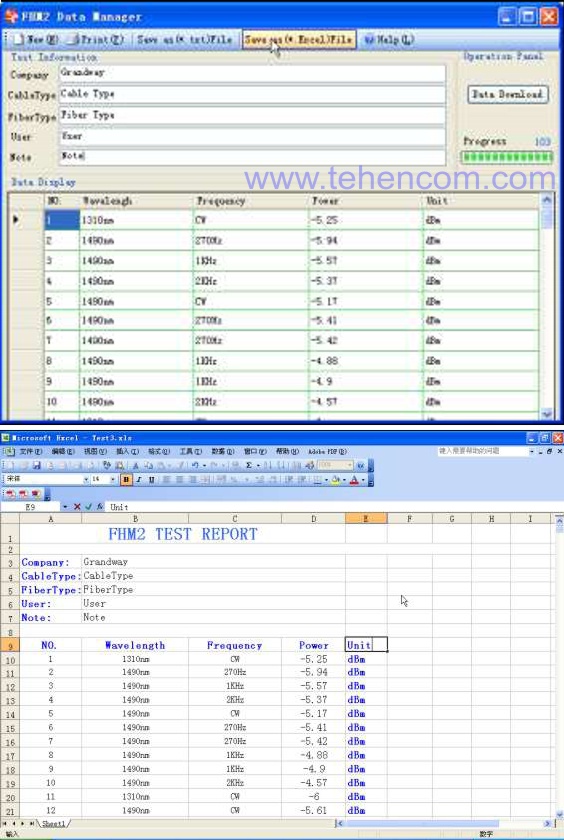

The top of this figure shows a screenshot of the FHM2 Data Manager window showing the measurement results of the Grandway FHM2 tester, and the bottom of the figure shows a screenshot of an Excel spreadsheet to which the same results were exported from the FHM2 Data Manager.

Screenshot of the FHM2 Data Manager processing program with the measurement results of the Grandway FHM2 tester and the same results in an Excel spreadsheet
Above is a screenshot of the FHM2 Data Manager processing program with the measurement results of the Grandway FHM2 tester, and below the same results in an Excel spreadsheet.

This PDF documentation contains the most comprehensive description of the Grandway FHM2 Series Optical Testers, their specifications and modes of operation.

Description of optical testers Grandway FHM2 (in English) (2 pages; 1 MB)
