1G and 10G EXFO MAX-800 Telecom Network Analyzer Series
Product code: 1000381On order
Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.
Price on request
Data Network Analyzer Series EXFO MAX-800 was released in 2016. This series is positioned as a low-cost solution for basic testing in Ethernet, OTN, SDH/PDH networks with speeds up to 10.7 Gbps. The series consists of three models: EXFO MAX-860, MAX-860G and MAX-880, which differ in maximum speed (1G or 10G), as well as supported protocols (Ethernet only or Ethernet + OTN + SDH/PDH).
The analyzers of this series are ergonomically designed and equipped with a large, high-quality touch screen with a diagonal of 20.3 cm and a resolution of 1280 x 800. The large screen of the device makes it easy to configure tests and view measurement results. And with a fast processor and optimized embedded Windows Embedded 8 operating system, you can run tests and analyze results faster.
The EXFO MAX-800 analyzers are equipped with the latest computer interfaces: USB 3.0 and Gigabit Ethernet, and Wi-Fi and Bluetooth are also available as an inexpensive option. You can download a full description of all the characteristics below on this page in the section Documentation.
Ethernet analysis up to 1 Gbps (model MAX-860).
Ethernet analysis up to 10.3 Gbps (model MAX-860G).
Ethernet, SDH/PDH and OTN analysis up to 10.7 Gbps (MAX-880 model).
Designed for basic testing of Ethernet (LAN/WAN), SDH/PDH and OTN.
Standard tests: EtherSAM (Y.1564), RFC 2544, BERT, traffic generation.
Options: IPv6, MPLS, SDH (up to STM-64), OTN (up to OTU2), PDH, dual ports, pass-through.
Interfaces for connecting to a PC: USB, 1G Ethernet. Optional: WiFi, Bluetooth.
20.3 cm touchscreen (1280 x 800 resolution). Battery: Li-ion.
Weight: up to 2.6 kg. Dimensions: 210 x 254 x 66 mm. Working temperature: from 0°С to +50°С.
The most cost-effective solution for basic testing of networks up to 10.7 Gbps.
Need a modular analyzer for all types of networks up to 11.3 Gbps? Watch the series Anritsu MT1000A.
Need a compact modular platform for one or two slots? see model EXFO FTB-1v2 Pro.
Need a powerful modular four-slot platform? see model EXFO FTB-4 Pro.
Want to see the full list? Go to the main page for telecom test equipment.
Data network analyzers EXFO MAX-800 features excellent functionality and a well-thought-out, intuitive user interface. The configuration of all tests, their execution and analysis of the results are presented in the form of detailed and visual graphic elements. In such devices, the ergonomics of the user interface is very important for the efficient work of a specialist, since the volume of analyzed data is very large.
The figure below shows the main menu of the EXFO MAX-880. As you can see, all tests for Ethernet are collected on one screen (Y.1564/EtherSAM, RFC 2544, BERT, traffic generation and monitoring, etc.), as well as for transport networks OTN, SDH, PDH and others. After selecting any of these tests, the corresponding window will open on the device screen, in which all the main parameters of the test will already be configured and you can immediately start it. Of course, if necessary, you can change any of the standard test parameters.
ITU-T Y.1564 (EtherSAM) Standard - An Efficient Approach to Ethernet Testing
RFC 2544 has long been used as the primary means of testing Ethernet networks. However, RFC 2544 was originally created as a technique for testing network devices in a laboratory and is not well suited for testing modern services on real networks. One of the disadvantages is the long testing time and incomplete set of metrics.
To meet the new needs of the industry, several years ago the International Telecommunication Union (ITU) developed ITU-T Y.1564 standard, which has a number of important advantages over RFC 2544. For example, the ability to measure the main metrics of Service Level Agreement (SLA) and Quality-of-Service (QoS). At the same time, the total time required for measurements is significantly reduced. A detailed article is devoted to the description of this standard:
Even in the standard configuration, the EXFO MAX-800 series analyzers support both the classic RFC 2544 standard and the modern ITU-T Y.1564 standard (called EtherSAM in the instrument interface).
Main Design Features of the EXFO MAX-800 Series Analyzers
Analyzer Models EXFO MAX-860 and EXFO MAX-860G structurally the same. They contain one RJ45 port for connecting to Ethernet networks over twisted pair and two ports with SFP+ modules for connecting to Ethernet networks over fiber. The wavelength and distance of fiber transmission will depend on the type of SFP+ installed.
The MAX-860 supports 10Mbps to 1Gbps Ethernet testing in hardware and cannot test 10G. On the other hand, the MAX-860G hardware supports Ethernet testing from 10Mbps to 10.3Gbps (LAN/WAN).
The photo below shows all connectors on the MAX-860 and MAX-860G analyzers. In the upper part there are three connectors for connecting to the tested Ethernet network. In the lower part there are interfaces of the device for connecting to a computer via a local network, USB connectors and a slot for installing a micro SD card.
The EXFO MAX-880 analyzer model has four more connectors as it can also test OTN, SDH/PDH, SONET and other transport networks at speeds up to 10.7 Gbps. Connection to any networks via fiber is performed using the same two connectors with SFP + modules. The photo below shows what the connector panel of the EXFO MAX-880 analyzer looks like.
Specifications for EXFO MAX-800 Series Data Network Analyzers
This figure shows only the most important features of the EXFO MAX-800 series analyzers. A complete list of technical specifications takes up as many as 9 pages in small print. You can familiarize yourself with them by downloading the corresponding PDF file below on this page in the section Documentation.
Since it is not an easy task to independently select the model and the necessary set of options for a data network analyzer, it is better call us or write to us at Email and we will select the optimal device configuration for you.
EXFO MAX-800 Data Network Analyzer Package
|Ethernet analyzer from 10 Mbps to 1 Gbps
|Ethernet analyzer from 10 Mbps to 1 Gbps with the possibility of subsequent upgrade (purchase of a license file) to Ethernet 10.3 Gbps (LAN/WAN)
|Ethernet Analyzer 10 Mbps to 10.3 Gbps (LAN/WAN)
|Ethernet analyzer from 10 Mbps to 1 Gbps plus SDH up to 52 Mbps, upgradeable (purchase of license files) to Ethernet 10.3 Gbps (LAN/WAN), to SDH 9953 Mbps (STM- 64) and up to 10.7Gbps OTN (OTU2)
|Ethernet analyzer from 10 Mbps to 10.3 Gbps (LAN/WAN) plus SDH up to 52 Mbps, upgradeable (purchase of license files) to SDH 9953 Mbps (STM-64) and to OTN 10, 7 Gbps (OTU2)
|Power supply 90 W
|Li-Ion battery (installed inside the instrument)
|Quick reference guide (printed)
|User manual in English (electronic)
|1 year warranty (can be extended to 3 and 5 years)

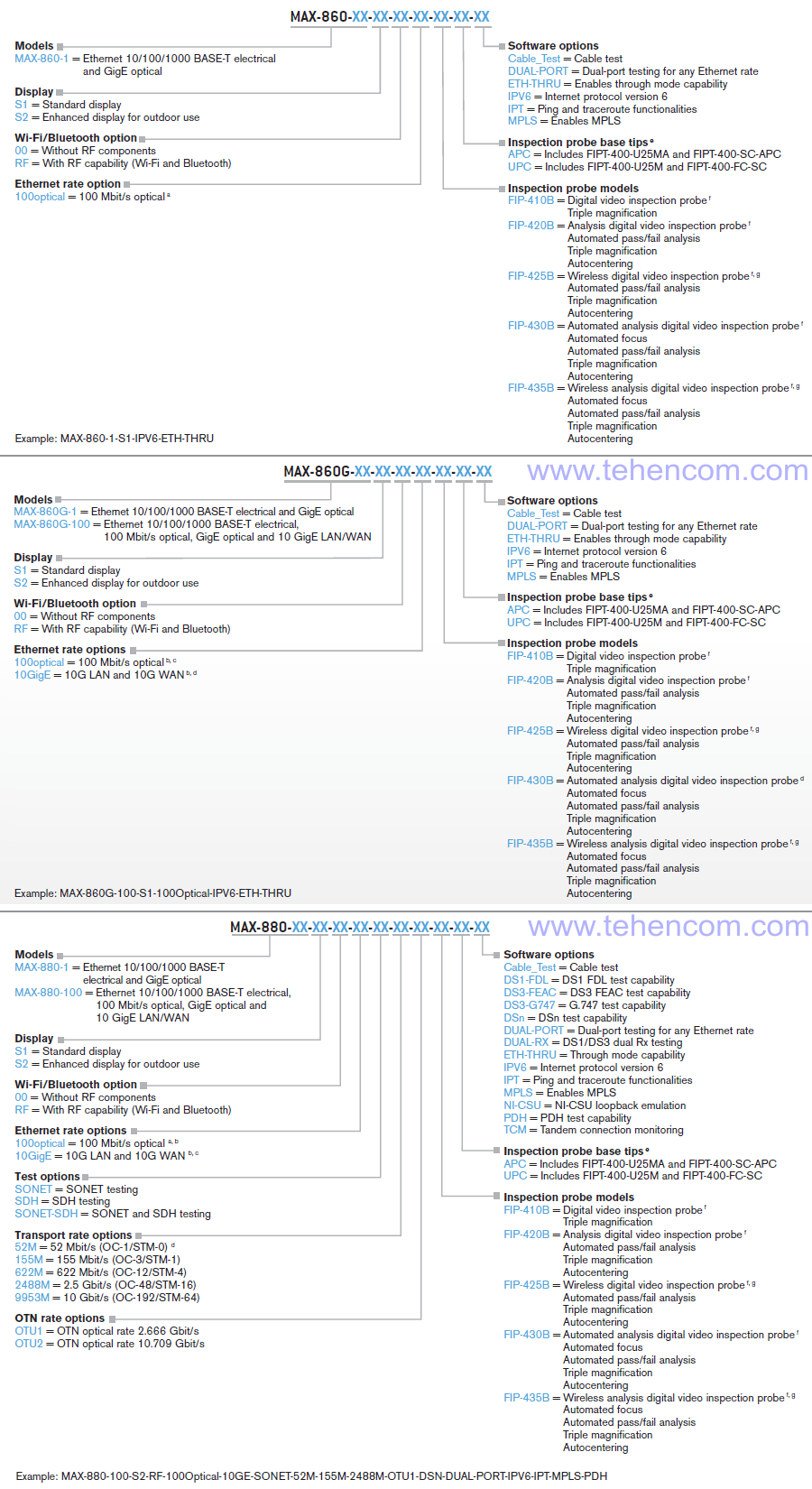

Key Options for EXFO MAX-800 Series Data Network Analyzers
The photo above shows the main options for the three models of the EXFO MAX-800 series analyzers. For detailed information on options and additional accessories for analyzers of this series, see below on this page in the section Documentation.
This PDF documentation contains the most comprehensive description of the EXFO MAX-800 Transport Network Analyzer Series features, specifications and modes of operation.
EXFO MAX-800 Analyzers User Manual (English) (245 pages; 8 MB)
EXFO MAX-800 Test Guide (English) (460 pages; 5 MB)
To simplify the process of choosing a telecommunications protocol analyzer, you can use our experience and recommendations. For this it's simple call us or write to us at Email and we will be happy to answer your questions.
