Keithley DMM7510 7.5 Digit Precision Laboratory Multimeter

Keithley DMM7510 - 7.5 Digit Graphical Laboratory Multimeter with Storage Oscilloscope Function

Product code: 1000688

On order

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request



SHORT DESCRIPTION

precision multimeter Keithley DMM7510 American company Keithley combines all the advantages of an accurate digital multimeter, a graphical touch screen, and a high-speed digitizer with a high-resolution ADC. Thus Keithley DMM7510 is the first of its kind graphic laboratory multimeter with storage oscilloscope function. The ability to digitize voltage and current signals greatly expands the capabilities and applications of this multimeter. And the large touch screen allows you to quickly view digitized waveforms with the ability to zoom in on any fragment.

Areas of use:
- general purpose precision laboratory multimeter
- metrological laboratories
- scientific research
- control of production processes
- development and debugging of precise low-frequency systems

Main characteristics:
Resolution: 7.5 digits.
Basic Accuracy (DCV): 0.0014%.
Voltage measurement range: 10 nV to 1010 V.
Current measurement range: 1 pA to 10.1 A.
Resistance measurement range: 0.1 μΩ to 1.2 GΩ.
Capacitance measurement range: 0.1pF to 1200uF.
Speed: 24,000 measurements per second. Connection of signals on the front and rear panels.
Speed digitization of voltage and current signals: 10 kSa/s to 1 MSa/s.
Digitization of voltage and current signals: from 12 bits to 18 bits.
15 types of measurements: DC and AC voltage and current,
resistance (2-wire and 4-wire, dry contact), capacitance, frequency, period, temperature (using thermocouples, thermistors and RTDs).
Free PC software and drivers LabVIEW, IVI.
12.7 cm widescreen touchscreen (800 x 480 resolution).
Interfaces: IEEE-488.2 (GPIB), Ethernet/LXI, USB, TSP-Link. Weight: 4.08 kg.
Accurate digital multimeter with touch control



DETAILED DESCRIPTION

The DMM7510 multimeter is a significant step forward in the development of the well-established line of laboratory multimeters from the American company Keithley (Keithley or Kisli). Three main features of the multimeter Keithley DMM7510 distinguish it from similar devices: high measurement accuracy (up to 0.0014%), built-in digitizer of voltage and current signals (up to 18 bits, up to 1 Msa/s), high-resolution color touch screen. In addition, the Keithley DMM7510 multimeter supports all modern interfaces to include it in an automated system: IEEE-488.2 (GPIB), Ethernet/LXI, USB, TSP-Link.



The Keithley DMM7510 multimeter contains a built-in high-resolution ADC digitizer

With the Keithley DMM7510 multimeter, it is very easy to digitize and process voltage and current signals (both DC and AC). The built-in digitizer is built on the basis of an ADC, which provides a digitization rate from 10 ksa/s to 1 Msa/s and a digitization bit from 12 bits to 18 bits (depending on the speed). To ensure excellent accuracy and dynamic measurement range, the built-in digitizer uses the same voltage and current sub-ranges as the main multimeter unit. To reduce the influence of the device on the object of measurement, the built-in digitizer uses the same input resistances as the main block of the multimeter: 10 GΩ or 10 MΩ (depending on the range).

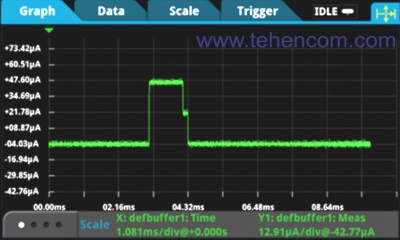

The Keithley DMM7510 high-speed digitizer reveals interesting details in voltage and current signals

High-speed digitizer reveals interesting details in voltage and current signals

You can set the criteria under which the input signal will be digitized and written to the Keithley DMM7510 memory

You can set the criteria under which the input signal will be digitized and stored in memory



The built-in digitizer of the Keithley DMM7510 multimeter does not just replace the function of a storage oscilloscope, but allows you to obtain waveforms that are very difficult or impossible to obtain with an oscilloscope: low voltages and currents, signals from sources with high output impedance, etc.

The Keithley DMM7510 multimeter allows you to display up to 4 separate signals on the screen
The Keithley DMM7510 multimeter allows you to display up to 4 separate waveforms on the screen.



Keithley DMM7510 multimeter can make 15 measurements

The Keithley DMM7510 multimeter is a versatile laboratory instrument that performs all the necessary measurements: DC and AC voltage and current, resistance (2-wire and 4-wire, dry contact), capacitance, frequency, period, temperature (using thermocouples, thermistors and RTDs). All types of measurements are carried out with very high accuracy and convenience.

Types of measurements and ranges of the measured values  of the Keithley DMM7510 multimeter
Types of measurements and ranges of the measured values of the Keithley DMM7510 multimeter.



Keithley DMM7510 widescreen touch screen 12.7 cm

One of the advantages of the Keithley DMM7510 multimeter is the 12.7 cm widescreen touch screen with a resolution of 800 x 480 pixels. Touch control and a well-thought-out menu system speed up and simplify the work of a specialist.

Keithley DMM7510 Multimeter's simple and thoughtful menu system speeds up and simplifies the work of a specialist
The Keithley DMM7510 multimeter's simple and thoughtful menu system speeds up and simplifies the work of a specialist.



Keithley DMM7510 Back Panel

The rear panel of the Keithley DMM7510 multimeter contains all the necessary connection connectors for integrating the multimeter into computer-controlled automated systems. Supported connectivity options: IEEE-488.2 (GPIB), Ethernet/LXI, USB, TSP-Link.

The back panel of the Keithley DMM7510 multimeter contains all the necessary connectors for integrating the multimeter into automated systems
The rear panel of the Keithley DMM7510 multimeter contains all the necessary connectors for integrating the multimeter into automated systems.



Keithley DMM7510 DC Multimeter Brief Specifications

Keithley DMM7510 DC Multimeter Brief Specifications

For a complete list of technical specifications of the Keithley DMM7510 multimeter for all types of measurements, see the section Documentation and also in this document:

Description and characteristics of the laboratory multimeter Keithley DMM7510 (in English) (18 pages; 1.1 MB)



Keithley DMM7510 Graphical Laboratory Multimeter Package Contents

Name Short description
Keithley DMM7510 Graphic laboratory multimeter (7.5 digits)
or
Keithley DMM7510-NFP Graphical laboratory multimeter (7.5 digits) without front panel
or
Keithley DMM7510-RACK Graphic Lab Multimeter (7.5 Digit) Rack Mount
or
Keithley DMM7510-NFP-RACK Graphical laboratory multimeter (7.5 digits) without front panel for rack mounting
1756 A set of wires for connecting to the measurement object
USB-B-1 USB cable, Type A - Type B, 1 meter
CA-180-3A TSP-Link/Ethernet cable
- CD with documentation
- Quick User Guide
- Software available for download at www.keithley.com: Test Script Builder, KickStart Startup, LabVIEW and IVI drivers
- 1 year warranty (can be extended to 3 and 5 years)

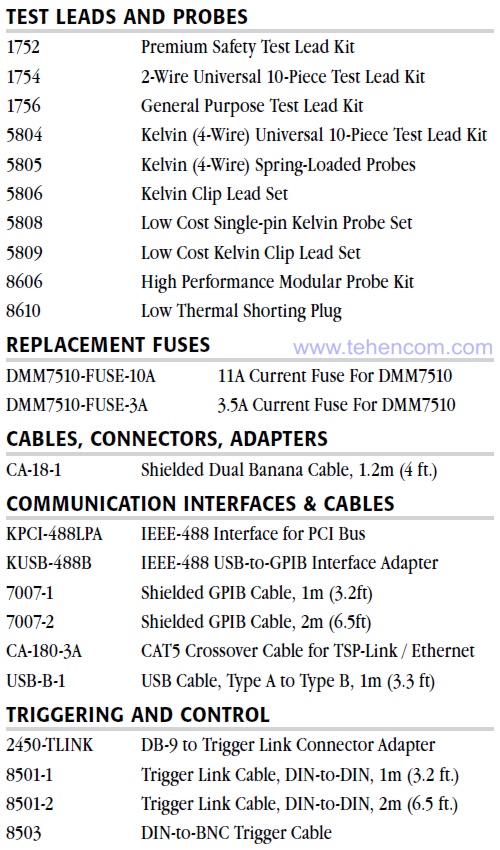

Keithley DMM7510 Graphical Laboratory Multimeter Options and Accessories

Keithley DMM7510 Graphical Laboratory Multimeter Options and Accessories

Description and characteristics of the laboratory multimeter Keithley DMM7510 (in English) (18 pages; 1.1 MB)

Keithley DMM7510 User Guide (English) (111 pages; 19 MB)
