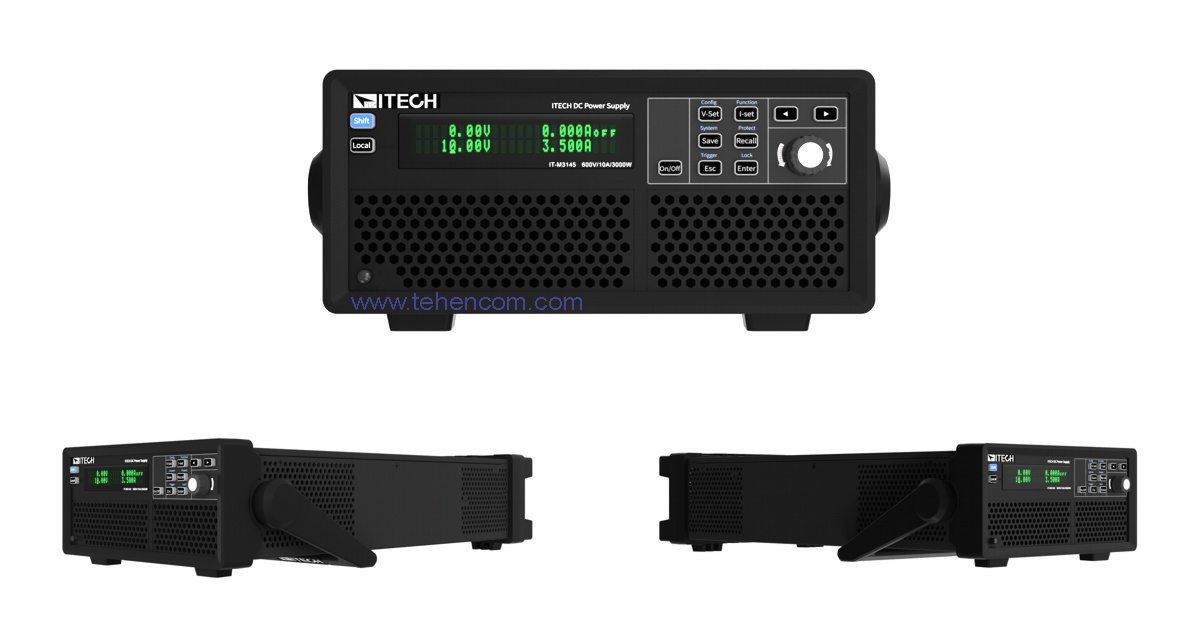

ITECH IT-M3140 series of programmable laboratory power supplies

ITECH IT-M3140 series of laboratory power supplies

Brief description of the series

The ITECH IT-M3140 series of laboratory power supplies are specially designed for testing, production, research laboratories and integration into automated complexes (ATE). The series includes models with voltages from 30 V to 1 200 V with a power of up to 1 850 W and up to 3 000 W. All of them can operate in three modes: constant current, constant voltage or constant power.

The ITECH IT-M3140 series models provide high accuracy and stability, fast response time (better than 1 ms), have a mode for changing the output voltage according to a list of values and all types of overload protection. Remote control is possible both with the help of a computer program, which is included in the delivery set, and with the help of standard SCPI commands. For detailed differences between the series models, see the interactive table. A full description of all the characteristics can be downloaded below on this page in the Documentation section.

All models of the series

The ITECH IT-M3140 series consists of fourteen models, which are presented in this interactive table. You can sort by any of the characteristics by simply clicking on its name in the table. To see all the characteristics of certain models, add them to the comparison.

Main characteristics of ITECH IT-M3140 series models
Model
Maximum output power (DC)
Maximum output voltage (DC)
Maximum output current (DC)
Number of channels (DC)
Voltage resolution (DC)
Current resolution (DC)
Operating principle
Weight
Top sales
IT-M3131E
1 850 W 30 V 150 A 1 1 mV 10 mA Switching 8 kg
Top sales
IT-M3132E
1 850 W 80 V 80 A 1 10 mV 10 mA Switching 8 kg
Top sales
IT-M3133E
1 850 W 150 V 40 A 1 10 mV 10 mA Switching 8 kg
IT-M3134E
1 850 W 300 V 20 A 1 10 mV 1 mA Switching 8 kg
IT-M3135E
1 850 W 600 V 10 A 1 10 mV 1 mA Switching 8 kg
IT-M3136E
1 850 W 1 000 V 6 A 1 100 mV 1 mA Switching 8 kg
IT-M3137E
1 850 W 1 200 V 5 A 1 100 mV 1 mA Switching 8 kg
IT-M3141
3 000 W 30 V 150 A 1 1 mV 10 mA Switching 8 kg
Expert's choice
IT-M3142
3 000 W 80 V 80 A 1 10 mV 10 mA Switching 8 kg
IT-M3143
3 000 W 150 V 40 A 1 10 mV 10 mA Switching 8 kg
IT-M3144
3 000 W 300 V 20 A 1 10 mV 1 mA Switching 8 kg
IT-M3145
3 000 W 600 V 10 A 1 10 mV 1 mA Switching 8 kg
IT-M3146
3 000 W 1 000 V 6 A 1 100 mV 1 mA Switching 8 kg
Expert's choice
IT-M3147
3 000 W 1 200 V 5 A 1 100 mV 1 mA Switching 8 kg

Software PV3140

The PC software included in the delivery set has powerful functions for monitoring and managing the ITECH IT-M3140 series laboratory power supplies. It allows you to perform fully automatic tests by executing command sequences. It is also very convenient to perform documentation by saving the results of measurements of the built-in multimeter and screenshots of tests. The main window of the PV3140 program is shown below. You can download it in the Documentation section.

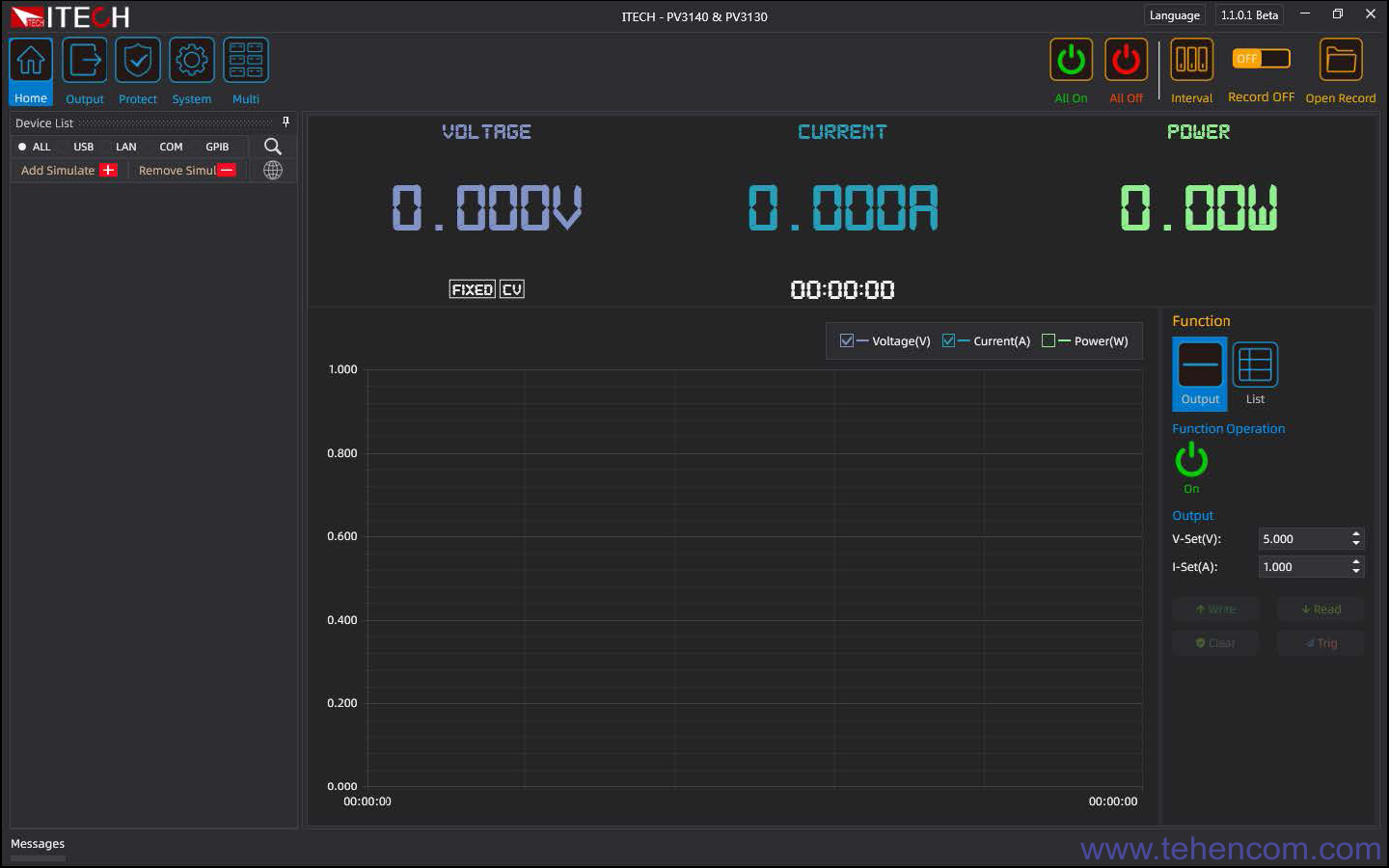

Screenshot of the main window of the ITECH PV3140 program
PV3140 software for controlling ITECH IT-M3140 series laboratory power supplies.

If it is necessary to include ITECH IT-M3140 series models in automated systems, their operation can be controlled using standard SCPI commands. The corresponding programming guide and driver for LabVIEW are located further on this page in the Documentation section.

Case design

The IT-M3140 series DC power supplies are made in a classic desktop case weighing 8 kg. The rear panel contains USB and Ethernet (LAN) interfaces, which can be used to connect the power supply to a computer. If necessary, GPIB (IEEE-488.2) or RS-232 interfaces can be added using the removable IT-E176 and IT-E177 communication modules. Also on the rear panel are output terminals for connecting the load. The appearance of the terminals of models with a maximum voltage of 30 V, 80 V and 150 V is shown in this photo. The terminals of models with a maximum voltage of more than 150 V have a different design for safe operation with high voltage.

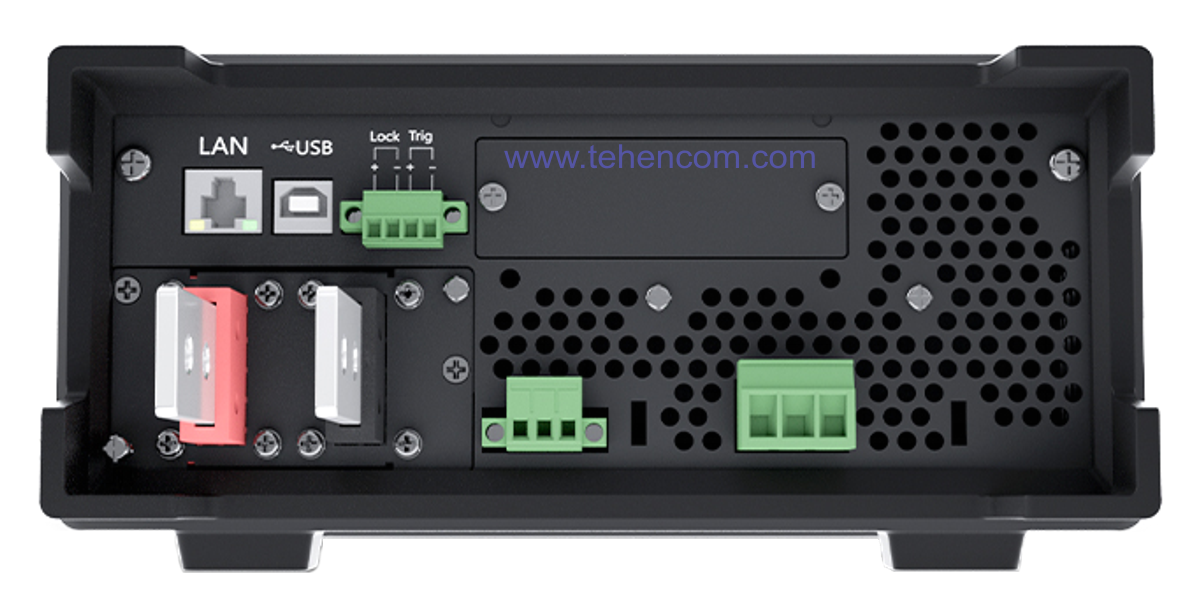

Rear panel of ITECH IT-M3140 series power supplies
Rear panel of ITECH IT-M3140 programmable laboratory power supplies with voltage of 30, 80 and 150 V.

Additional accessories

  • Pair of cables ITECH IT-E30320-YY, 2 m, 30 A, U type terminal - U type terminal
    ITECH IT-E30320-YY
    Product code: 9750020
    On order

    A pair of cables for power supplies and electronic loads. Length 2 meters, current up to 30 A, tips: U type terminal - U type terminal.

    From 1 722 UAH

  • Pair of cables ITECH IT-E30615-OO, 1.5 m, 60 A, ring terminals
    ITECH IT-E30615-OO
    Product code: 9750021
    On order Expert's choice

    A pair of cables for power supplies and electronic loads. Length 1.5 meters, current up to 60 A, tips: ring terminal - ring terminal.

    From 2 370 UAH

  • Pair of cables ITECH IT-E31220-OO, 2 m, 120 A, ring terminals
    ITECH IT-E31220-OO
    Product code: 9750022
    On order

    A pair of cables for power supplies and electronic loads. Length 2 meters, current up to 120 A, tips: ring terminal - ring terminal.

    From 9 462 UAH

  • Pair of cables ITECH IT-E32420-OO, 2 m, 240 A, ring terminals
    ITECH IT-E32420-OO
    Product code: 9750023
    On order

    A pair of cables for power supplies and electronic loads. Length 2 meters, current up to 240 A, tips: ring terminal - ring terminal.

    From 12 900 UAH
