Series of AC voltage and current sources up to 3000 VA ITECH IT7300
Product code: 1000574
Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.
Price on request
SHORT DESCRIPTION
Programmable Power Supplies ITECH IT7300 series - these are professional sources of alternating voltage and current with the possibility of flexible control of the amplitude and shape of the output signals. In manual or program control mode, it is possible to test the connected device in different operating modes: from ideal conditions to extremely unstable ones with voltage dips and surges, frequency drift, smooth decrease and increase, and others. And the built-in power meter allows you to significantly reduce costs, since there is no need to buy a second device to measure. You can download a full description of all the characteristics below on this page in the section Documentation.
Main characteristics:
Voltage: up to 300 V, current: up to 3 A, power: up to 300 VA (model IT7321).
Voltage: up to 300 V, current: up to 6 A, power:
up to 750 VA (model IT7322).
Voltage: up to 300 V, current: up to 12 A, power: up to 1 500 VA (model IT7324).
Voltage: up to 300 V, current: up to 24 A, power: up to 3,000 VA (model IT7326).
Number of phases: 1. Programmable output frequency: 45 Hz to 500 Hz.
Built-in meter that measures: voltage, current, peak current, frequency, power factor, active, reactive and apparent power.
Generation of voltage dips and frequency changes according to standards: IEC61000-4-11, IEC 61000-4-14, IEC 61000-4-28. Ability to simulate different modes of operation of the power supply network.
Programmable limits for limiting maximum current and voltage.
Function of simulation of work of TRIAC Dimmer.
Control of the start and end angle of the phase shift in the range from 0° to 360°.
Overload protection voltage, current, power and overheating.
Interfaces: USB, Ethernet, IEEE-488.2 (GPIB), RS-232.
Weight: 9.5 to 105 kg (depending on model). Working temperature: from 0°С to +40°С.
Wide range of built-in functions, manual and software control
Need compact source of alternating voltage and current? Watch the series ITECH IT-M7700.
Need power over 3 kVA and 3 phases? Watch the series ITECH IT7600.
Also, we recommend to see the full list of modern laboratory power supplies and detailed selection guide optimal laboratory power supply.
Video review of ITECH IT7300 AC voltage and current sources
This video overview shows the capabilities of the ITECH IT7300 Programmable AC Voltage and Current Series. The features of the series are demonstrated using the IT7322 model with a maximum power of 750 VA (Volt-Amps). After watching this video, you will get a good idea about the devices of this series, their technical characteristics and design features. Also in this video there is a demonstration of the generation of an alternating voltage with varying amplitude and frequency, while viewing the waveform of this signal on the oscilloscope screen.
DETAILED DESCRIPTION
Do you need an all-in-one AC voltage and current source with a built-in power meter that can generate pure sine wave outputs as well as distorted ones? Choose one of the four models of the series according to the maximum output power ITECH IT7300 and you will be able to carry out any kind of work on testing various devices. The ITECH IT7300 series includes four models: IT7321 (up to 300W), IT7322 (up to 750W), IT7324 (up to 1500W), IT7326 (up to 3000W). Below is a detailed description of the most interesting features of the sources in this series.
ITECH IT7300 Series Power Supply Management Software
Series AC power management ITECH IT7300 can be performed using the keys located on the front panel of the source, as well as using a convenient and functional computer program. When controlled using the program, on one screen you can simultaneously see all the information about the current operating mode of the source, as well as quickly change settings. Learn more about programmatic control options see here.
Simulation of different power supply modes using ITECH IT7300 sources
The IT7300 series provides powerful simulation functions for various non-standard power supply conditions. The STEP and PULSE modes allow you to change the output voltage and current once or repeatedly. The LIST mode extends these possibilities by allowing up to 100 different output changes. In addition, the ITECH IT7300 Series AC power supplies provide IEC 61000-4-11 pre-tests as well as full IEC 61000-4-14 and IEC 61000-4-28 tests.
Also, IT7300 series AC power supplies can generate spikes and dips in the output voltage. There are two modes for this: Surge and Trap.
Design of AC power sources ITECH IT7300
The IT7300 series contains 4 models with output power from 300W to 3000W. Accordingly, the weight and overall dimensions of different models of the series differ significantly. The lowest power model comes in a desktop case, while the three more powerful models can be desktop or rack mounted. More about high power laboratory power supplies see here.
IT7321 and IT7322 AC Power Supply Specifications

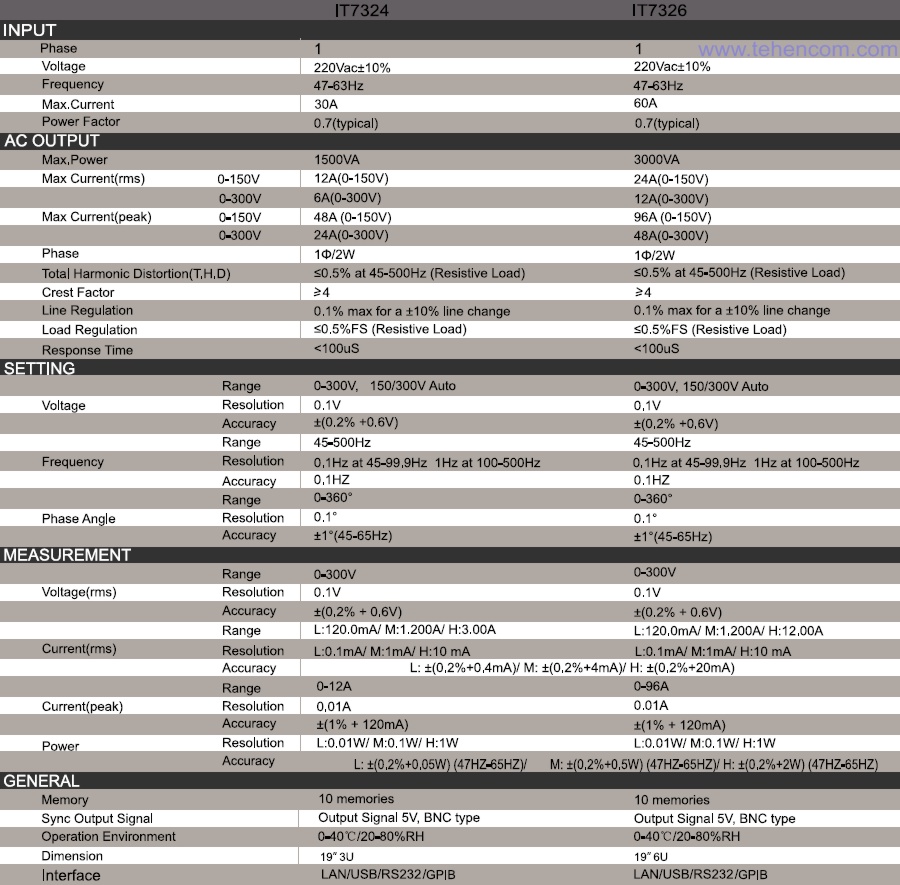

Specifications for IT7324 (up to 1.5kW) and IT7326 (up to 3kW) AC power supplies
ITECH IT7300 Series AC Power Supply Package
Name | Short description |
IT7321 | AC power supply (up to 300V, up to 3A, up to 300W) |
or | |
IT7322 | AC power supply (up to 300V, up to 6A, up to 750W) |
or | |
IT7324 | AC power supply (up to 300V, up to 12A, up to 1500W) |
or | |
IT7326 | AC power supply (up to 300V, up to 24A, up to 3000W) |
- | Power cable |
- | Calibration report |
- | User's manual |
- | 1 year warranty (can be extended to 3 and 5 years) |
Options and Accessories for ITECH IT7300 Series AC Power Supplies
The ITECH IT7300 series power supplies are built on an all-inclusive basis and do not provide additional options.
Documentation
This PDF documentation contains the most comprehensive description of the ITECH IT7300 series of programmable AC voltage and current sources, their technical characteristics and modes of operation.
ITECH IT7300 Series AC Power Supply Description (English) (5 pages; 1 MB)
ITECH IT7300 Series Source Manual (English) (46 pages; 2 MB)
