Alternating voltage and current source ITECH IT-M7721, 300 V, 3 A, 300 VA

Name: Alternating voltage and current source ITECH IT-M7721
Brand: ITECH Electronic
SKU: 3020043
Availability: BackOrder

Top sales

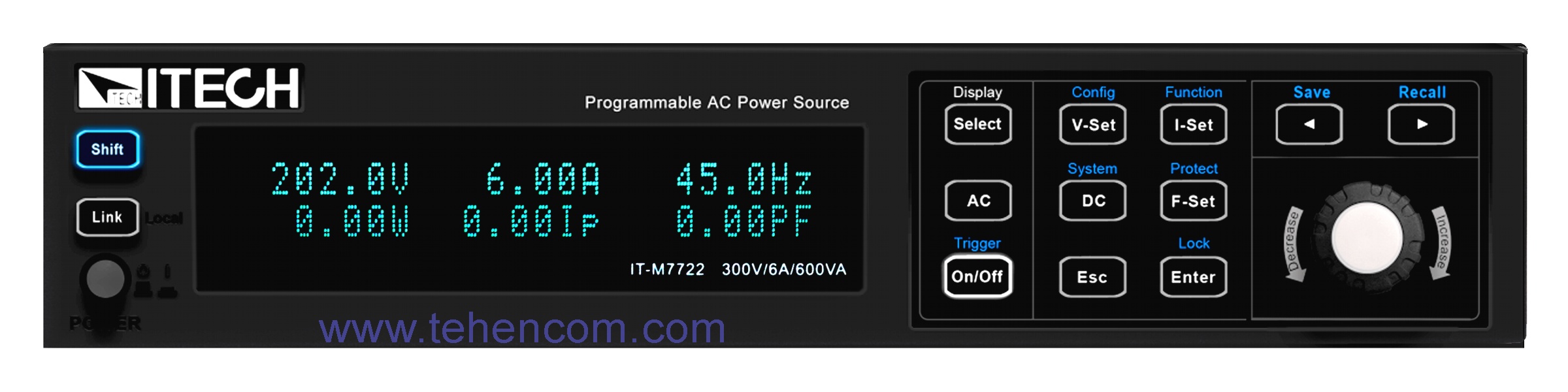

ITECH IT-M7700 series typical laboratory AC power supply

ITECH IT-M7700 series typical laboratory AC power supply (side view 1)

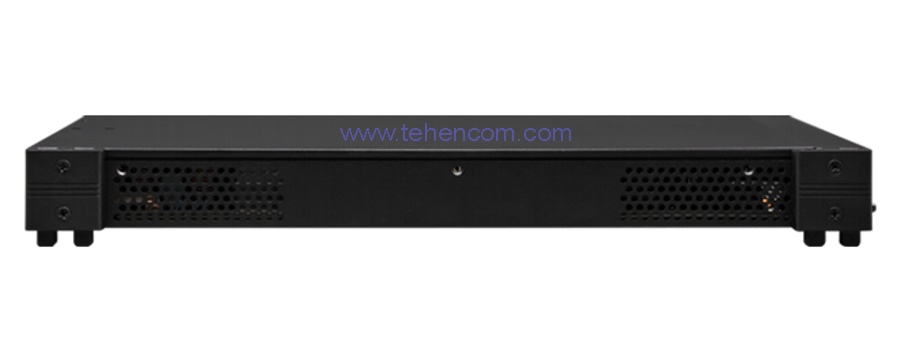

ITECH IT-M7700 series typical laboratory AC power supply (side view 2)

ITECH IT-M7700 series typical laboratory AC power supply (side view 3)

ITECH IT-M7700 series typical laboratory AC power supply (back view)

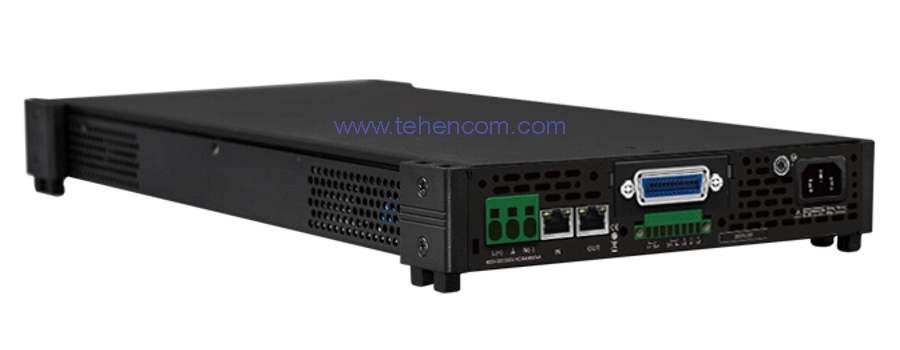

ITECH IT-M7700 series typical laboratory AC power supply (side view 4)

ITECH IT-M7700 series typical laboratory AC power supply (side view 5)

ITECH IT-M7700 series typical laboratory AC power supply (side view 6)

Case design of alternating current sources ITECH IT-M7700

Power network surges generation with ITECH IT-M7700

Power network dips generation with ITECH IT-M7700

PC software for remote control of ITECH IT-M7700

On order

Product code: 3020043

Price on request

Main characteristics

Manufacturer:

ITECH (Taiwan) Official representative
Category:

Laboratory power supplies
Series:

ITECH IT-M7700
Output voltage type:

Alternating current (AC)
Number of phases (AC):

1
Maximum output voltage (AC):

300 V (RMS)
Maximum output current (AC):

3 A (RMS)
Maximum output power (AC):

300 VA
Voltage resolution (AC):

100 mV (RMS)
Current resolution (AC):

0.1 mA (RMS)
Number of channels (DC):

1
Maximum output voltage (DC):

400 V
Maximum output current (DC):

3 A
Maximum output power (DC):

300 W
Operating principle:

Switching
4-wire sensing:

Yes
Protection modes:

Short circuit protection Current protection (OCP) Voltage protection (OVP, UVP) Power protection (OPP) Temperature protection (OTP)
Built-in devices:

Multimeter (DMM) Generator
Peculiarities:

Adjustable Stabilized High voltage Programmable
Connection to computer:

USB Ethernet (LAN) GPIB (IEEE-488.2) CAN RS-232 RS-485
Operating temperature:

From 0°С to +40°С
Width:

215 mm
Height:

44 mm
Depth:

450 mm
Weight:

5 kg

Product description

ITECH IT-M7721 is a compact single-phase AC voltage and current power source. It contains a built-in arbitrary waveform generator, which allows you to generate both pure sinusoidal signals and all kinds of distortions, including harmonics, surges, dips, complex noise, etc. In addition, it is possible to add a constant component to the output voltage (AC + DC mode).

The IT-M7721 AC power source can supply up to 300 Volts RMS at currents up to 3 Amps RMS and maximum apparent power up to 300 VA. The weight of the device is 5 kg with dimensions of 215 x 44 x 450 mm. Remote control can be performed using a free program or using the LabVIEW driver, which can be downloaded below on this page in the Documentation section. Model IT-M7721 is part of the ITECH IT-M7700 series.

For more information about this product, see the ITECH IT-M7700 series page

Contents of delivery

single-phase alternating voltage and current source ITECH IT-M7721 (1 pc.)
power cable (1 pc.)
user manual in electronic form
1 year warranty

Additional options

ITECH EMC Software

Product code: 9750009
Check availability

Software for electromagnetic compatibility (EMC) measurements in accordance with standards IEC 61000-4-11, IEC 61000-4-13, IEC 61000-4-14, etc.

Price on request
ITECH Avionics Software

Product code: 9750010
Check availability

Software for measurements according to aviation and ship standards RTCA DO-160D, MIL-STD-704F, ABD0100, Boeing 787B3-0147, MIL-STD-1399-300B, etc.

Price on request

Additional accessories

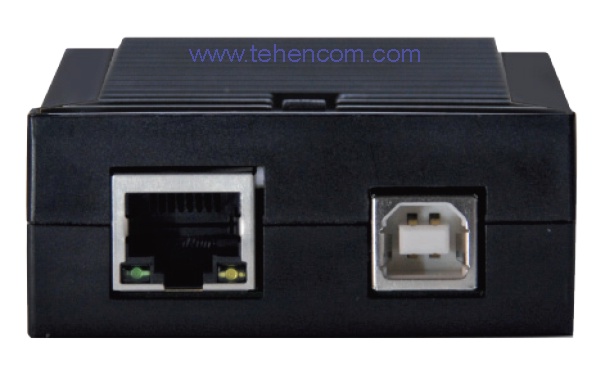

ITECH IT-E1206

Product code: 9750005
On order Expert choice

USB and LAN interfaces interchangeable module for power supplies and electronic loads of ITECH M series.

From 6 882 UAH
ITECH IT-E30110-BY

Product code: 9750003
On order Expert choice

A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - U type terminal.

From 2 154 UAH
ITECH IT-E30110-BB

Product code: 9750002
On order

A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - banana plug.

From 2 154 UAH
ITECH IT-E30110-AB

Product code: 9750001
On order

A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - alligator clip.

From 2 154 UAH

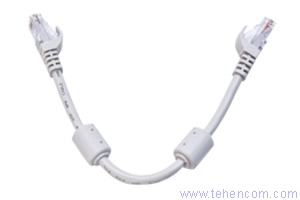

ITECH IT-E251

Product code: 9750011
On order

Communication cable for connecting power supplies and electronic loads of the ITECH M series to each other. Used for joint, synchronous operation of several devices.

Price on request

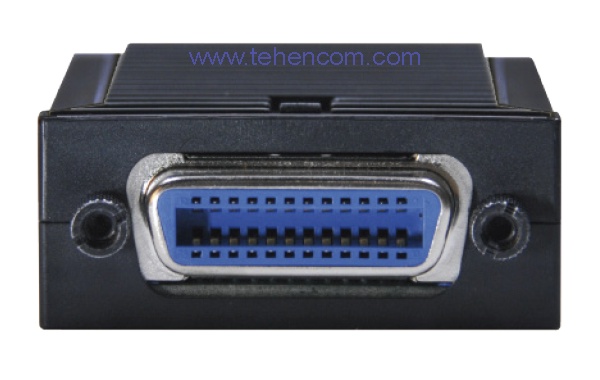

ITECH IT-E1205

Product code: 9750004
On order

GPIB interface interchangeable module for power supplies and electronic loads of ITECH M series.

From 8 172 UAH
ITECH IT-E1207

Product code: 9750006
On order

RS-232 and CAN interfaces interchangeable module for power supplies and electronic loads of ITECH M series.

From 5 592 UAH
ITECH IT-E1208

Product code: 9750007
On order

RS-485 interface and analog interface interchangeable module for power supplies and electronic loads of ITECH M series.

From 8 172 UAH

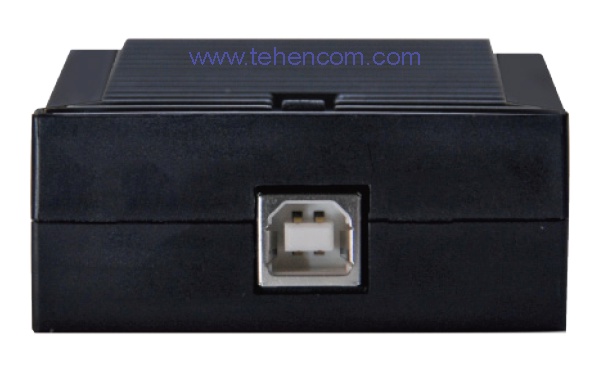

ITECH IT-E1209

Product code: 9750008
On order

USB interface interchangeable module for power supplies and electronic loads of ITECH M series.

From 4 086 UAH
