Simple laboratory power supply ITECH IT6721, 60 V, 8 A, 180 W

Name: Simple laboratory power supply ITECH IT6721
Brand: ITECH Electronic
SKU: 3020030
Price: 15804 UAH
Availability: PreSale

Top sales

ITECH IT6721 simple laboratory DC power supply

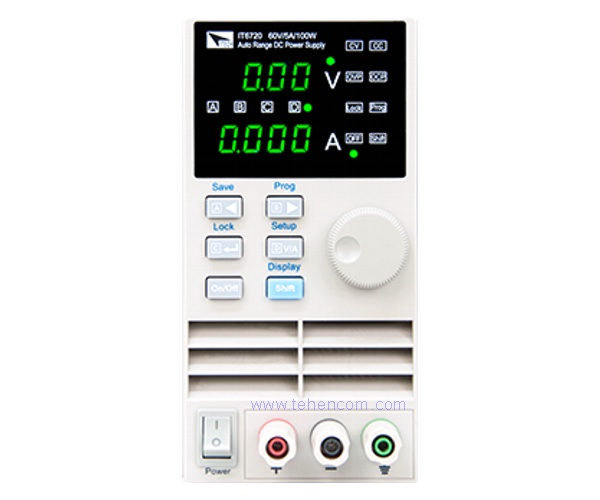

ITECH IT6700 series typical simple power supply (front view)

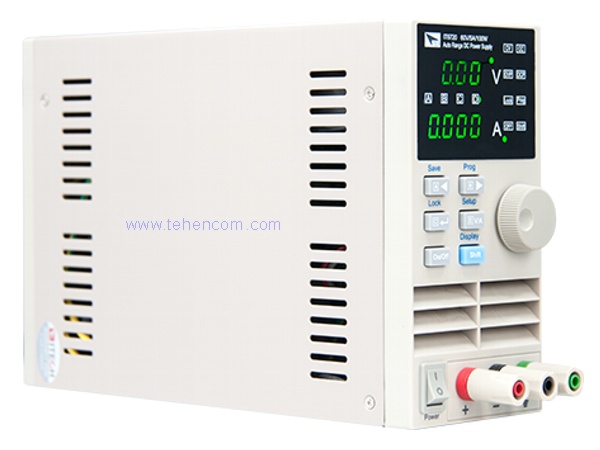

ITECH IT6700 series typical simple power supply (side view 1)

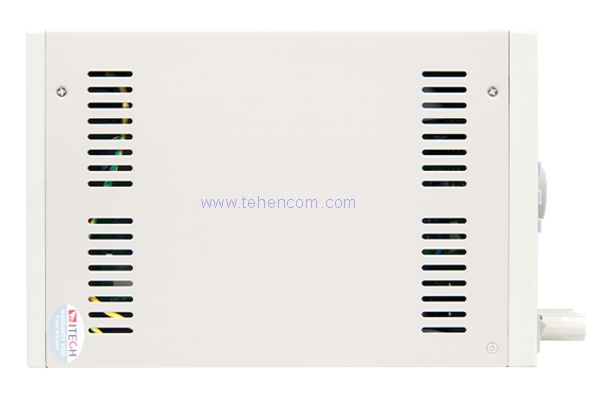

ITECH IT6700 series typical simple power supply (side view 2)

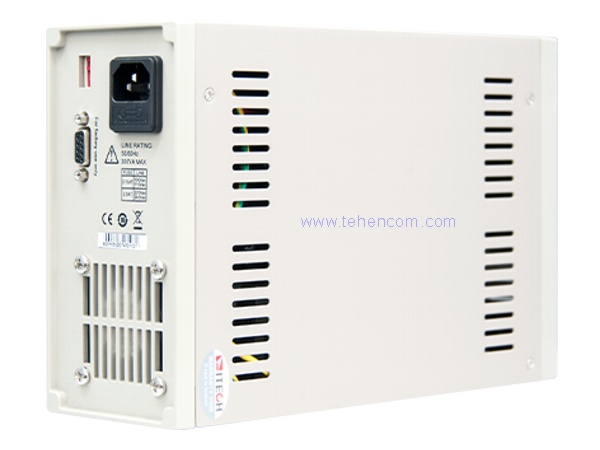

ITECH IT6700 series typical simple power supply (side view 3)

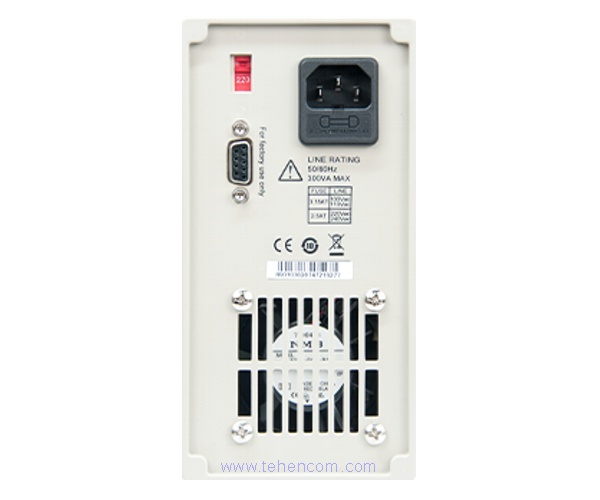

ITECH IT6700 series typical simple power supply (back view)

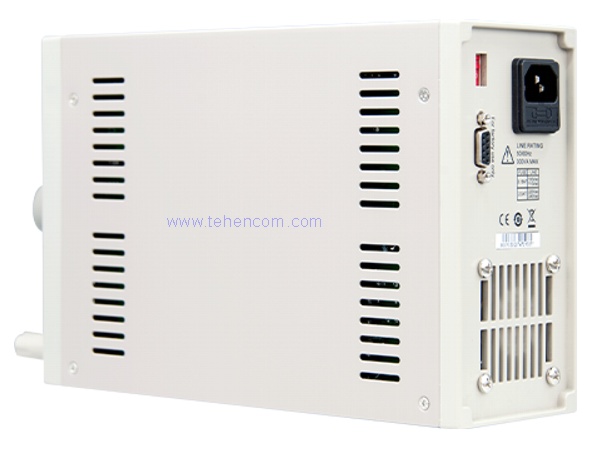

ITECH IT6700 series typical simple power supply (side view 4)

ITECH IT6700 series typical simple power supply (side view 5)

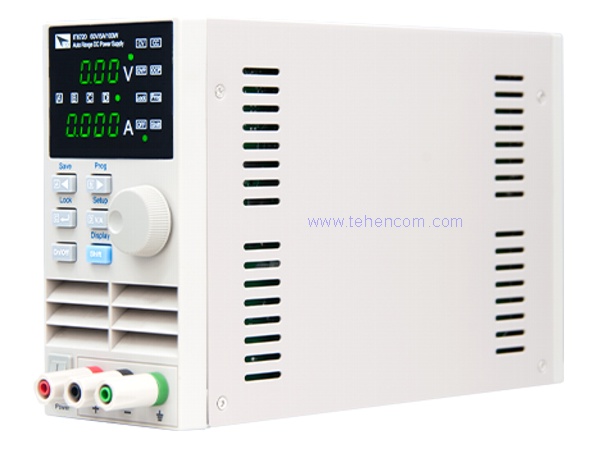

ITECH IT6700 series typical simple power supply (side view 6)

Coming soon

Product code: 3020030

15 804 UAH

Main characteristics

Manufacturer:

ITECH (Taiwan) Official representative
Category:

Laboratory power supplies
Series:

ITECH IT6700
Output voltage type:

Direct current (DC)
Number of channels (DC):

1
Maximum output voltage (DC):

60 V
Maximum output current (DC):

8 A
Maximum output power (DC):

180 W
Voltage resolution (DC):

10 mV
Current resolution (DC):

1 mA
Operating principle:

Switching
4-wire sensing:

No
Protection modes:

Short circuit protection, Current protection (OCP), Voltage protection (OVP, UVP), Temperature protection (OTP)
Built-in devices:

Multimeter (DMM)
Peculiarities:

Adjustable, Stabilized
Connection to computer:

Without connection
Operating temperature:

From 0°С to +40°С
Width:

88 mm
Height:

175 mm
Depth:

282 mm
Weight:

3.5 kg

Product description

ITECH IT6721 is a simple switching laboratory DC power supply with an output voltage of up to 60 Volts, a current of up to 8 Amps and a power of up to 180 Watts. The voltage step is 10 mV, and the current is 1 mA. Low ripple and noise (2.5 mV RMS). There is automatic protection against overvoltage, overcurrent and overheating.

The laboratory power supply provides only manual control, without the possibility of connecting to a computer. Contains an accurate multimeter that measures the actual values of the output current and voltage. Model IT6721 is part of the ITECH IT6700 series.

For more information about this product, see the ITECH IT6700 series page

Contents of delivery

simple laboratory power supply ITECH IT6721 (1 pc.)
power cable (1 pc.)
user manual in electronic form
1 year warranty
