ITECH IT-N6900 series of universal laboratory power supplies

Expert's choice
ITECH IT-N6900 series of laboratory power supplies

Brief description of the series

The ITECH IT-N6900 series laboratory power supplies are a universal solution for a wide range of tasks. They provide stable output voltage (up to 60 V or up to 150 V) with low pulsation and noise (less than 5 mV RMS). The power supplies are equipped with all types of protection (from overcurrent, overvoltage, overpower and overheating), support manual and software control, have a mode for changing the output voltage according to a list of values, contain a built-in multimeter and a data logger.

The ITECH IT-N6900 series models are equipped with a high-quality graphic display. USB and LAN interfaces are used for connection to a computer (RS-232 and GPIB are also available). Remote control is possible both with the help of a computer program, which is included in the delivery set, and with the help of standard SCPI commands. For detailed differences between the series models, see the interactive table. A complete description of all characteristics, as well as the computer program and driver for LabVIEW can be downloaded below on this page in the Documentation section.

All models of the series

The ITECH IT-N6900 series consists of four models, which are presented in this interactive table. You can sort by any of the characteristics by simply clicking on its name in the table. To see all the characteristics of certain models, add them to the comparison.

Main characteristics of ITECH IT-N6900 series models
Model
Maximum output power (DC)
Maximum output voltage (DC)
Maximum output current (DC)
Number of channels (DC)
Voltage resolution (DC)
Current resolution (DC)
4-wire sensing
Weight
Top sales
Expert's choice
IT-N6952
850 W 60 V 25 A 1 1 mV 1 mA Yes 7.6 kg
IT-N6962
1 500 W 60 V 25 A 1 1 mV 1 mA Yes 7.6 kg
Expert's choice
IT-N6953
850 W 150 V 10 A 1 10 mV 1 mA Yes 7.6 kg
IT-N6963
1 500 W 150 V 10 A 1 10 mV 1 mA Yes 7.6 kg

Software PV-N6900

The PC software included in the delivery set has powerful functions for monitoring and managing the ITECH IT-N6900 series laboratory power supplies. It allows you to perform fully automatic tests by executing command sequences. It is also very convenient to perform documentation by saving the results of measurements of the built-in multimeter and screenshots of tests. The main window of the PV-N6900 program is shown below. You can download it in the Documentation section.

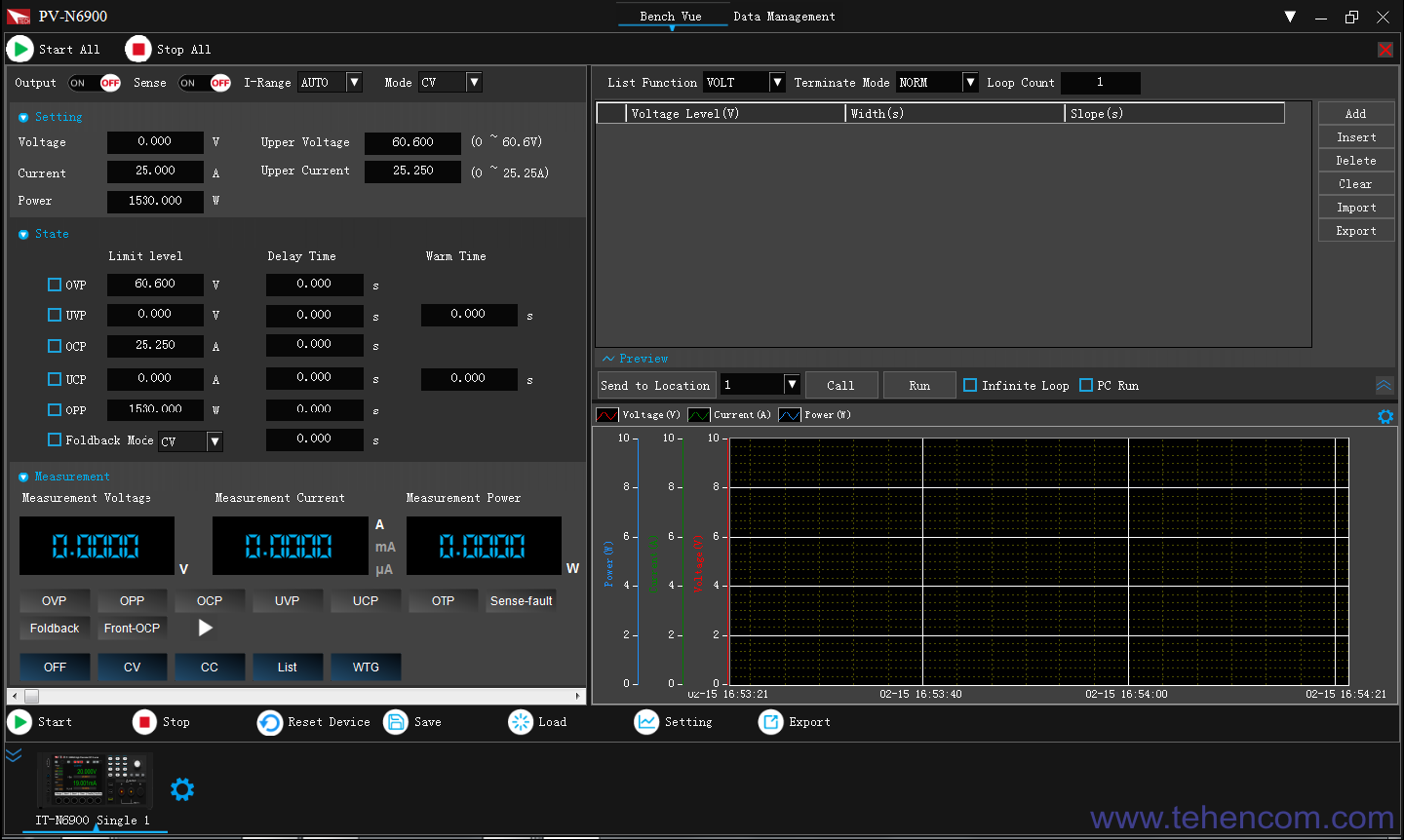

Screenshot of the main window of the ITECH PV-N6900 program
PV-N6900 software for controlling ITECH IT-N6900 series laboratory power supplies.

If it is necessary to include ITECH IT-N6900 series models in automated systems, their operation can be controlled using standard SCPI commands. The corresponding programming guide and driver for LabVIEW are located further on this page in the Documentation section.

Case design

The IT-N6900 series DC power supplies are made in a classic desktop case weighing 7.6 kg and measuring 255 × 108 × 530 mm. The front panel contains a graphic display, control buttons, and terminals for connecting the load. The terminals on the front panel are designed for a maximum current of 10 A. For currents up to 25 A, the terminals on the rear panel are used.

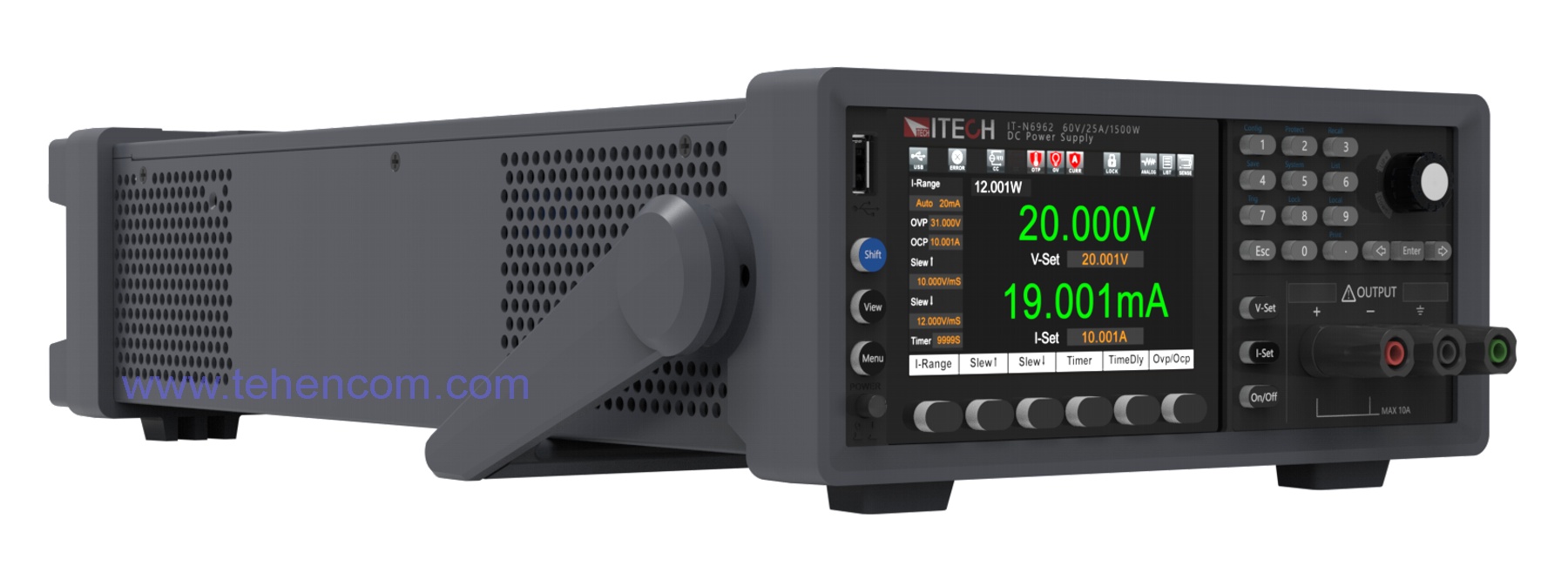

Appearance of laboratory power supplies of the ITECH IT-N6900 series
Case design of the ITECH IT-N6900 series universal laboratory power supplies.

The rear panel contains USB and Ethernet (LAN) interfaces, which can be used to connect the power supply to a computer. If necessary, GPIB (IEEE-488.2) or RS-232 interfaces can be added using the removable IT-E176 and IT-E177 communication modules. The rear panel also contains output terminals with a current of up to 25 A (left green connector) and a connector for connecting to a load using a 4-wire sensing (right green connector SENSE).

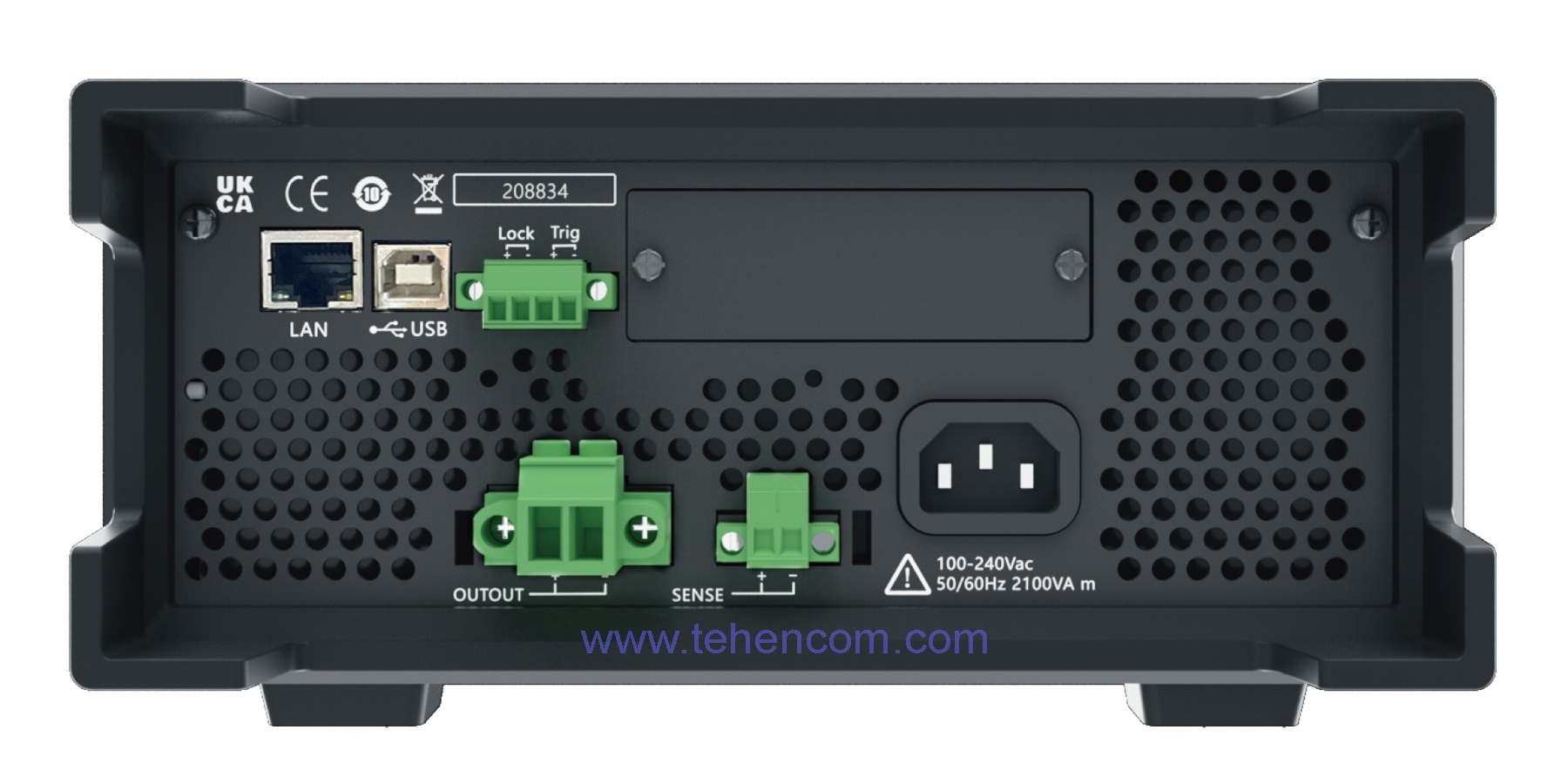

Rear panel of ITECH IT-N6900 series power supplies
Rear panel of the ITECH IT-N6900 series universal laboratory power supplies.

Additional accessories

  • Pair of cables ITECH IT-E30110-BY, 1 m, 10 A, banana plug - U type terminal
    ITECH IT-E30110-BY
    Product code: 9750003
    On order Expert's choice

    A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - U type terminal.

    From 2 154 UAH

  • Pair of cables ITECH IT-E30110-BB, 1 m, 10 A, banana plug - banana plug
    ITECH IT-E30110-BB
    Product code: 9750002
    On order

    A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - banana plug.

    From 2 154 UAH

  • Pair of cables ITECH IT-E30110-AB, 1 m, 10 A, banana plug - alligator clip
    ITECH IT-E30110-AB
    Product code: 9750001
    On order

    A pair of cables for power supplies and electronic loads. Length 1 meter, current up to 10 A, tips: banana plug - alligator clip.

    From 2 154 UAH

  • Pair of cables ITECH IT-E30320-YY, 2 m, 30 A, U type terminal - U type terminal
    ITECH IT-E30320-YY
    Product code: 9750020
    On order

    A pair of cables for power supplies and electronic loads. Length 2 meters, current up to 30 A, tips: U type terminal - U type terminal.

    From 1 722 UAH

Documentation and useful materials
