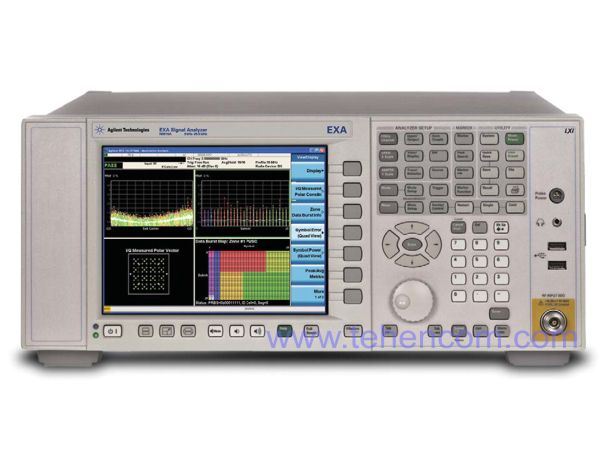

Agilent EXA N9010A series of laboratory spectrum analyzers up to 26.5 GHz

Agilent EXA N9010A – spectrum analyzers (9 kHz – 3.6; 7.0; 13.6 or 26.5 GHz)

Product code: 1000964

Not available Discontinued

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Out of production. Recommended replacement: Anritsu MS2830A


The Agilent EXA N9010A delivers some of the best performance in any economy class analyzer:
- 30 to 300% faster than other economy class signal and spectrum analyzers
- 4 ms marker maximum search -
11.4 ms setup, measurement and transmission via GPIB
- Measurement mode switching speed - +13 dBm TOI (3rd order intercept)
- -146 dBm/Hz DANL (average self-noise)
- Absolute level error 0.3 dB



Agilent EXA N9010A advanced user interface

- Comprehensive help file built into EXA

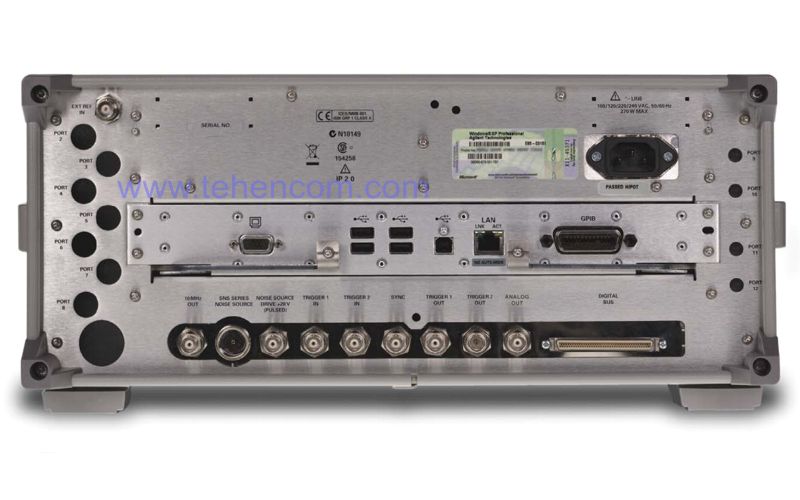

- USB 2.0, 100bT LAN and GPIB
- LXI class-C compliant, embedded web server
- Windows XP Professional open operating system



The Agilent EXA N9010A Analyzer's Comprehensive Measurement Capabilities

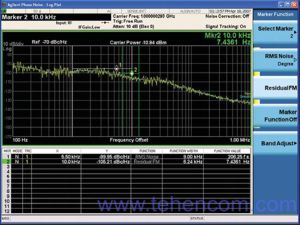

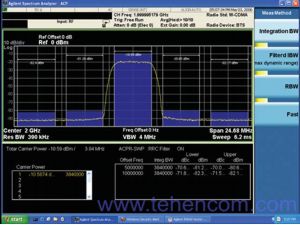

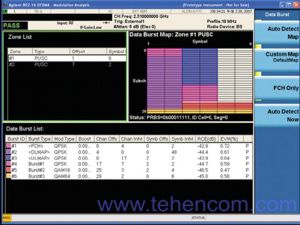

- Spectrum analysis, Mobile WiMAXTM, W-CDMA, HSDPA/HSUPA and phase noise

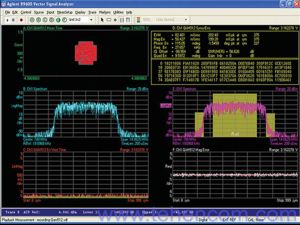

- Work with popular 89601A VSA software

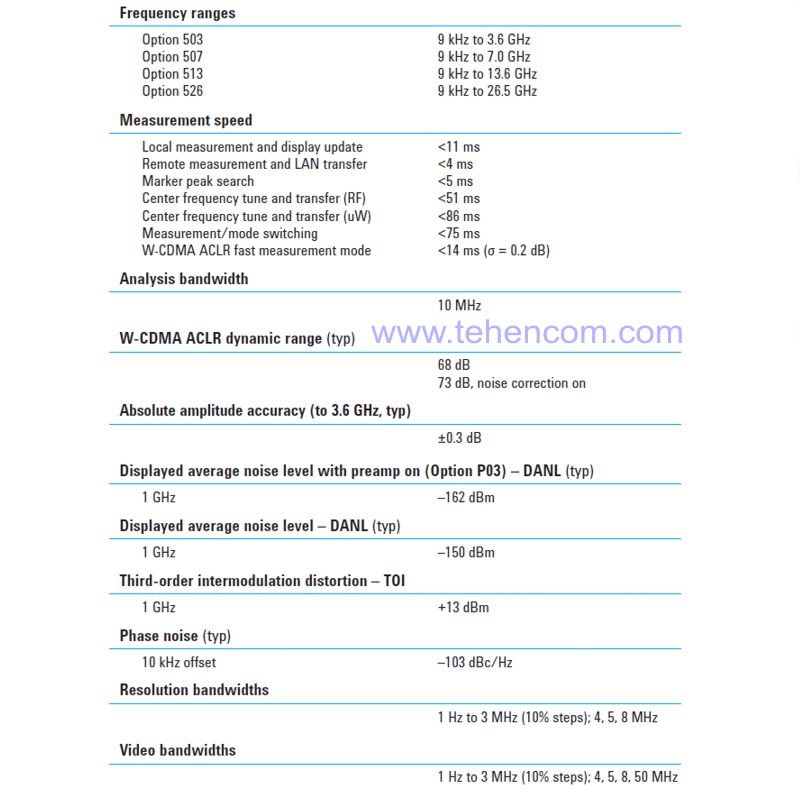

Agilent EXA N9010A Spectrum Analyzer Brief Specifications

Agilent EXA N9010A Spectrum Analyzer Brief Specifications


Agilent N9010A-503 - up to 3.6 GHz
Agilent N9010A-507 - up to 7 GHz
Agilent N9010A-513 - up to 13.6 GHz
Agilent N9010A-526 - up to 26.5 GHz


1 year. It is possible to extend the warranty period up to 3 years.

Agilent EXA N9010A analyzers are discontinued. See all new models here: spectrum analyzers.
