Spectrum and electromagnetic interference analyzer Tekbox TBMR-110M

Spectrum and electromagnetic interference analyzer Tekbox TBMR-110M
On order

Product code: 1020015

From 322 074 UAH

Main characteristics

  • Category:
  • Spectrum analysis:
    1 Hz – 110 MHz
  • Spectrum analyzer type:
    Swept-tuned
  • Maximum amplitude:
    +30 dBm
  • Average noise DANL:
    -162 dBm
  • Operating temperature:
    From 0°С to +40°С
  • Width:
    380 mm
  • Height:
    120 mm
  • Depth:
    330 mm
  • Weight:
    5.2 kg

Product description

Tekbox TBMR-110M is a multifunctional analyzer that combines five measuring devices: a spectrum analyzer, an electromagnetic interference analyzer, a noise analyzer, a tracking generator and an oscilloscope. Tekbox TBMR-110M is ideal for studying signals with a frequency from 1 Hz to 110 MHz. It can be used to conduct preliminary EMC tests, solve technical information protection tasks and perform a comprehensive analysis of electromagnetic signals down to a frequency of 1 Hz.

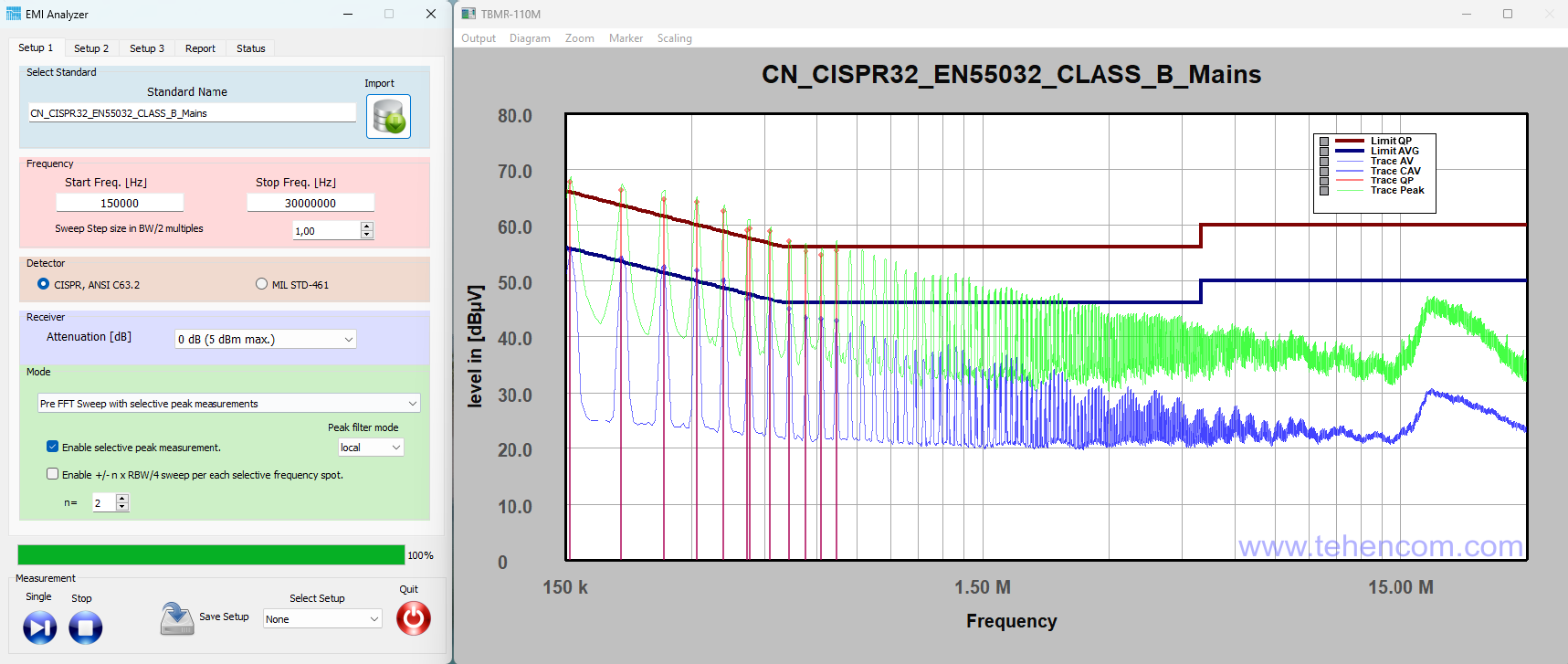

The Tekbox TBMR-110M comes with software that makes it easy to control the device, take measurements, and document the results. Below is a screenshot of the software in EMI analyzer mode. It shows the result of a conducted emissions measurement according to CISPR 32 Class B. This test took about 20 seconds.

Tekbox TBMR-110M in EMI analyzer mode
Tekbox TBMR-110M in electromagnetic interference analyzer mode.

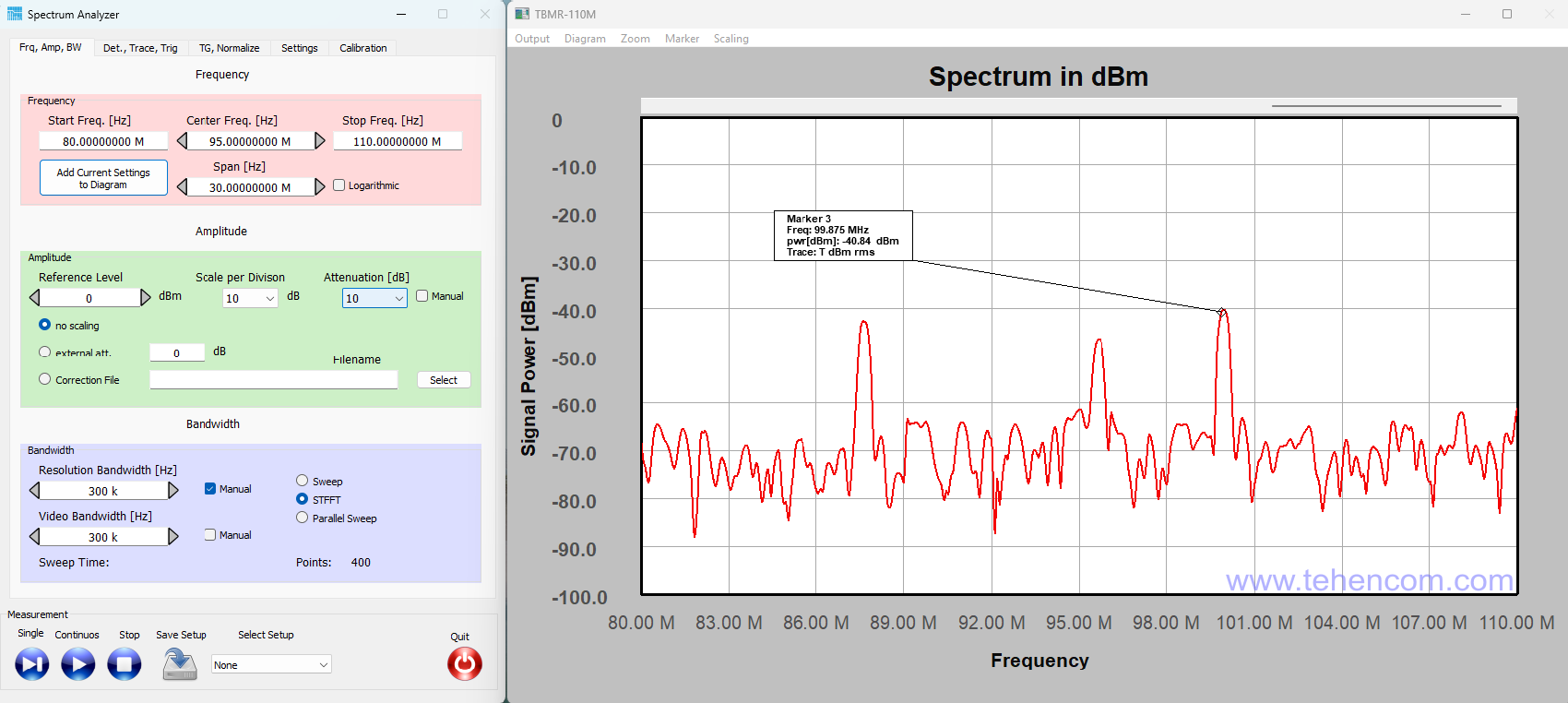

In spectrum analyzer mode, the Tekbox TBMR-110M provides a full set of standard RF measurements, plus additional capabilities important for low frequency measurements. Below is a screenshot of the software with a signal spectrum from 80 MHz to 110 MHz and one measurement marker activated.

Tekbox TBMR-110M in spectrum analyzer mode
Tekbox TBMR-110M in spectrum analyzer mode.
