Aaronia SPECTRAN V6 ECO series of USB spectrum analyzers up to 18 GHz
Brief description of the series
The Aaronia SPECTRAN V6 ECO series are low-cost real-time USB spectrum analyzers with an excellent price-performance ratio. This series includes models up to 6 GHz, expandable to 7.25 GHz, and models up to 18 GHz. Two models in the series include a built-in high-frequency generator, and one model contains two high-frequency inputs. The real-time analysis bandwidth is 44 MHz or 60 MHz. Separately, it is worth noting the high scanning speed of 500 GHz/s with the possibility of increasing to 3 000 GHz/s.
The Aaronia SPECTRAN V6 ECO series includes 5 models. To connect them to a computer, a high-speed USB 3.2 Type-C PD 3.0 interface is used. The analyzers are powered via the same USB interface. Remote control and processing of results is carried out using the powerful Aaronia RTSA-Suite PRO computer program, which is included in the delivery package. For detailed differences between the series models, see the interactive table. A full description of all the characteristics can be downloaded below on this page in the Documentation section.
All models of the series
The Aaronia SPECTRAN V6 ECO series consists of five models, which are presented in this interactive table. To see all the characteristics of certain models, add them to the comparison.
Model |
Maximum frequency
|
Minimum frequency
|
Real-time analysis bandwidth
|
Signal analysis bandwidth
|
RF signal generation
|
Weight
|
---|---|---|---|---|---|---|
Novelty
Top sales
|
6 GHz, 7.25 GHz | 9 kHz | 44 MHz | 44 MHz | — | 0.85 kg |
Novelty
|
6 GHz, 7.25 GHz | 9 kHz | 44 MHz | 44 MHz | 1 MHz – 6 GHz, 1 MHz – 7.25 GHz | 0.85 kg |
Novelty
Expert selection
|
6 GHz, 7.25 GHz | 9 kHz | 44 MHz, 88 MHz | 44 MHz | — | 0.85 kg |
Novelty
Expert selection
|
18 GHz | 9 kHz | 60 MHz | 60 MHz | — | 0.85 kg |
Novelty
|
18 GHz | 9 kHz | 60 MHz | 60 MHz | 1 MHz – 18 GHz | 0.85 kg |
Software Aaronia RTSA-Suite PRO
Each SPECTRAN V6 ECO spectrum analyzer comes with powerful Aaronia RTSA-Suite PRO software for processing and visualizing measurement results. This program is built on a modular principle and contains dozens of free modules (blocks) for most practical tasks.
In addition to free modules, many paid modules have been developed for the RTSA-Suite PRO program that solve specialized tasks, such as intermodulation analysis or demodulation of LTE cellular signals. The Aaronia RTSA-Suite PRO software and its description can be downloaded below on this page in the Documentation section.
Case design
Structurally, all models of Aaronia SPECTRAN V6 ECO spectrum analyzers are compact devices weighing 850 grams without a display or buttons. Analyzers are powered, controlled and data transferred via a high-speed USB 3.2 Type-C PD 3.0 interface.
This photo shows the front panel of the V6 ECO 150XA-6 as an example. There are two SMA(f) type RF connectors located on it. The connector labeled Rx is the spectrum analyzer input up to 6 GHz (expandable to 7.25 GHz) and 44 MHz real-time analysis bandwidth. The connector labeled Tx is the output of a vector signal generator up to 6 (7.25) GHz with a modulation bandwidth of 44 MHz and power up to +10 dBm.
On the rear panel of this model there are four SMB(f) connectors: 10 MHz reference input (REF 10MHz), trigger input/output (TRG 3,3V), PPM signal input/output (PPM 3,3V) and GPS signal input with power supply to an external GPS antenna (GPS ACT 3,3V). Also on the rear panel there is a USB connector for data transfer and power (USB-PD).
Additional accessories
-
Directional log periodic antenna. Frequency range from 680 MHz to 18 GHz. Typical gain 5 dBi. Connector SMA(f). Dimensions: 340 x 200 x 25 mm. Weight 250 grams.
From 94 602 UAH
-
Directional log periodic antenna. Frequency range from 680 MHz to 8 GHz. Typical gain 5 dBi. Connector SMA(f). Dimensions: 340 x 200 x 25 mm. Weight 250 grams.
From 41 802 UAH
-
Directional log periodic antenna. Frequency range from 700 MHz to 6 GHz. Typical gain 5 dBi. Connector SMA(f). Dimensions: 340 x 200 x 25 mm. Weight 270 grams.
From 28 602 UAH
-

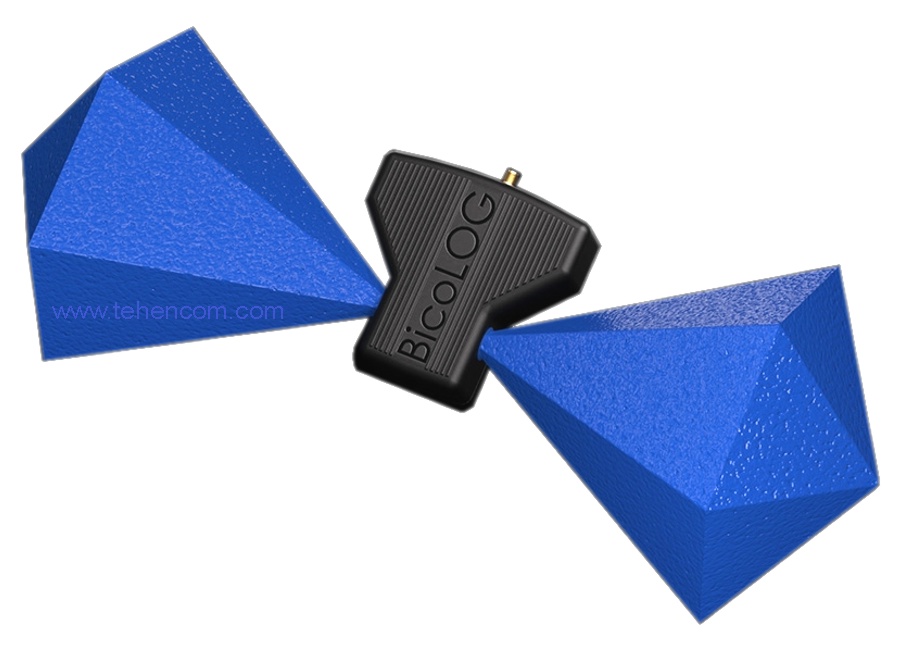

Directional biconical antenna. Frequency range from 20 MHz to 3 GHz. Typical gain from -38 dBi to 1 dBi. Connector SMA(f). Dimensions: 350 x 160 x 140 mm. Weight 350 grams.
From 123 204 UAH
-
Directional biconical antenna. Frequency range from 30 MHz to 1 GHz. Typical gain from -39 dBi to 1 dBi. Connector SMA(f). Dimensions: 350 x 160 x 140 mm. Weight 350 grams.
From 46 200 UAH
-
Directional passive loop antenna for magnetic field. Frequency range from 9 kHz to 400 MHz. Maximum gain -60 dBi. Connector SMA(f). Dimensions: 180 x 180 x 50 mm. Weight 180 grams.
From 39 600 UAH
-
Directional active loop antenna for magnetic field. Frequency range from 500 kHz to 400 MHz. Maximum gain -20 dBi. Connector SMA(f). Dimensions: 180 x 180 x 85 mm. Weight 360 grams.
From 99 000 UAH
-
Aaronia 501/006On order Top sales
High frequency cable. Connectors SMA(m) – SMA(m). Length 1 meter. Up to 6 GHz, 50 Ohm. Attenuation at 6 GHz: 3 dB/m. Maximum VSWR at 6 GHz: 1.3. Convenient plastic nuts.
From 1 896 UAH
-
Aaronia 501/053On order Expert selection
High frequency cable. Connectors SMA(m) – SMA(m). Length 2 meters. Up to 26 GHz, 50 Ohm. Attenuation 2.6 dB/m. Maximum VSWR at 6 GHz: 1.1. Convenient plastic nuts.
From 7 920 UAH
-
Aaronia 501/054On order
High frequency cable. Connectors SMA(m) – SMA(m). Length 5 meters. Up to 26 GHz, 50 Ohm. Attenuation 2.6 dB/m. Maximum VSWR at 6 GHz: 1.1. Convenient plastic nuts.
From 11 442 UAH
-
Aaronia 501/055On order
High frequency cable. Connectors SMA(m) – SMA(m). Length 10 meters. Up to 26 GHz, 50 Ohm. Attenuation 2.6 dB/m. Maximum VSWR at 6 GHz: 1.1. Convenient plastic nuts.
From 14 520 UAH
Documentation and useful materials
-
Description and characteristics of SPECTRAN V6 ECO XA-6
EN, 8 pages, 2 MB
-
Description and characteristics of SPECTRAN V6 ECO XA-18
EN, 8 pages, 2 MB
-
Aaronia RTSA-Suite PRO software (quick guide)
EN, 16 pages, 1 MB
-
Control software Aaronia RTSA-Suite PRO
EN, version 2.5.1.14350, release date 2023-11, 143 MB
-
Aaronia RTSA-Suite PRO software (blocks overview)
EN, 26 pages, 10 MB
