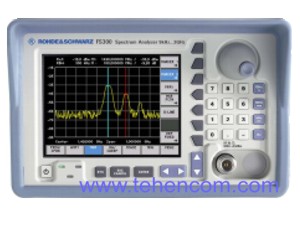

Laboratory spectrum analyzer up to 3 GHz Rohde & Schwarz FS300

MAIN CHARACTERISTICS

The Rohde & Schwarz FS300 is a precision spectrum analyzer with a frequency range of 9 kHz to 3 GHz. Thanks to state-of-the-art digital frequency processing technology, it offers high quality measurements at a very competitive price.

Spectrum analyzer Rohde & Schwarz FS315 additionally equipped with a built-in tracking generator with a frequency range from 9 kHz to 3 GHz for scalar network analysis.

The range of applications of the FS300 is practically unlimited - it will be useful both in the laboratory and in the service center, and as a flexible tool as part of an automated production system:
- excellent measuring characteristics;
- resolution bandwidths from 200 Hz to 1 MHz;
- frequency meter with a resolution of 1 Hz;
- maximum input level 33 dBm;
- ergonomic user interface;
- remote control via USB;
- fast screen refresh.
Work with the device is carried out through the menu system, so that even an inexperienced user will quickly achieve the required results. The simplicity of the menu structure makes navigation much easier. Users familiar with Rohde & Schwarz spectrum analyzers will quickly find their way around the menu items they are familiar with from other instruments.
The bright color LCD monitor with a resolution of 320 x 240 pixels allows you to read the readings even at large angles and under adverse lighting conditions.



Applications for the R&S FS300 Spectrum Analyzer

R&S FS300 is a universal spectrum analyzer for various measurements in laboratory conditions, in service centers and in production:
- measurement of the microwave spectrum (level and frequency);
- measurement of radiated interference (EMC);
- application for mobile radio and wireless communications (GSM, WCDMA, DECT, W-LAN, Bluetooth, etc.);
- TDMA power measurement;
- radio monitoring with remote control via USB.
The R&S FS 300 offers a wide range of measurement modes and markers, making signal analysis much easier. To determine the signal level, you can use two regular markers or one regular and one delta marker. For example, a normal marker can be set to the fundamental frequency as a reference pointer, while a delta marker can be set to a harmonic. Here, the difference between the two levels represents the harmonic suppression level. Regular or delta markers can be used as noise markers for noise power density measurements. With the R&S FS300, you can easily measure the bandwidth of an n dB signal, such as 3 dB or 6 dB.
High image refresh rate - up to 10 frames per second - guarantees a clear display of measurement results. As a result, parameter changes during module setup are displayed very quickly, saving time in research and production processes.



High measurement performance R&S FS300

The microwave performance of the R&S FS300 sets new standards for spectrum analyzers in the lower price range. Since the average displayed noise level is typically -115 dBm (300 Hz), the instrument detects even weak signals with confidence. Thanks to the wide dynamic range, this is possible even in the presence of a strong carrier signal.
The points of the resulting spectrogram are displayed with a precision never seen before at this price point. This makes the instruments indispensable for solving any measuring tasks.



Resolution bandwidths from 200 Hz to 1 MHz

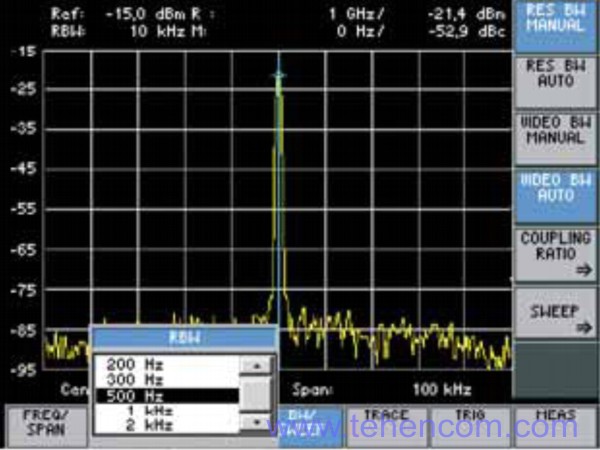

With 16 digital filters with resolutions starting from 200 Hz, the R&S FS300 can be optimally adapted to a wide variety of measurement tasks. Wide-band filters for general-purpose measurements guarantee fast sweeps, while narrow-band filters provide high frequency resolution and low noise. The spectrum analyzer R&S FS300 is able to meet all requirements in between.



Frequency counter with 1 Hz resolution

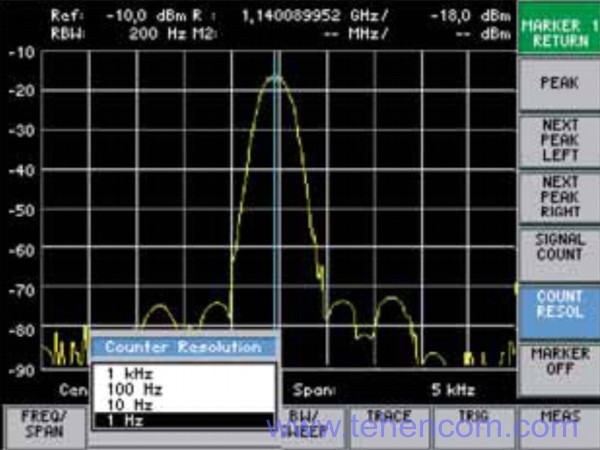

The built-in frequency meter allows you to measure the signal frequency with an accuracy of 1 Hz. In many cases, it is possible to do without an additional frequency counter, which greatly saves space on the desktop.



Maximum input level up to +33 dBm

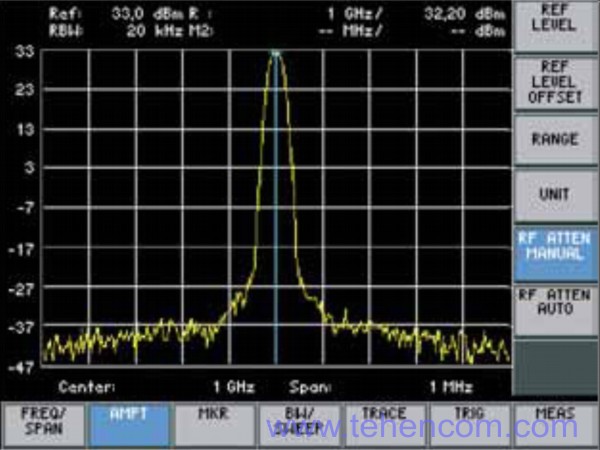

The maximum input level of the Rohde & Schwarz FS300 spectrum analyzer allows you to measure signals far beyond the generally accepted limits. Mobile phones with a maximum output power of 2 W can be connected directly to the spectrum analyzer without any external attenuators.



Electromagnetic compatibility (EMC) analysis

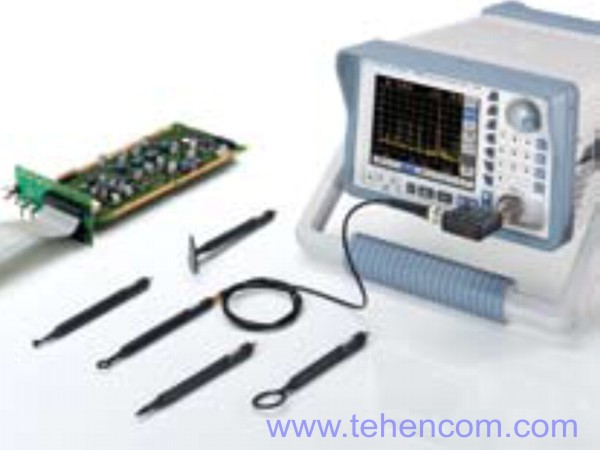

The Rohde & Schwarz FS300 spectrum analyzer can be supplemented with the R&S HZ-15 near-field probes, which allows you to identify EMC problems with printed circuit boards, microcircuits, cables, shields and other high-frequency devices. The R&S HZ-15 near field probe set is designed for measurements in the frequency range from 30 MHz to 3 GHz. To increase the sensitivity during measurements, the R&S HZ-16 preamplifier can be used, which has a gain of about 20 dB and a noise level of 4.5 dB.
The Rohde & Schwarz FS300 spectrum analyzer, complete with R&S HZ-16 preamplifier and R&S HZ-15 near-field probes, is an excellent and inexpensive tool for identifying and correcting EMC problems in electronics design.



Compact housing with flexible handle

The R&S FS300 spectrum analyzer features a compact and user-friendly design. Even on the operator's desk, even in the rack, it does not take up much space. Even two side-by-side instruments can be installed in one cell of a 19-inch rack.
The new adjustable handle performs several functions. First, it serves to carry the R&S FS300. Secondly, it can be rotated and locked in almost any position. By using the handle, the instrument can be tilted to provide an optimal screen viewing angle. If the handle gets in the way, it's very easy to move it away, allowing you to stack multiple R&S FS300s, for example.



R&S FS300 spectrum analyzer software

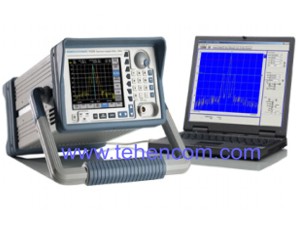

A powerful program has been developed for remote control of the R&S FS300 from a personal computer. The program extends the functionality of the R&S FS300 and supports report generation:
- compatible with Windows 2000 / XP;
- the computer is connected to the R&S FS 300 via a convenient USB interface;
- fast and easy data transfer between the R&S FS 300 and a computer;

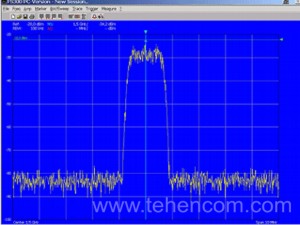

- continuous sweeping and data transfer of the current sweep to a computer with the possibility of processing (markers, scaling, etc.);
- virtually unlimited memory for storing scans and measurement results (comparison of current and previous results);
- extended set of functions (boundary lines, log files);
- export of sweeps (900 points) in text format for subsequent import into MS Excel;
- export of displayed data (screen shots) in JPEG format;
- output of results to a standard printer.



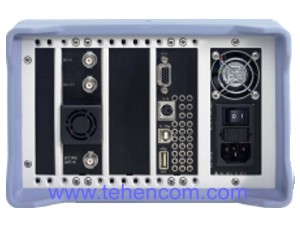

USB remote control

A new feature in the instrument is the remote control of the R&S FS300 spectrum analyzer via USB. The "hot plug" function allows you to switch to remote control even during operation of the device, simply by establishing a USB connection. For the first time, a laboratory instrument allows USB remote control without any restrictions.
The R&S FS 300 is supplied with a Windows 2000 / XP driver for various development environments.

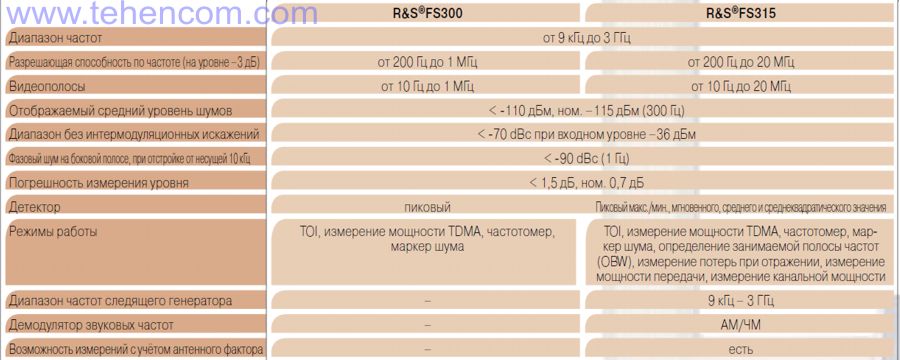

Specifications for the Spectrum Analyzers R&S FS300 and R&S FS315



Warranty:
1 year. It is possible to extend the warranty period up to 3 years.



R&S FS300 Spectrum Analyzer Specifications (191 KB)

The Rohde & Schwarz FS300 analyzer has been discontinued. See all new models here: spectrum analyzers.
