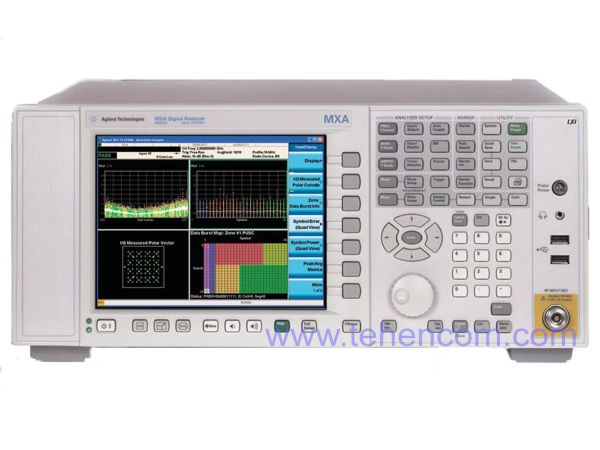

Agilent MXA N9020A series of laboratory spectrum analyzers up to 26.5 GHz
Product code: 1000965
Not available DiscontinuedAdd item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.
Price on request
Out of production. Recommended replacement: Anritsu MS2840A
MAIN CHARACTERISTICS
MXA signal analyzer, frequency range from 20 Hz to 3.6; 8.4; 13.6 or 26.5 GHz, 25 MHz analysis bandwidth, +15 dBm TOI (3rd order intercept) and -151 dBm/Hz DANL (average noise floor), -154 dBm/Hz typical , 0.3 dB absolute level error, fully digital, 14 bit, IF path with 160 bandwidth settings, electronically controlled input attenuator with 1 dB attenuation steps, full range calibrated preamps, marker peaking
|
|
Key Features of the Agilent MXA N9020A Analyzer
- Measurement speed 30 - 300% faster than other analyzers
- Analysis/demodulation bandwidth 25 MHz
- Average inherent noise level (DANL) .154 dBm/Hz
- Third order intercept level (TOI) level +15 dBm
- Bandwidth 10 Hz to 1 MHz
- 0.3 dB absolute level accuracy
- Built-in attenuator in 2 dB steps across the entire frequency range and electronic attenuator in 1 dB steps up to 3.6 GHz
- Special purpose measurement applications
- Compatible with LXI class C standard
|
|
Models:
Agilent N9020A-503 - up to 3.6 GHz
Agilent N9020A-508 - up to 8.4 GHz
Agilent N9020A-513 - up to 13.6 GHz
Agilent N9020A-526 - up to 26.5 GHz
Warranty:
1 year. It is possible to extend the warranty period up to 3 years.
Agilent MXA N9020A analyzers are discontinued. See all new models here: microwave spectrum analyzers.
