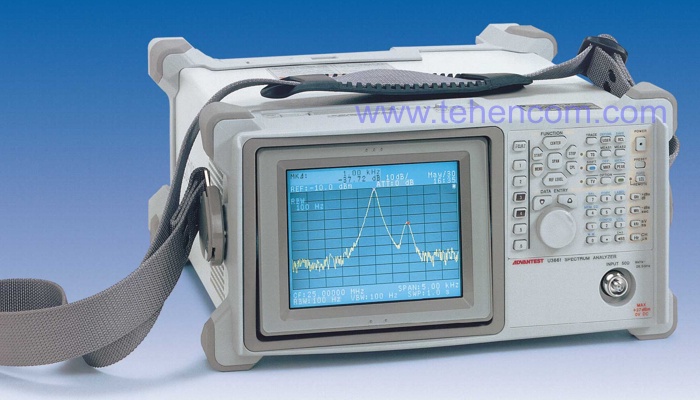

Laboratory spectrum analyzer up to 26.5 GHz Advantest U3661

Advantest U3661 – spectrum analyzer (9 kHz – 26.5 GHz)

Product code: 1000821

Not available Discontinued

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Out of production. Recommended replacement: Anritsu MS2840A

MAIN CHARACTERISTICS

Spectrum analyzer Advantest U3661 is designed for maintenance and control of microwave communication systems.

The Advantest U3661 Spectrum Analyzer is ideal for field studies. It is the lightest device in its class (8 kg - the weight of the device itself, about 9 kg - the weight of the device with a battery) and at the same time it has good characteristics.





Technical features of the spectrum analyzer Advantest U3661

- Frequency range from 9 kHz to 26.5 GHz;
- Resolution 1 kHz - 3 MHz;
- Displayed average noise level (with preamplifier): -132 dBm;

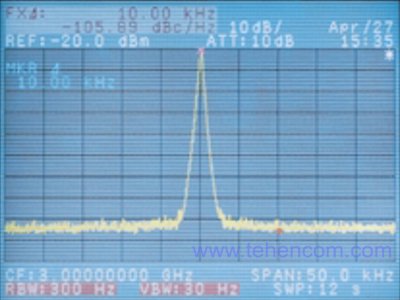

- Noise level SSB -105 dBs/Hz;
- Dynamic range 100 dB;
- Total level error 1 dB;
- Fast sweep 50 µs;
- Preamplifier (up to 3 GHz);
- AM and FM demodulators;
- Tracking generator (option);

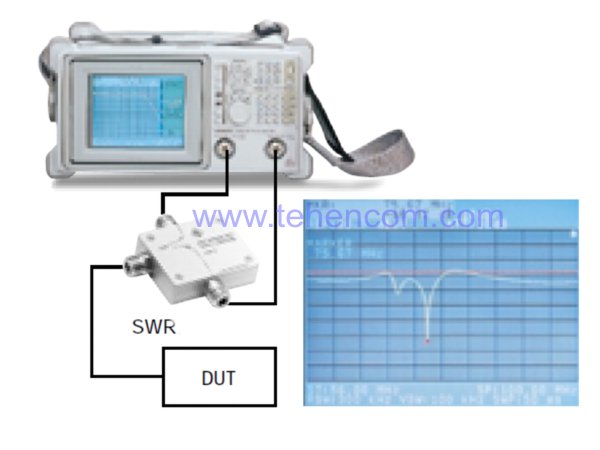

- Bridge SWR (option);
- Narrow-band IF filters 100 Hz and 300 Hz (options);

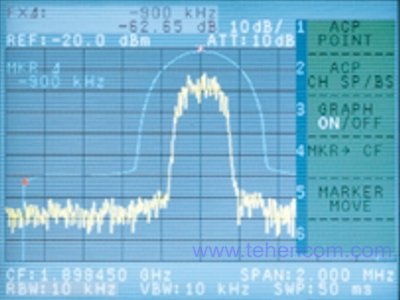

- Automatic procedures for measuring adjacent channel power (ACP), occupied bandwidth (OBW), spurious emission;

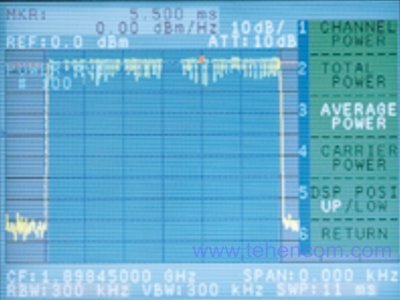

- CDMA measurement functions (option);
- DC voltage source function;
- Possibility of work as the receiver/demodulator of a TV signal (option);
- Color display;
- 3 types of power supply, including battery;
- 2 slots for memory cards;

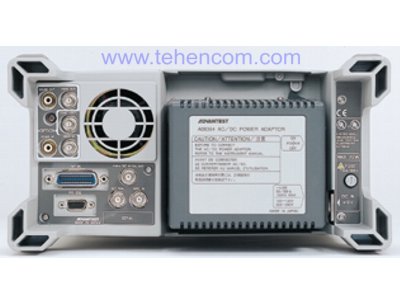

- RS-232, GPIB, TV interfaces.

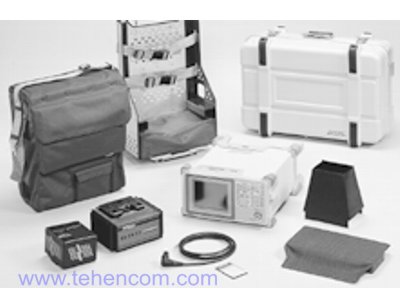

Rugged housing and robust construction

The Advantest U3661 spectrum analyzer is quite light and compact. Its weight is from 8.5 kg (depending on configuration and accessories).





Warranty:
1 year. It is possible to extend the warranty period up to 3 years.



Description of the spectrum analyzer Advantest U3661 (13 pages; 2 MB)

The Advantest U3661 analyzer has been discontinued. See all new models here: spectrum analyzers.
