Power adapter - charger Fujikura ADC-13 for Fujikura FSM-60S

Power adapter - charger (power supply) Fujikura ADC-13

Product code: 1000254

On order

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request



SHORT DESCRIPTION

Mains adapter - charger Fujikura ADC-13 designed for direct power supply of Fujikura welding machines FSM-60S, FSM-18S, FSM-60R, FSM-18R or Fujikura battery charger BTR-08.

Main characteristics:
Input voltage: 100 to 240 V AC or 10 to 15 V DC.
Built-in overvoltage protection at the input.
Can be connected to a car cigarette lighter (using a cord DCC-12),
as well as to any external battery (using a cord DCC-13).
Battery connection BTR-08 done with cord DCC-14.
Operating temperature range: from -10°С to +50°С. Weight: 0.34 kg.
Universal power supply for FSM-60S, FSM-18S welding machines

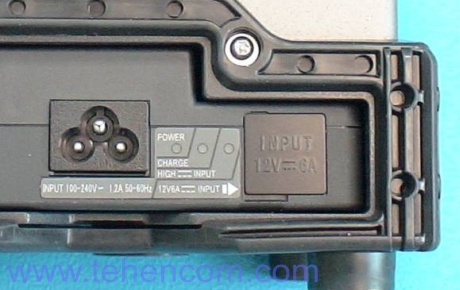

Power supply Fujikura ADC-13 installed in the welding machine FSM-60S (side view)

Fujikura ADC-13 power supply installed in the FSM-60S welding machine (side view)

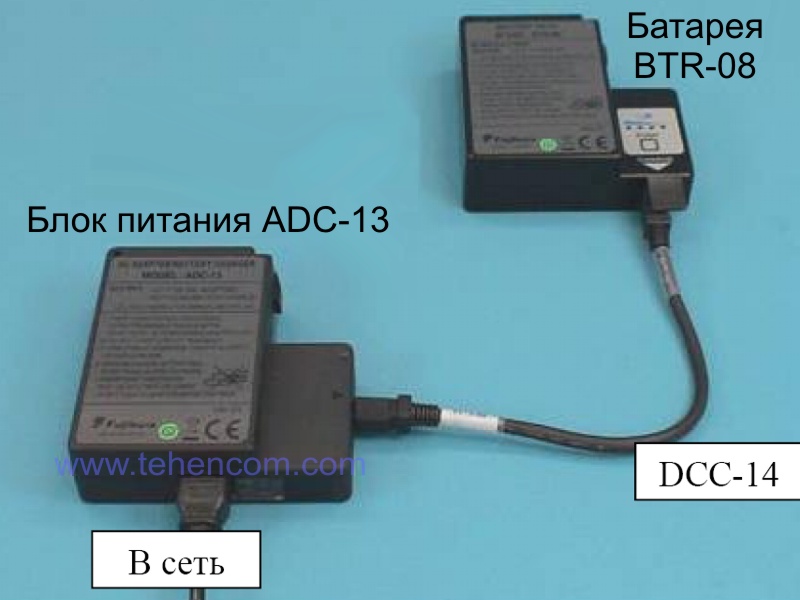

Charging the BTR-08 Battery with the ADC-13 AC Adapter and DCC-14 Cord

Charging the BTR-08 Battery with the ADC-13 AC Adapter and DCC-14 Cord

Note: Battery connection BTR-08 done with cord DCC-14.
While charging, the BTR-08 battery may be in a working welding machine. Thus, it is possible to splice fibers and charge the battery at the same time.

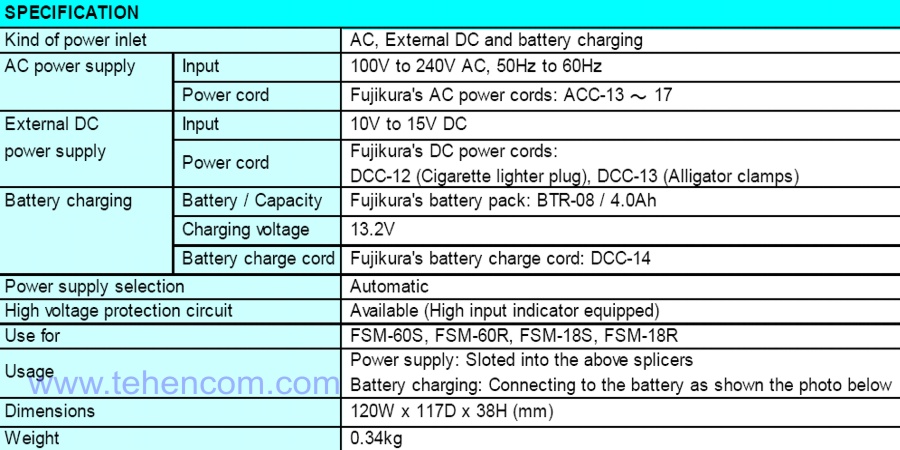

Specifications AC Adapter - Charger Fujikura ADC-13

Specifications AC Adapter - Charger Fujikura ADC-13

Note: AC adapter - Fujikura charger ADC-13 can charge the battery BTR-08 even while the welding machine is running FSM-60S or FSM-18S.
