Discontinued Oscilloscopes and Probes

Discontinued models and series of oscilloscopes and probes

General information

Manufacturers of measuring equipment regularly develop and put into production new models oscilloscopes and probes. After some time, after the start of sales of new models, old models and series are gradually discontinued.

After the cessation of production of a particular model, we continue to support it: service and repair. As a rule, after being discontinued, factory repairs are possible for 5 years or more. After the stock of original microcircuits and spare parts in the service center is exhausted, professional factory repair becomes impossible.

Discontinued models and series of oscilloscopes and probes

List of discontinued models, indicating the proposed replacement, see the table below.

Model A photo Short description
Oscilloscopes firms Tektronix (out of production)
Tektronix
TDS1001B
TDS1002B
TDS1012B
discontinued
Buy at a good price in Kyiv (Ukraine) Tektronix TDS1000B - A series of digital storage oscilloscopes from 40 MHz to 100 MHz, 2 channels

Product code: 1000785

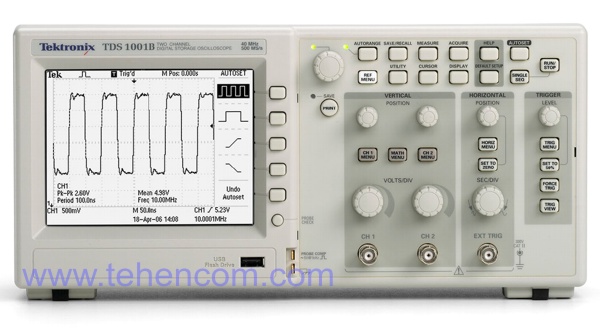

Tektronix TDS1000B Series Oscilloscopes from 40 MHz to 100 MHz
40 MHz, 500 MSa/s, 2 channels (model TDS1001B).
60 MHz, 1 GS/s, 2 channels (model TDS1002B).
100 MHz, 1 GS/s, 2 channels (model TDS1012B).
Record length: 2.5k points to the channel. Vertical resolution: 8 bits.
Sensitivity: 2 mV/div to 5 V/div with calibrated fine tuning.
12 automatic measurements, FFT analysis (FFT), mathematical signal processing, cursor measurements, context help, Russian interface.
Monochrome LCD screen (resolution 320 x 240).
Interfaces: USB standard, IEEE-488.2 (GPIB) optional. Weight: 2.0 kg.
Out of production. Replacement: Tektronix TDS2000C
Tektronix
TBS1022
TBS1042
TBS1062
TBS1102
TBS1152
discontinued
Buy at a good price in Kyiv (Ukraine) Tektronix TBS1000 - A series of digital storage oscilloscopes from 25 MHz to 150 MHz, 2 channels

Product code: 1000786

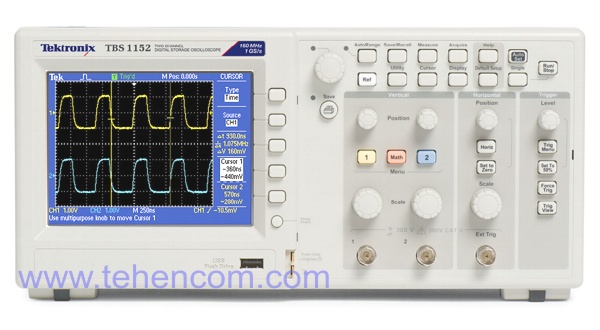

Tektronix TBS1000 Series Oscilloscopes from 25 MHz to 150 MHz
25 MHz, 500 MSa/s, 2 channels (model TBS1022).
40 MHz, 500 MSa/s, 2 channels (model TBS1042).
60 MHz, 1 GS/s, 2 channels (model TBS1062).
100 MHz, 1 GS/s, 2 channels (model TBS1102).
150 MHz, 1 GS/s, 2 channels (model TBS1152).
Record length: 2.5k points to the channel. Vertical resolution: 8 bits.
Sensitivity: 2 mV/div to 5 V/div with calibrated fine tuning.
16 automatic measurements, FFT analysis (FFT), mathematical signal processing, cursor measurements, mask measurement, context help, Russian interface.
Built-in signal limit monitoring function. Pass/fail testing. Automatic data logging with advanced features.
Color LCD screen 14.4 cm (resolution 320 x 240).
Interfaces: USB standard, IEEE-488.2 (GPIB) optional. Weight: 2.0 kg.
Out of production. Replacement: Tektronix TBS1000B
Tektronix TBS2072 TBS2102 TBS2074 TBS2104
out of production
Tektronix TBS2000 Series Digital Storage Oscilloscopes with 70 MHz and 100 MHz bandwidth

Product code: 1000787

Tektronix TBS2000 Digital Storage Oscilloscopes
70 MHz, 1 GS/s, 2 channels (model TBS2072).
100 MHz, 1 GS/s, 2 channels (model TBS2102).
70 MHz, 1 GS/s, 4 channels (model TBS2074).
100 MHz, 1 GS/s, 4 channels (model TBS2104).
Record length: 20 million points to the channel. Vertical resolution: 8 bits.
Sensitivity: 2 mV/div to 5 V/div with calibrated fine tuning.
32 automatic measurements, FFT analysis (FFT), mathematical signal processing, cursor measurements, context help, Russian interface.
Built-in oscilloscope manual. Support for active probes.
22.8 cm screen (800 x 480 resolution). Weight: 2.6 kg (2 channels) and 4.2 kg (4 channels).
Interfaces: USB and Ethernet (standard), Wi-Fi (optional).
Out of production. Replacement: Tektronix TBS2000B
Tektronix
THS3014
THS3014-TK
THS3024
THS3024-TK

out of production
Buy at the best price in Kyiv (Ukraine) Tektronix THS3000 - A series of portable oscilloscopes with isolated inputs and a bandwidth from 100 MHz to 200 MHz

Product code: 1000788

Tektronix THS3000 Series Handheld Oscilloscopes with Isolated Inputs and 100 MHz to 200 MHz Bandwidth
100 MHz, 2.5 GS/s, 4 channels (models THS3014 and THS3014-TK).
200 MHz, 5 GS/s, 4 channels (models THS3024 and THS3024-TK).
Record length: 10k points to the channel. Vertical resolution: 8 bits.
Sensitivity: 2 mV/div to 100 V/div.
All input channels are electrically isolated from each other.
21 automatic measurements, FFT analysis (FFT), mathematical signal processing, cursor measurements, including measurements in Watts, recorder (datalogger) mode.
Areas of use: analog and digital systems, power supplies,
high current electronics, automotive and aviation electronics development and maintenance, industrial electronics development and maintenance, electronics
testing and maintenance in the field.
Possibility of supply up to 7 hours from built-in battery.
Models THS3014-TK and THS3024-TK come with an optional hiking kit.
Interfaces: USB as standard. Weight with battery: 2.2 kg.
Out of production. Replacement: Tektronix TPS2000B
Tektronix
MSO3012
MSO3014
MSO3032
MSO3034
MSO3054

out of production
Tektronix MSO3000 - 100 MHz to 500 MHz Digital Phosphor Mixed Signal Oscilloscope Series (Models: MSO3012, MSO3014, MSO3032, MSO3034, MSO3054)

Product code: 1000789

Tektronix MSO3000 Digital Phosphor Mixed Signal Oscilloscopes 100 MHz to 500 MHz Bandwidth
100 MHz, 2.5 GS/s, 2 channels + 16 digital channels (model MSO3012).
100 MHz, 2.5 GS/s, 4 channels + 16 digital channels (model MSO3014).
300 MHz, 2.5 GS/s, 2 channels + 16 digital channels (model MSO3032).
300 MHz, 2.5 GS/s, 4 channels + 16 digital channels (model MSO3034).
500 MHz, 2.5 GS/s, 4 channels + 16 digital channels (model MSO3054).
Record length: 5 million points to the channel.
Vertical resolution: 8 bits (11 bits in high resolution mode).
Sensitivity: 1 mV/div to 10 V/div with calibrated fine tuning.
Continuous waveform capture rate: up to 50,000 waveforms/s.
29 automatic measurements, FFT analysis (FFT), mathematical signal processing, cursor measurements, mask measurement, context help, Russian interface.
Interfaces: USB, Ethernet and VGA. Weight: 4.2 kg.
Out of production. Replacement: Tektronix MDO3
Tektronix
MSO4034B
MSO4054B
MSO4102B
MSO4104B
DPO4034B
DPO4054B
DPO4102B
DPO4104B
discontinued

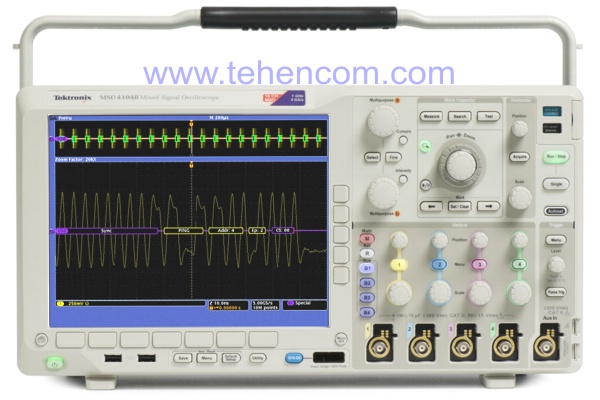

Tektronix MSO4000 and DPO4000 Digital Phosphor Mixed Signal Oscilloscope Series from 350 MHz to 1 GHz

Product code: 1000790

Tektronix MSO4000 and DPO4000 Series Digital Phosphor Mixed Signal Oscilloscopes from 350 MHz to 1 GHz
350 MHz, 2.5 GS/s, 4 channels + 16 digital channels (model MSO4034B).
500 MHz, 2.5 GS/s, 4 channels + 16 digital channels (model MSO4054B).
1 GHz, 5 GS/s, 2 channels + 16 digital channels (model MSO4102B).
1 GHz, 5 GS/s, 4 channels + 16 digital channels (model MSO4104B).
350 MHz, 2.5 GS/s, 4 channels (model DPO4034B).
500 MHz, 2.5 GS/s, 4 channels (model DPO4054B).
1 GHz, 5 GS/s, 2 channels (model DPO4102B).
1 GHz, 5 GS/s, 4 channels (model DPO4104B).
Record length: 20 million points per channel (5 Mpts per channel on models with -L).
Vertical resolution: 8 bits (11 bits in high resolution mode).
Sensitivity: 1 mV/div to 10 V/div with calibrated setting.
Continuous waveform capture rate: up to 50,000 waveforms/s.
41 automatic measurements, signal histogram, FFT analysis (FFT), mathematical signal processing, cursor measurements, mask measurement, context help.
Areas of use: research and debugging of embedded systems up to 1 GHz, debugging of mixed signal systems, debugging of serial interfaces, development of automotive electronics, development of video systems, power measurements.
Interfaces: USB, Ethernet and VGA. Weight: 5 kg.
Out of production. Replacement: Tektronix MDO4000C
Tektronix
MDO4054-3
MDO4054-6
MDO4104-3
MDO4104-6
discontinued

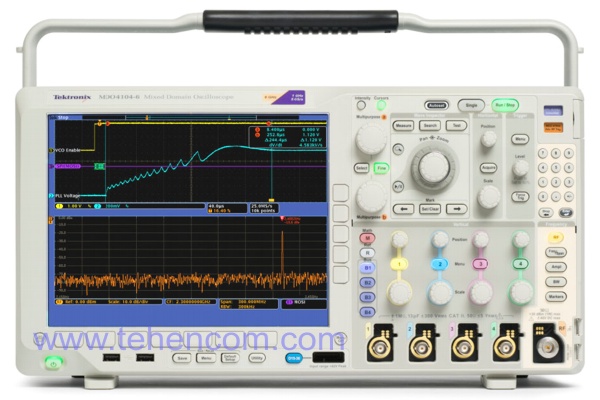

Tektronix MDO4000 - Digital Phosphor Oscilloscopes with Built-in Spectrum Analyzer from 500 MHz to 1 GHz (Models: MDO4054-3, MDO4054-6, MDO4104-3, MDO4104-6)

Product code: 1000791

Digital Phosphor Oscilloscopes with Integrated Spectrum Analyzer Tektronix MDO4000 Series from 500 MHz to 1 GHz
500 MHz, 2.5 GS/s, 4 channels + 16 digital + 1 channel 3 GHz (model MDO4054-3).
500 MHz, 2.5 GS/s, 4 channels + 16 digital + 1 channel 6 GHz (model MDO4054-6).
1 GHz, 5 GS/s, 4 channels + 16 digital + 1 channel 3 GHz (model MDO4104-3).
1 GHz, 5 GS/s, 4 channels + 16 digital + 1 channel 6 GHz (model MDO4104-6).
Record length: 20 million points to the channel.
Vertical resolution: 8 bits (11 bits in high resolution mode).
Sensitivity: 1 mV/div to 10 V/div with calibrated setting.
Continuous waveform capture rate: up to 50,000 waveforms/s.
Automatic measurements: 29 (time domain), 3 (frequency domain).
Options built-in spectrum analyzer: frequency: 50 kHz - 3 or 6 GHz.
Resolution (RBW): 20 Hz - 10 MHz. Amplitude: +30 dBm to -140 dBm.
Start capturing an oscillogram at a given power level in the RF channel, etc.
Areas of use: debugging of analog-digital systems and systems with wireless communication modules, analysis of power supplies, spectrum analysis.
Interfaces: USB, Ethernet and VGA. Weight: 5 kg.
Out of production. Replacement: Tektronix MDO4000C
Tektronix
DPO70000C, D
DSA70000C, D
MSO70000C
discontinued

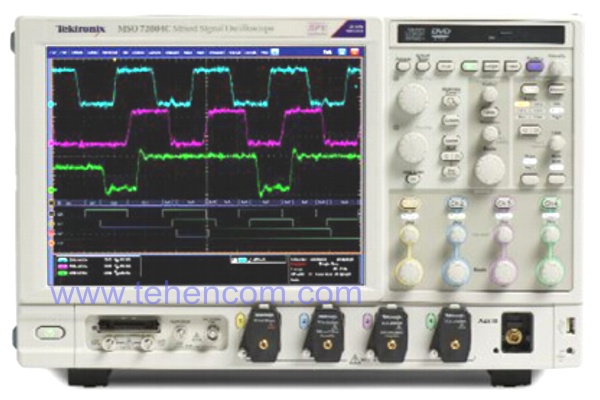

Tektronix DPO70000C(D), DSA70000C(D) and MSO70000C - Ultra-fast oscilloscopes for digital, analog and mixed signals (buy at the best price in Kyiv and Ukraine) Tektronix 70000 ultra-fast oscilloscopes (C and D versions)
4 GHz, 25 GS/s, 4 channels (models DPO70404C and DSA70404C).
6 GHz, 25 GS/s, 4 channels (models DPO70604C and DSA70604C).
8 GHz, 25 GS/s, 4 channels (models DPO70804C and DSA70804C).
12.5 GHz, 50 and 100 GS/s, 4 channels (models DPO71254C and DSA71254C).
16 GHz, 50 and 100 GS/s, 4 channels (models DPO71604C and DSA71604C).
20 GHz, 50 and 100 GS/s, 4 channels (models DPO72004C and DSA72004C).
25 GHz, 50 and 100 GS/s, 4 channels (models DPO72504D and DSA72504D).
33 GHz, 50 and 100 GS/s, 4 channels (models DPO73304D and DSA73304D).
4 GHz, 25 GS/s, 4 channels + 16 digital channels (model MSO70404C).
6 GHz, 25 GS/s, 4 channels + 16 digital channels (model MSO70604C).
8 GHz, 25 GS/s, 4 channels + 16 digital channels (model MSO70804C).
12.5 GHz, 50 and 100 GS/s, 4 channels + 16 digital channels (model MSO71254C).
16 GHz, 50 and 100 GS/s, 4 channels + 16 digital channels (model MSO71604C).
20 GHz, 50 and 100 GS/s, 4 channels + 16 digital channels (model MSO72004C).
Record length: 10 million points per channel (for DPO and MSO series),
31 million points per channel (for DSA series). Optional up to 250M points per channel.
Vertical resolution: 8 bits (11 bits in high resolution mode).
Sensitivity: 6 mV/div to 500 mV/div.
Continuous waveform capture rate: up to 300,000 waveforms/s.
Bus support: PCI Express, 8b10b Encoded Serial Data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, MIL-STD-1553B, and MIPI D-PHY.
Areas of use: signal integrity, jitter, signal timing analysis, debugging, characterization, A/D systems, network equipment design, high-speed applications, high energy physics measurements, data acquisition, spectrum analysis, signal rare event analysis, ultra-wideband applications, characterization of complex systems, compliance testing for various high-speed serial data transfer protocols, debugging of telecommunication systems.
Interfaces: USB, IEEE-488.2 (GPIB), Ethernet, eSATA, DVI-I, VGA, etc. Weight: 22 kg.
Out of production. Replacement: Tektronix DPO70000DX and MSO70000DX
Oscilloscopes firms Pico Technology (out of production)
Pico
Technology
PicoScope
4824

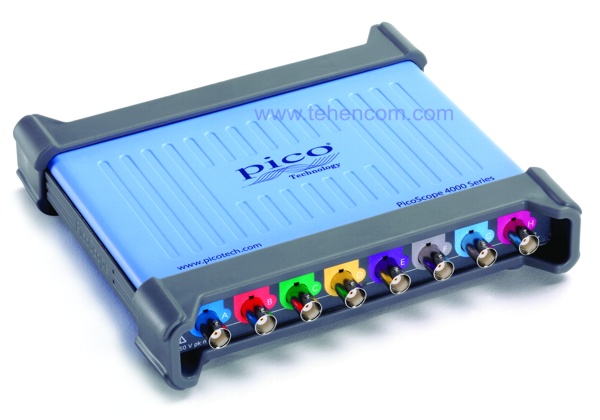

Pico Technology PicoScope 4824 - 8-channel USB oscilloscope up to 20 MHz

Product code: 1000793

Pico Technology PicoScope 4824 8-channel USB oscilloscope with 20 MHz bandwidth
20 MHz, 80 MSa/s, 8 channels (model 4824).
If five or more channels are active, the sample rate is downsampled to 40 MS/s.
Recording length (total for all channels): 256 million points.
Vertical resolution: 12 bits (up to 16 bits). Sensitivity: 2 mV/div to 10 V/div.
Built-in standard and arbitrary waveform generator (14 bit AWG).
Decoding and analysis of 7 protocols: I2C, I2S, SPI, CAN, LIN, RS-232/UART and FlexRay.
15 automatic measurements, FFT analysis (FFT), mathematical signal processing.
Interfaces: USB 3 (it is possible to connect to USB 2 with a special cable).
Weight: 0.55 kg. Dimensions: 190 x 170 x 40 mm. Working temperature: from 0°С to +45°С.
Out of production. Replacement: Pico Technology PicoScope 4000A
Pico
Technology
PicoScope 6000C
6000D

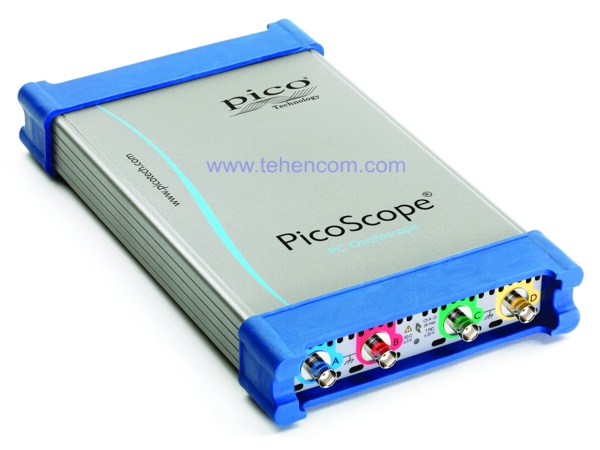

Pico Technology PicoScope 6000C and 6000D - two series of professional digital USB oscilloscopes up to 500 MHz

Product code: 1000794

USB oscilloscopes for digital, analog and mixed signals Pico Technology PicoScope 6000C and 6000D series from 250 MHz to 500 MHz
250 MHz, 5 GS/s, 4 channels (Model 6402C).
350 MHz, 5 GS/s, 4 channels (Model 6403C).
500 MHz, 5 GS/s, 4 channels (Model 6404C).
250 MHz, 5 GS/s, 4 channels + AWG (model 6402D).
350 MHz, 5 GS/s, 4 channels + AWG (model 6403D).
500 MHz, 5 GS/s, 4 channels + AWG (model 6404D).
If two or more channels are active, then the sampling rate is reduced (see table).
Recording length (total, depends on the model): from 256M to 2048M.
Vertical resolution: 8 bits (up to 12 bits). Sensitivity: 10 mV/div to 4 V/div.
Continuous waveform capture rate (DPO mode): up to 170,000 waveforms/s.
All 6000C Series models include a built-in standard signal generator.
All 6000D models include a standard and arbitrary waveform generator (AWG).
Protocol decoding and analysis: I2C, I2S, SPI, CAN, LIN, RS-232/UART and FlexRay.
15 automatic measurements, FFT analysis (FFT), mathematical signal processing.
Interfaces: USB 3 (it is possible to connect to USB 2 with a special cable).
Models up to 350 MHz: weight 1 kg, dimensions 170 x 255 x 40 mm, temperature from 0°С to +40°С.
500 MHz models: weight 1.3 kg, dimensions 170 x 285 x 40 mm, temperature from 0°С to +40°С.
Out of production. Replacement: Pico Technology PicoScope 6000E
Oscilloscope probes (out of production)
LeCroy
PP005A
LeCroy PP005A - Passive probe. 500 MHz.

Product code: 1000900

Passive probe. 500 MHz.

10 MOhm. 11 pF. Attenuation: 10:1.
Voltage: up to 500 V. Cord 1.5 m.
Tektronix P6109B Tektronix P6109B - Passive probe. 100 MHz.

Product code: 1000901

Passive probe. 100 MHz.

1 MOhm. Voltage: 300 V. Switching: 10:1. Cord 1.5 m.
Agilent
10440B
Agilent 10440B - Passive probe. 300 MHz.

Product code: 1000902

Passive probe. 300 MHz.

10 MOhm. 2.5 pF. Switching: 100:1. Cord 2 m.
Agilent
10074C
Agilent 10074C - Passive probe. 150 MHz.

Product code: 1000903

Passive probe. 150 MHz.

10 MOhm. 15 pF. Switching: 10:1. Cord 1.5 m.
LeCroy PPE1.2KV LeCroy PPE1.2KV - Passive high voltage probe. 300 MHz.

Product code: 1000904

Passive high voltage probe. 300 MHz.

1200 V. 50 MOhm. 6 pF. Attenuation: 100:1. Cord 2 m.
Tektronix P6137 Tektronix P6137 - Passive probe. 400 MHz.

Product code: 1000905

Passive probe. 400 MHz.

10 MOhm. 10.8 pF. Voltage: up to 400 V.
Switching: 10:1. Cord 1.5 m.
Agilent
10076A
Agilent 10076A - Passive High Voltage Probe. 250 MHz.

Product code: 1000906

Passive high voltage probe. 250 MHz.

4000 V. 66 MOhm. 3 pF. Attenuation: 100:1. Cord 1.8 m.
Agilent
N2771A
Agilent N2771A - Passive High Voltage Probe. 50 MHz.

Product code: 1000907

Passive high voltage probe. 50 MHz.

15000 V. 100 MΩ. 1 pF. Weakening: 1000:1. Cord 1.5 m.
Agilent
1144A
Agilent 1144A - Active probe. 800 MHz.

Product code: 1000908

Active probe. 800 MHz.

Voltage: -40 to +40 V. Attenuation: 10:1. Cord 1.5 m.
LeCroy HFP1000 LeCroy HFP1000 - Active probe. 1 GHz.

Product code: 1000909

Active probe. 1 GHz.

100 kOhm. 0.7 pF. Attenuation: 10:1. Voltage: -8 to +8 V.
Cord 1.5 m.
Tektronix TCP312 Tektronix TCP312 - Current probe. 100 MHz.

Product code: 1000910

Current probe. 100 MHz.

Current: up to 30 A. Resistance: 0.08 Ohm. Cord 1.5 m.
Agilent
N2774A
Agilent N2774A - Current probe. 50 MHz.

Product code: 1000911

Current probe. 50 MHz.

Noise: less than 2.5 mA RMS. Low losses.
Agilent
1156A
Agilent 1156A - Active probe. 1.5 GHz.

Product code: 1000912

Active probe. 1.5 GHz.

100 kOhm. 0.8 pF. Cord 2 m.
Tektronix P7350 Tektronix P7350 - Differential probe. 5 GHz.

Product code: 1000913

Differential probe. 5 GHz.

100 kOhm. 0.3 pF. Voltage: up to 15 V. Attenuation: 6.25. Cord 1.3 m.

Other discontinued oscilloscope and probe models:

Agilent 54832B used, Agilent 54833D, Agilent 54854A, Agilent DSO6104A, Agilent DSO80204B, Agilent DSO80304B, Agilent DSO80404B, Agilent DSO80604B, Agilent DSO80804B, Agilent DSO81004B, Agilent DSO81204B, Agilent DSO81304B, LeCroy 9374 used, LeCroy LC684DXL used, LeCroy WavePro 950 used, LeCroy WR6100A, LeCroy WR6200A, Tektronix TDS6604 used, Tektronix TDS680B used, Tektronix TDS7054 used, Tektronix TDS784С bu.

Agilent 54622D, Agilent 54641A, Agilent 54642D, Agilent 54831B used, Agilent DSO3062A, Agilent DSO3102A, Agilent DSO3152A, Agilent DSO3202A, Agilent DSO6032A, Fluke 123, Fluke 124, Fluke 192B, Fluke 196C, Fluke 199C, HP 54810A, LeCroy 422, LeCroy 9354C used, LeCroy LC534 used, LeCroy LT264, LeCroy LT322, LeCroy LT342 used, LeCroy WS454, Tektronix DPO7054, Tektronix TDS2022, Tektronix TDS224 used, Tektronix TDS2432 used, Tektronix TDS3012B, Tektronix TDS3014B, Tektronix TDS3024B, Tektronix TDS3032B, Tektronix TDS3034B, Tektronix TDS3044B, Tektronix TDS3052B, Tektronix TDS3054B, Tektronix TDS350 used, Tektronix TDS410A used, Tektronix TDS420 used, Tektronix TDS5052 used, Tektronix TDS5052B, Tektronix TDS524A used, Tektronix TDS544A used, Tektronix TDS640A used, Tektronix TDS744A used, Tektronix TDS754D used, Tektronix TPS2024.

Agilent 10074C, Agilent 10076A, Agilent 10440B, Agilent 1144A, Agilent 1156A, Agilent N2771A, Agilent N2774A, LeCroy HFP1000, LeCroy PP005A, LeCroy PPE1.2KV, Tektronix P6109B, Tektronix P6137, Tektronix P7350, Tektronix TCP312.

New models of oscilloscopes and probes

New models oscilloscopes and probes currently in production and available for order are detailed on this page.
