Semi-automatic optical fiber cleaver Fujikura CT-05A

Semi-automatic optical fiber cleaver Fujikura CT-05A

Product code: 1000834

Check availability Discontinued

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Out of production. Recommended replacement: Fujikura CT08



SHORT DESCRIPTION

Fujikura CT-05A is the company's new universal cleaver Fujikura used with all types of welding machines. Inexpensive and reliable cleaver. Performs fiber cleavage in one action, while the remainder of the cleaved fiber must be removed manually. Smooth running knife. When it is not possible to place the cleaver on a flat surface, it is possible to cleave the fiber even "on weight". The service life of the cleaver exceeds 10 years. Authorized service is located in Kyiv. For special applications, models CT-05B and CT-05 are available.

Main characteristics:
Single fiber cleavage:
- single fiber, chip length from 5 to 20 mm (model CT-05A)
- single fiber, cleave length 16 mm (model CT-05B)
- single fiber, cleavage length 10 mm (model CT-05)
Knife life: 48,000 chips. Cleave angle error: 1 degree.
Mechanism of automatic movement of a knife. Great for FTTx and SCS.
Out of production. Recommended replacement: Fujikura CT-06A.



Tehencom LLC is the official distributor of the company Fujikura on the territory of Ukraine.

Fujikura Distributor Certificate (90 KB)

When buying a welding machine, training can be provided (theory + practice)with the issuance of a personal certificate. In addition, 24/7 mobile phone technical support is available.

Retail prices for welding machines and consumables of the company Fujikura significantly reduced. When buying a set of equipment (for example welding machine+reflectometer) will receive an additional discount. All details can be found by phone: (044) 338-11-77, (097) 650-11-77, (095) 650-11-77, (093) 650-11-77.



DETAILED DESCRIPTION

The Fujikura CT-05A semi-automatic optical fiber cleaver (as well as the CT-05B and CT-05 modifications) cleaves the fiber using a special high-strength steel blade CB-05. Each blade position is rated for 1000 cleaves. The blade can be rotated in a circle and fixed in 16 different positions. In addition, as the blade wears, you can adjust its height in three different positions. Thus, the total resource of the blade is: 1000 * 16 * 3 = 48,000 chips. After the resource of the blade CB-05 is exhausted, it can be replaced with a new one.

After the cleavage is completed, the fiber cut is removed into the container using the rotating handle.

Fujikura CT-05A cleaver included "Kit-A" Standard welding machines: Fujikura 80S, Fujikura 19S and Fujikura 12S.



Operating principle of Fujikura CT-05A, CT-05B, CT-05 optical fiber cleavers

Operating principle of Fujikura CT-05A, CT-05B, CT-05 optical fiber cleavers

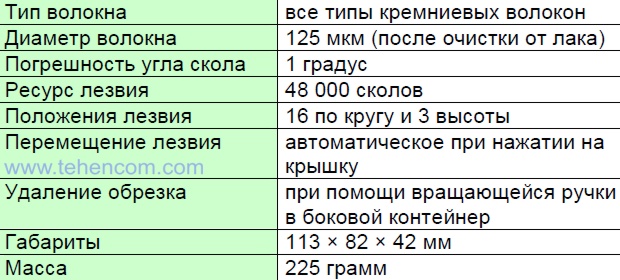

Specifications of Fujikura CT-05A, CT-05B, CT-05 cleavers

Specifications of semi-automatic cleavers Fujikura CT-05A, CT-05B, CT-05

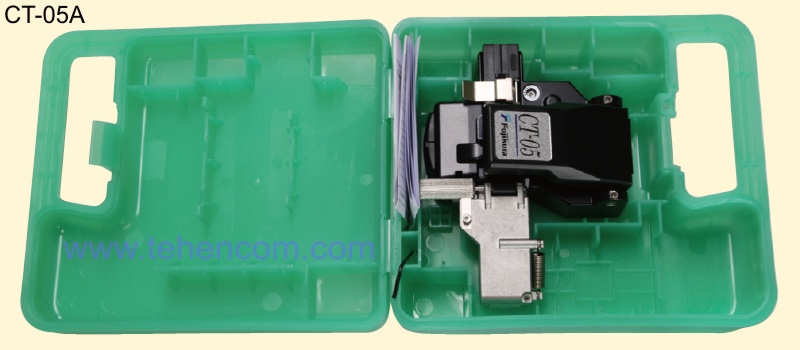

Fujikura CT-05A optical fiber cleaver delivery set

- single fiber cleaver CT-05A (with attached fiber holder AD-10)
- container for fiber scraps (attached to the cleaver)
- miniature hex wrench HEX-01
- short instruction M-CT05-E
- case CC-31
- warranty: 1 year (it is possible to extend the warranty period up to 3 years)

Fujikura CT-05A semi-automatic optical fiber cleaver



Additional accessories for Fujikura CT-05A, CT-05B, CT-05 cleavers

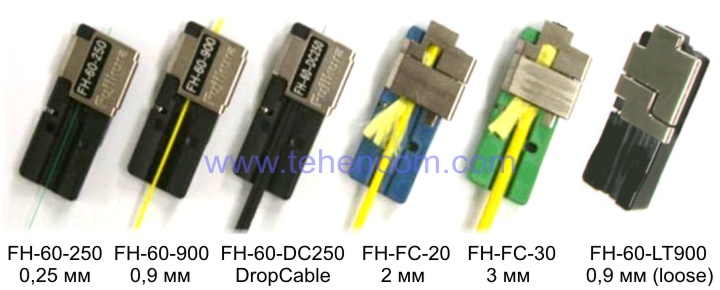

Removable holders Fujikura FH-60 series for different types of fiber buffer:

Fujikura FH-60 series - Detachable fiber holders

- FH-60-250 (for bare fiber 0.25 mm)
- FH-60-900 (for pigtails with 0.9 mm sheath)
- FH-60-DC250 (for 0.25 mm bare fiber with DropCable jacket)
- FH-FC-20 (for patch cords in 2 mm sheath)
- FH-FC-30 (for patch cords in 3 mm sheath)
- FH-60-LT900 (for pigtails in free buffer 0.9 mm)

Description of semi-automatic cleavers Fujikura CT-05A, CT-05B, CT-05 (3 pages; 911 KB)
