USB oscilloscope Pico Technology PicoScope 5244D

Expert's choice
Oscilloscopes PicoScope 5242D, 5243D, 5244D

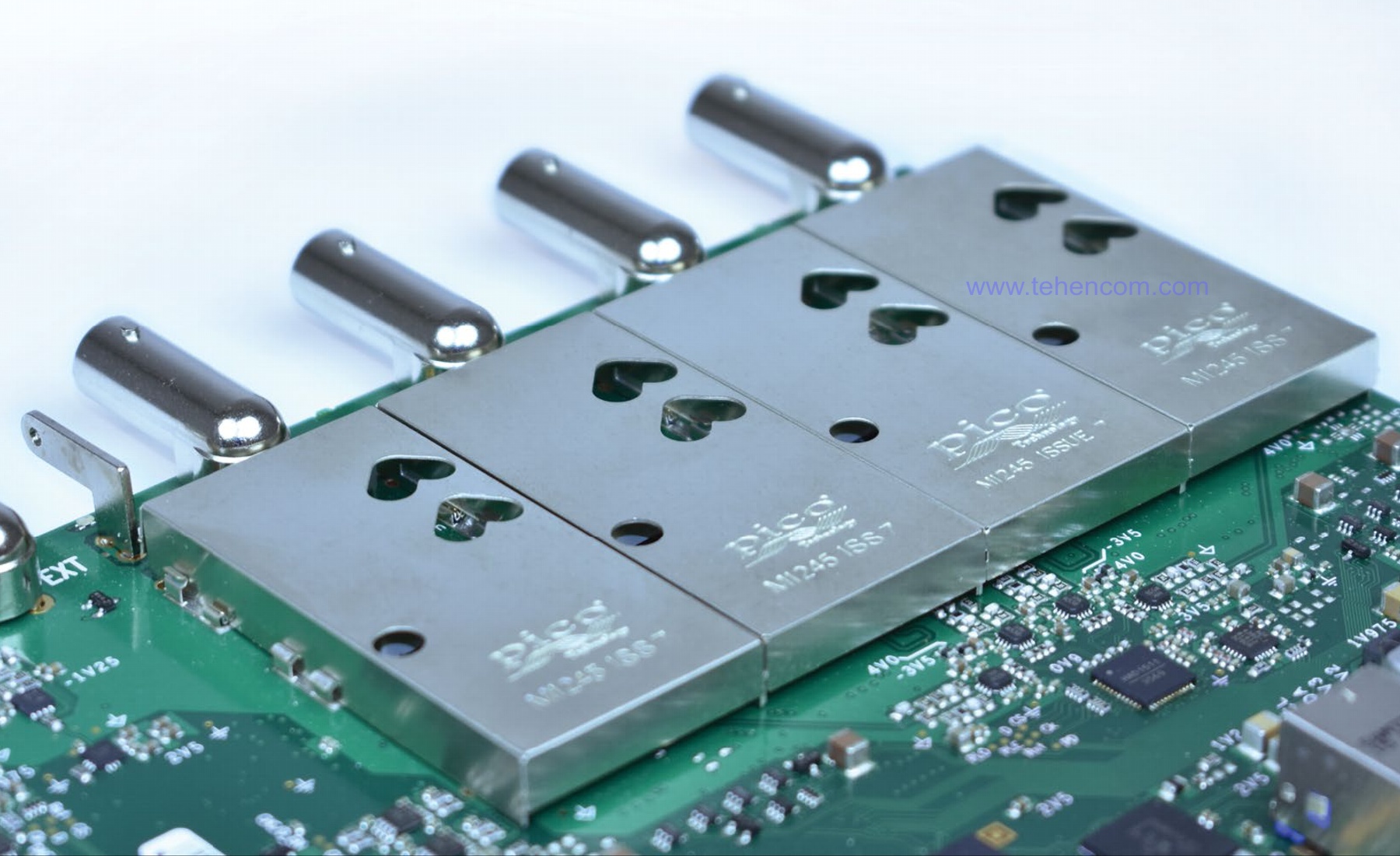

Shielded Inputs of PicoScope 5000D oscilloscopes
PicoScope 5000D series oscilloscope in FlexRes mode (16 bit)

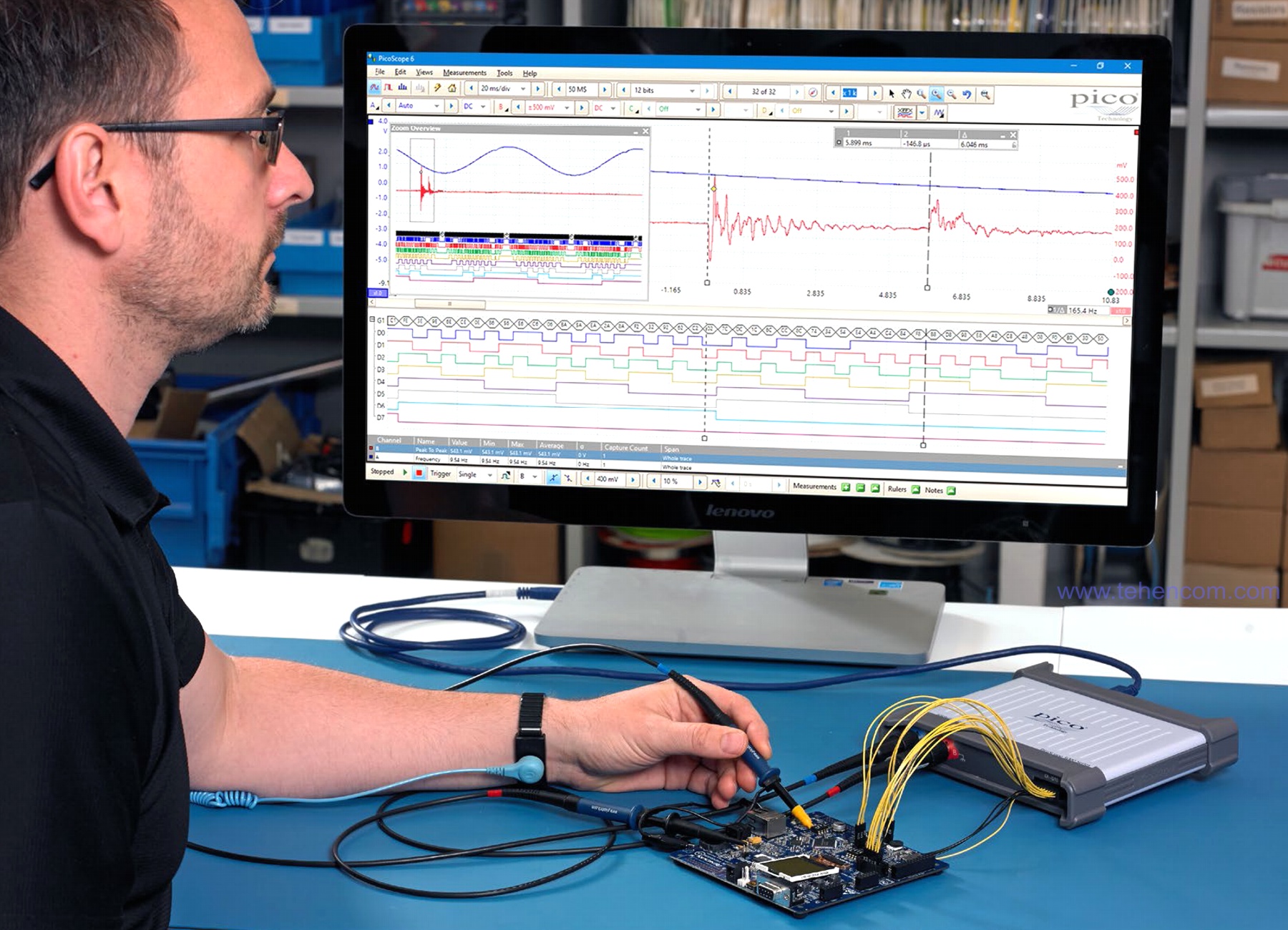

USB oscilloscope PicoScope 5000D MSO in operation
Oscilloscopes PicoScope 5242D, 5243D, 5244D
Shielded Inputs of PicoScope 5000D oscilloscopes
PicoScope 5000D series oscilloscope in FlexRes mode (16 bit)
USB oscilloscope PicoScope 5000D MSO in operation
On order

Product code: 3030042

From 93 558 UAH

Main characteristics

  • Manufacturer:
    Pico Technology (United Kingdom) Official representative
  • Category:
  • Series:
  • Bandwidth:
    200 MHz
  • Analog channels:
    2
  • Sample rate:
    1 GS/s
  • Record length:
    512 M points
  • Vertical resolution:
    8 bits 12 bits 14 bits 15 bits 16 bits
  • Waveforms per second:
    130 000
  • Rise time:
    1.75 ns
  • Maximum sensitivity:
    4 V/div
  • Minimum sensitivity:
    2 mV/div
  • Operating temperature:
    From 0°С to +40°С
  • Width:
    190 mm
  • Height:
    40 mm
  • Depth:
    170 mm
  • Weight:
    0.5 kg

Product description

Pico Technology 5244D is a professional dual-channel USB oscilloscope with 200 MHz bandwidth, 1 GS/s sample rate and 512 M points record length. The hardware resolution of this oscilloscope can be changed in the range from 8 to 16 bits. The continuous acquisition and analysis rate is 130 000 waveforms per second. In the standard configuration, the oscilloscope contains an analyzer of twenty serial protocols, as well as an arbitrary waveform and function generator.

The Pico Technology 5244D oscilloscope is part of the PicoScope 5000D series. Connection to a computer is via USB3 interface, and the oscilloscope is controlled using the PicoScope 6 software, which can be downloaded below on this page in the Documentation section. A programming manual is also available for download.

For more information about this product, see the PicoScope 5000D series page

Contents of delivery

  • oscilloscope Pico Technology PicoScope 5244D (two analog channels 200 MHz) (1 pc.)
  • passive probe TA386 (200 MHz, 1x and 10x, 15 pF) (2 pcs.)
  • USB3 cable, 1.8 meters (1 pc.)
  • user manual in electronic form
  • 1 year warranty
