Keithley 2410 and 2410-C 6.5 Digit Calibrator Series

Product code: 1000698

On order

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Add to cart

SHORT DESCRIPTION

High voltage calibrator-multimeter Keithley 2410 American company Keithley is a multifunctional device that combines the capabilities of a precision voltage source (up to 1000 V) and current (up to 1 A) with an accurate 6.5-digit multimeter (measures voltage, current, resistance). This combination provides three main benefits: simplification and acceleration of testing tasks, cost reduction, reduction in the number of wires and space occupied by devices. The Keithley 2410-C model additionally contains a built-in quality check of the connecting wires before starting the test.

Main characteristics:
Resolution: 6.5 bits. Basic Accuracy (DCV): 0.012%.
Voltage: 5 µV to 1000 V (generation), from 1 µV to 1100 V (measurement).
Current: 50 pA to 1 A (generation), 10 pA to 1.05 A (measurement).
Resistance: from 100 µΩ to 200 MΩ (measurement). Output power: up to 20 W.
4-quadrant operating area (voltage/current generation or load operation).
2-wire, 4-wire and 6-wire connection scheme. Speed: up to 2,081 measurements per second.
Built-in pass/fail comparator for automatic rejection.
Ability to automatically generate a series of control points.
Automatic testing of connection contacts (Model 2410-C).
Free PC software and LabVIEW driver.
Interfaces: IEEE-488.2 (GPIB), RS-232, Keithley Trigger Link. Weight: 3.21 kg.
High voltage multimeter calibrator (SMU) up to 1000 V

Areas of use:
- discrete semiconductor devices
- passive electronic components
- transient suppressors
- microcircuits, including RFICs, MMICs
- laser diodes and diode modules, LED, photodetectors
- protective devices: TVS, MOV, fuses, etc.
- airbags
- connectors, switches, relays
- ultra-bright LEDs (dc and pulsed)
- leakage current testing
- accurate high voltage/current source and meter
- LIV (light-current-voltage)
testing - IDDQ testing
- construction of current-voltage characteristics (CVC)
- Insulation and resistance tests between PCB tracks
- Temperature coefficient
tests - Forward voltage, reverse breakdown voltage and leakage current
tests - Dielectric tests
- Photovoltaic cell efficiency tests (source and load mode)

DETAILED DESCRIPTION

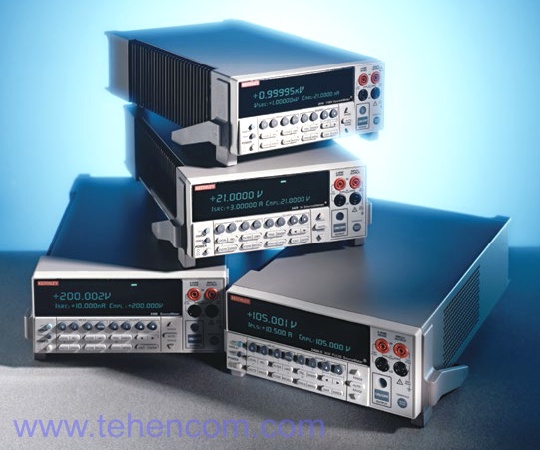

Series 2400 company's multimeter calibrators Keithley specifically designed for measurement applications that require a close relationship between the test signal source and the meter. The calibrator-multimeter in English is called Source Measure Unit (source-measurement device) or abbreviated SMU. All 2400 Series SMUs contain a highly stable voltage and current source, as well as a precision multimeter. The built-in power supply has low noise, high accuracy, and the ability to control the accuracy of the output voltage and current. The built-in multimeter has low noise and high repeatability of measurement results. All these features come together in a single package, resulting in a compact, single-channel DC parametric tester. Also, the Keithley 2400 series multimeter calibrators can operate as a simple voltage, current, voltage, current, resistance meter.

Comparing the Capabilities of the Keithley 2400 Series Multimeter Calibrators

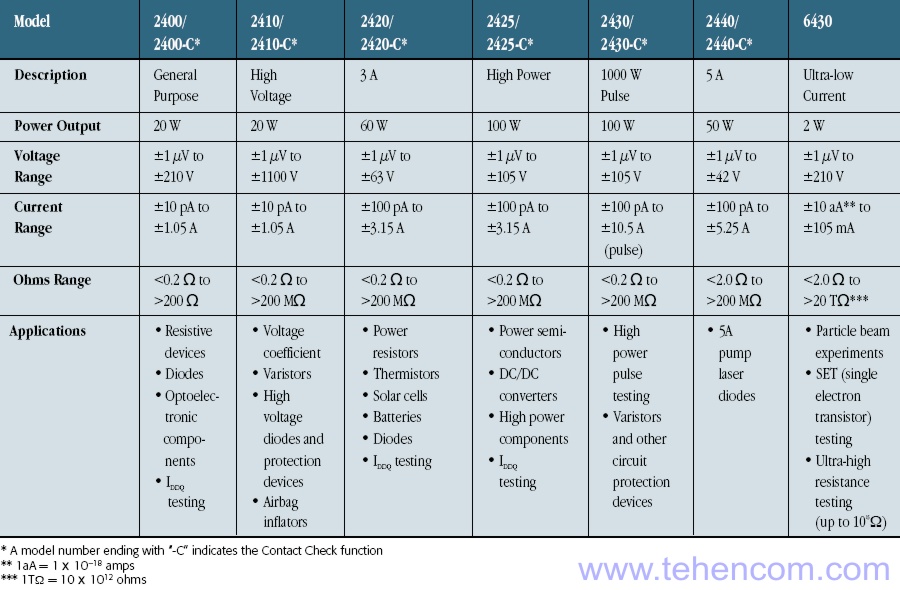

There are currently 8 instrument models in the 2400 series, six of which have the -C modification (automatic test of connection contacts). The series is regularly updated with new models for the optimal solution of various tasks. Below is a comparison table of the capabilities of the series devices.

Keithley 2410 and 2410-C instruments have a 4-quadrant working area

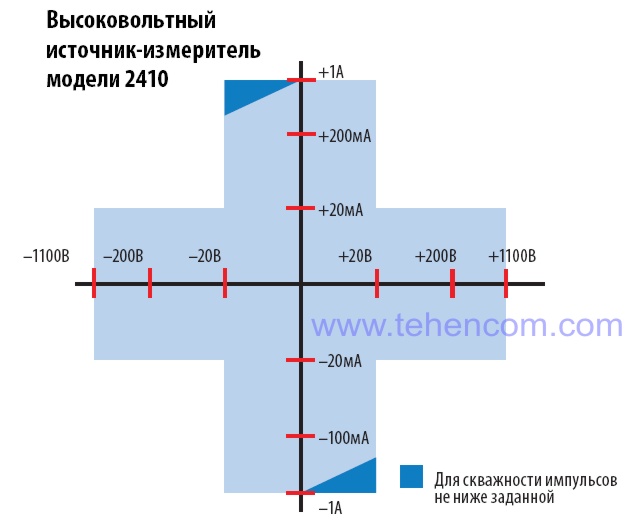

The figure below shows the 4-quadrant working area of the Keithley 2410 and 2410-C instruments, indicating the voltage and current ranges. During operation, voltage/current generation or load operation is possible.

Compact and easy to use with Keithley 2400 Series Multimeter Calibrators

Combining the capabilities of a precision voltage and current source with an accurate multimeter in one instrument provides three key benefits: simplifying and speeding up testing tasks, reducing cost, and reducing the number of wires and space occupied by instruments.

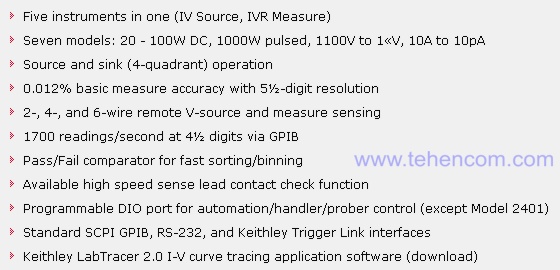

Specifications for Keithley 2410 and 2410-C High Voltage Calibrator Multimeters

Keithley 2410 and 2410-C High Voltage Multimeter Calibrator Kit

Options and accessories for Keithley 2410 and 2410-C High Voltage Multimeter Calibrators
