Linear laboratory power supply with galvanic isolation Keithley 2230-30-3

Name: Linear laboratory power supply Keithley 2230-30-3
Brand: Keithley Instruments
SKU: 3020010
Price: 103200 UAH
Availability: BackOrder

Linear laboratory power supply with galvanic isolation Keithley 2230-30-3

Rear view of linear power supplies Keithley 2230 without IEEE-488

Three Keithley 2230 series isolated power supplies

Example of using a power supply Keithley 2230-30-3 from 2230 series

On order

Product code: 3020010

From 103 200 UAH

Main characteristics

Manufacturer:

Keithley (USA) Official representative
Category:

Laboratory power supplies
Series:

Keithley 2230
Output voltage type:

Direct current (DC)
Number of channels (DC):

3
Maximum output voltage (DC):

30 V
Maximum output current (DC):

3 A
Maximum output power (DC):

195 W
Voltage resolution (DC):

1 mV
Current resolution (DC):

1 mA
Operating principle:

Linear
4-wire sensing:

Yes
Protection modes:

Short circuit protection Temperature protection (OTP)
Built-in devices:

Multimeter (DMM)
Peculiarities:

Adjustable Stabilized Precision Bipolar output Isolated channels Programmable
Connection to computer:

USB RS-232
Operating temperature:

From 0°С to +40°С
Width:

225 mm
Height:

104 mm
Depth:

481 mm
Weight:

9.6 kg

Product description

Keithley 2230-30-3 is a quality laboratory power supply with three galvanically isolated channels. Two channels provide output voltage up to 30 Volts and current up to 3 Amps, and the third channel: voltage up to 5 Volts and current up to 3 Amps. The total power on all three channels reaches 195 Watts. The voltage resolution is 1 mV, and the current resolution is 1 mA. Since all three channels are electrically isolated from each other, they can be connected in series to increase the output voltage, or to obtain a bipolar power supply.

This model is a transformer type with a linear stabilization method, which provides a clean output voltage with a minimum level of ripple. On the rear panel of the power supply are USB and RS-232 interfaces, which are used to connect to a computer. Below on this page you can download the driver for Labview and IVI driver for MATLAB. Model 2230-30-3 is part of the Keithley 2230 series.

For more information about this product, see the Keithley 2230 series page

Contents of delivery

three-channel laboratory power supply Keithley 2230-30-3 (1 pc.)
15-pin screw terminal block (1 pc.)
USB cable 1.5 meters (1 pc.)
power cable (1 pc.)
user manual in electronic form
calibration certificate
1 year warranty

Additional options

Keithley KickStart Software
Product code: 9750018
On order Expert choice

Computer software for controlling Keithley instruments and processing measurement results. Compatible with generators, multimeters, laboratory power supplies and other types of Keithley and Tektronix equipment.

From 17 202 UAH

Additional accessories

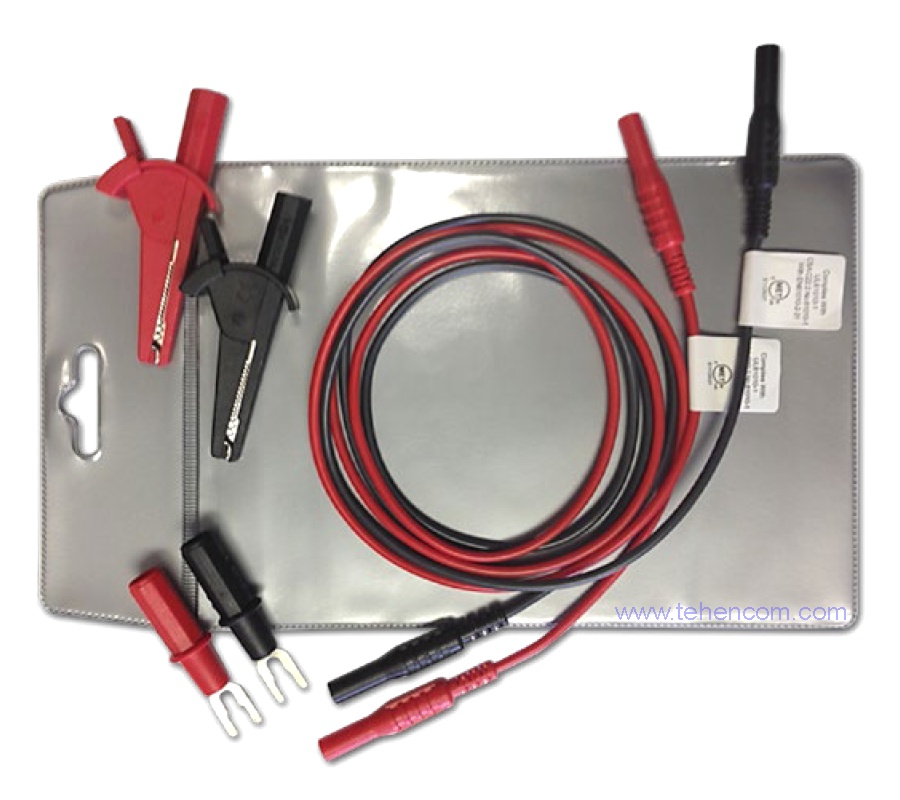

Keithley 2280-TSET-LEAD

Product code: 9750019
On order Expert choice

A pair of universal power cables for laboratory power supplies and multimeters. Length 1.2 meters, voltage up to 1 000 V, current up to 20 A. Interchangeable tips: banana plug, alligator clip, U type terminal.

From 3 228 UAH
