High voltage laboratory power supply ITECH IT6723G, 600 V, 5 A, 850 W

ITECH IT6700H series typical high voltage laboratory power supply (from 300 V)

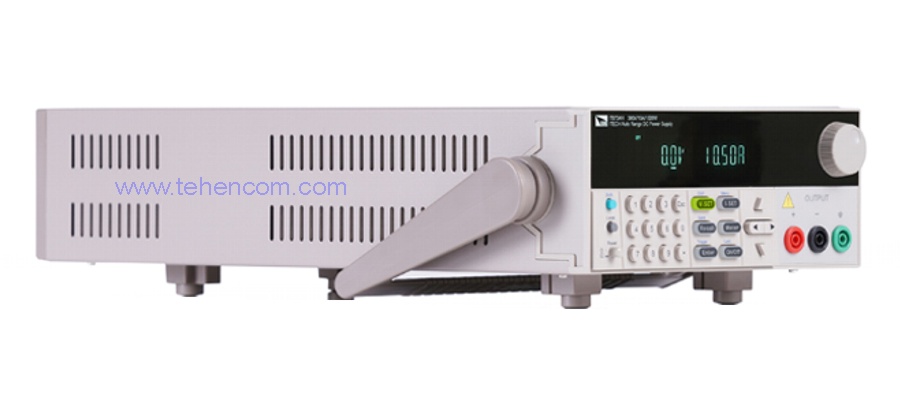

Typical high voltage power supply of the ITECH IT6700H series (side view 1)
Typical high voltage power supply of the ITECH IT6700H series (side view 2)
Typical high voltage power supply of the ITECH IT6700H series (side view 3)
Typical power supply of the ITECH IT6700H series (up to 1500 W, back view)
Typical high voltage power supply of the ITECH IT6700H series (side view 4)
Typical high voltage power supply of the ITECH IT6700H series (side view 5)

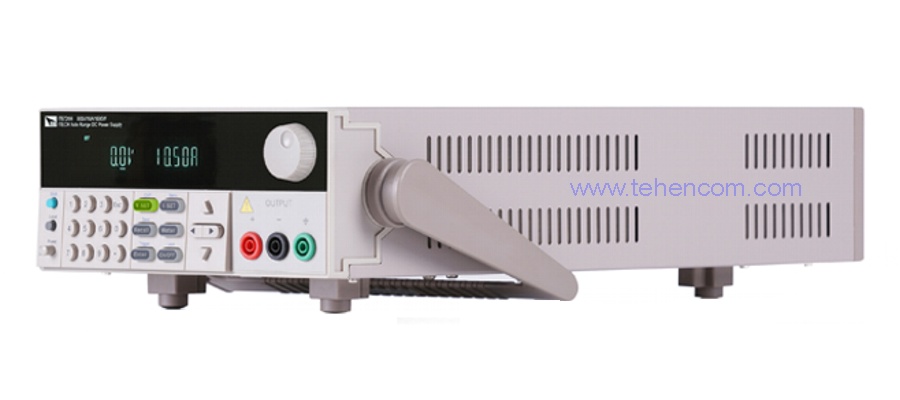

Typical high voltage power supply of the ITECH IT6700H series (side view 6)

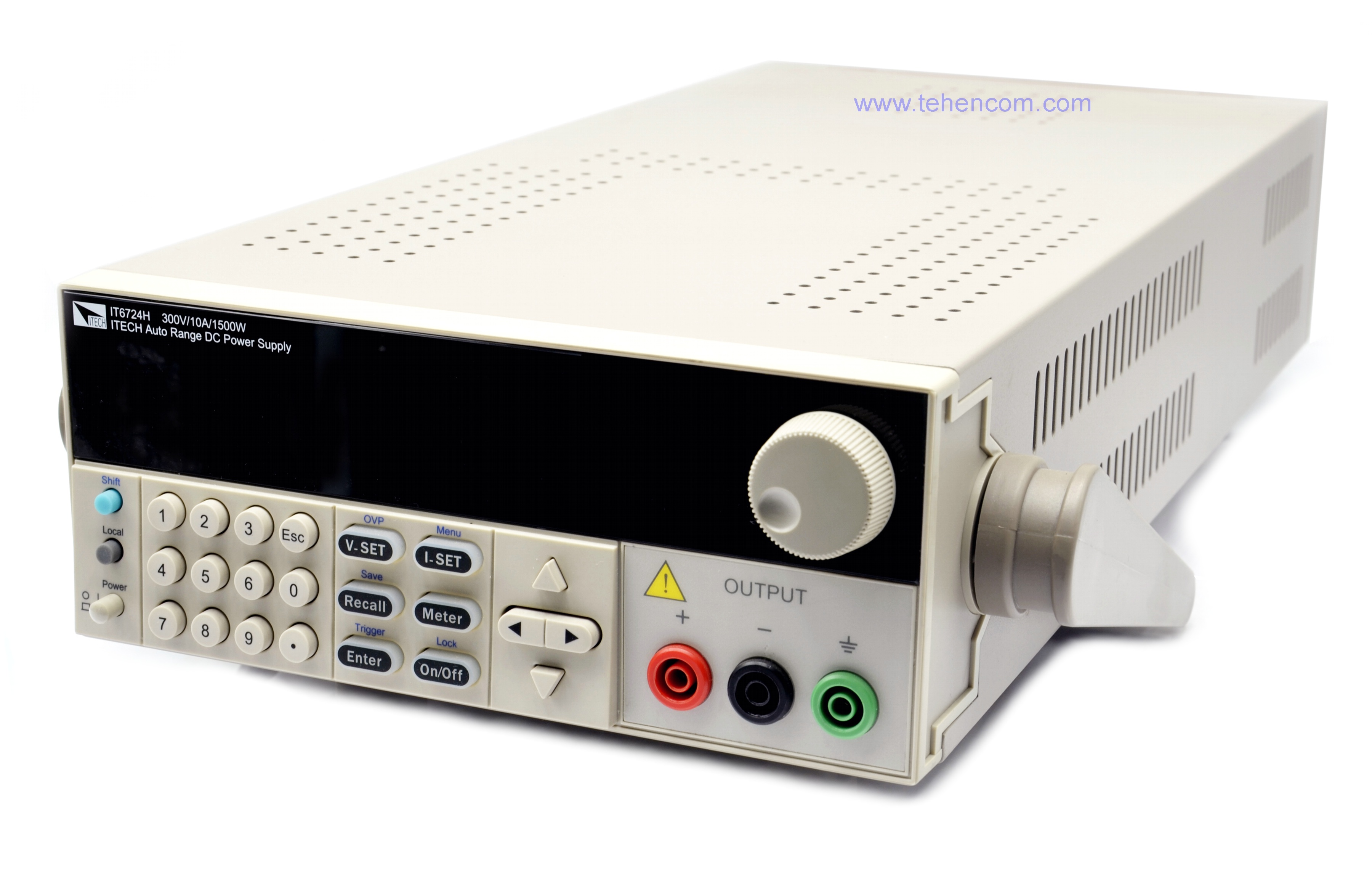

ITECH IT6700H series high voltage power supply (model IT6724H)
ITECH IT6700H series typical high voltage laboratory power supply (from 300 V)
Typical high voltage power supply of the ITECH IT6700H series (side view 1)
Typical high voltage power supply of the ITECH IT6700H series (side view 2)
Typical high voltage power supply of the ITECH IT6700H series (side view 3)
Typical power supply of the ITECH IT6700H series (up to 1500 W, back view)
Typical high voltage power supply of the ITECH IT6700H series (side view 4)
Typical high voltage power supply of the ITECH IT6700H series (side view 5)
Typical high voltage power supply of the ITECH IT6700H series (side view 6)
ITECH IT6700H series high voltage power supply (model IT6724H)
On order

Product code: 3020138

From 60 684 UAH

Main characteristics

  • Manufacturer:
    ITECH (Taiwan) Official representative
  • Category:
  • Series:
  • Output voltage type:
  • Number of channels (DC):
  • Maximum output voltage (DC):
    600 V
  • Maximum output current (DC):
    5 A
  • Maximum output power (DC):
    850 W
  • Voltage resolution (DC):
    100 mV
  • Current resolution (DC):
    10 mA
  • Operating principle:
  • 4-wire sensing:
    Yes
  • Protection modes:
    Voltage protection (OVP, UVP) Current protection (OCP) Temperature protection (OTP) Short circuit protection
  • Built-in devices:
    Multimeter (DMM)
  • Peculiarities:
  • Connection to computer:
    USB GPIB (IEEE-488.2) RS-232
  • Operating temperature:
    From 0°С to +40°С
  • Width:
    255 mm
  • Height:
    109 mm
  • Depth:
    483 mm
  • Weight:
    6 kg

Product description

ITECH IT6723G is a high voltage DC power supply with an output voltage of up to 600 V and a current of up to 5 A. The maximum power delivered to the load is 850 W. The IT6723G power supply has a list mode (up to 150 steps), all types of overload protection and the ability to connect in a 4-wire circuit for increased accuracy at high current.

To connect to a computer, the ITECH IT6723G high voltage power supply contains USB, IEEE-488 and RS-232 interfaces. Remote control can be performed using a free program or use the driver for LabVIEW, which can be downloaded below on this page in the Documentation section. Model IT6723G is part of the ITECH IT6700H series.

For more information about this product, see the ITECH IT6700H series page

Contents of delivery

  • high voltage laboratory power supply ITECH IT6723G (1 pc.)
  • USB cable (1 pc.)
  • power cable (1 pc.)
  • user manual in electronic form
  • calibration certificate
  • 1 year warranty
