Hameg brand products

Tehencom company supplies the entire range of the Hameg brand: oscilloscopes (HMO, HM series), spectrum analyzers (HMS series), power supplies, modular measuring systems, and also provides service, warranty and post-warranty maintenance.

Hameg Laboratories

Company Hameg was founded in Germany in 1957 and specializes in the development and production of inexpensive and reliable measuring equipment with an excellent price-quality ratio. Since 2005, Hameg has been part of the German measuring technology manufacturer Rohde & Schwarz.

Hameg catalog (in Russian) (92 pages; 8.4 MB)

Products of the Hameg brand contains several directions:
- oscilloscopes and probes
- spectrum analyzers
- laboratory power supplies (LPS)

A variety of measuring instruments from Hameg

Below are the most popular models of the Hameg equipment. Regarding prices and delivery times for the entire range of instrumentation, simply call us or write to us at E-mail and we will be happy to answer your questions.

Model A photo Short description
Entry-level oscilloscopes of the Hameg brand
Hameg
HMO722
HMO724 		Hameg HMO700 - 70 MHz Mixed Signal Oscilloscope Series (Models: HMO722, HMO724)

Product code: 1000744

 Hameg HMO700 Series Mixed Signal Oscilloscopes with 70 MHz bandwidth
70 MHz, 2 GS/s, 2 channels + 8 digital channels (model HMO722).
70 MHz, 2 GS/s, 4 channels + 8 digital channels (model HMO724).
Digital channels require the HO3508 logic probe.
Record length: 1 million points to the channel. Sensitivity: 1 mV/div to 10 V/div.
Continuous waveform capture rate: up to 2,000 waveforms/s.
Hardware decoding and triggering on I2C, SPI, UART/RS-232 buses (HOO10/HOO11 options) and CAN, LIN buses (HOO12 option). Hardware frequency counter for 6 digits. Discrete component tester. Up to 64K FFT points.
28 automatic measurements, mathematical signal processing. Automatic search for user-defined events. Pass/fail testing.
Color LCD screen 16.5 cm (resolution 640 x 480).
Quiet cooling fan. Interfaces are standard: USB (for a flash drive), DVI-D.
Optional interfaces: USB (for control), RS-232, IEEE-488 (GPIB). Weight: 2.5 kg.
Good standard equipment, compact and light

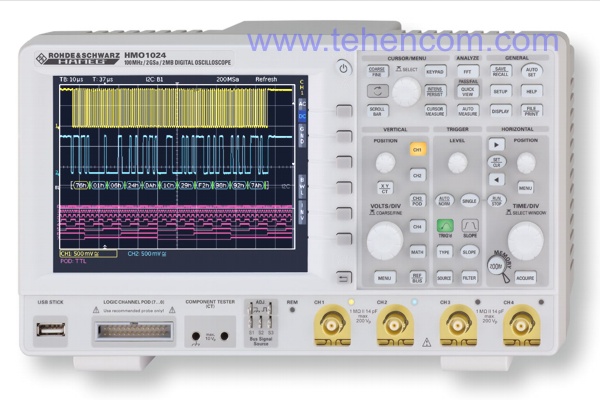

Hameg
HMO1022
HMO1024 		Hameg HMO1000 - 100MHz Bandwidth Mixed Signal Oscilloscope Series (Models: HMO1022, HMO1024)

Product code: 1000745

 Hameg HMO1000 Series Mixed Signal Oscilloscopes with 100 MHz bandwidth
100 MHz, 2 GS/s, 2 channels + 8 digital channels (model HMO1022).
100 MHz, 2 GS/s, 4 channels + 8 digital channels (model HMO1024).
Digital channels require the HO3508 logic probe.
Record length: 1 million points to the channel. Sensitivity: 1 mV/div to 10 V/div.
Continuous waveform capture rate: up to 2,000 waveforms/s.
Hardware decoding and triggering on I2C, SPI, UART/RS-232 buses (HOO10/HOO11 options) and CAN, LIN buses (HOO12 option). Hardware frequency counter for 6 digits. Discrete component tester. Up to 64K FFT points.
28 automatic measurements, mathematical signal processing. Automatic search for user-defined events. Pass/fail testing.
Color LCD screen 16.5 cm (resolution 640 x 480).
Quiet cooling fan. Interfaces are standard: USB (for a flash drive), DVI-D.
Optional interfaces: USB (for control), RS-232, IEEE-488 (GPIB). Weight: 2.5 kg.
Good standard equipment, compact and light
Mid-range oscilloscopes of the Hameg brand

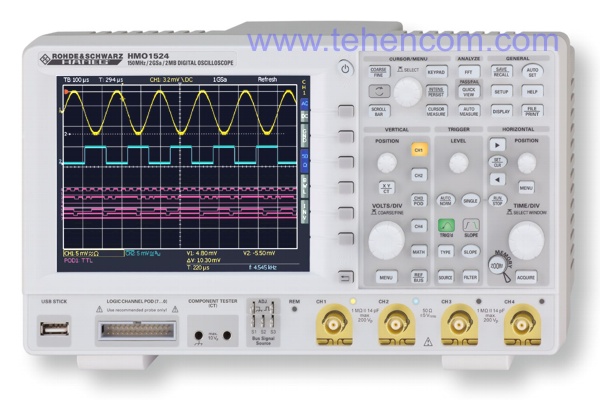

Hameg
HMO1522
HMO1524 		Hameg HMO1500 - 150MHz Bandwidth Mixed Signal Oscilloscope Series (Models: HMO1522, HMO1524)

Product code: 1000746

 Hameg HMO1500 Series 150 MHz Mixed Signal Oscilloscopes
150 MHz, 2 GS/s, 2 channels + 8 digital channels (model HMO1522).
150 MHz, 2 GS/s, 4 channels + 8 digital channels (model HMO1524).
Digital channels require the HO3508 logic probe.
Record length: 1 million points to the channel. Sensitivity: 1 mV/div to 10 V/div.
Continuous waveform capture rate: up to 2,000 waveforms/s.
Hardware decoding and triggering on I2C, SPI, UART/RS-232 buses (HOO10/HOO11 options) and CAN, LIN buses (HOO12 option). Hardware frequency counter for 6 digits. Discrete component tester. Up to 64K FFT points.
28 automatic measurements, mathematical signal processing. Automatic search for user-defined events. Pass/fail testing.
Color LCD screen 16.5 cm (resolution 640 x 480).
Quiet cooling fan. Interfaces are standard: USB (for a flash drive), DVI-D.
Optional interfaces: USB (for control), RS-232, IEEE-488 (GPIB). Weight: 2.5 kg.
Good standard equipment, compact and light
Hameg
HMO2022
HMO2024 		Hameg HMO2000 - 200 MHz Mixed Signal Oscilloscope Series (Models: HMO2022, HMO2024)

Product code: 1000747

 Hameg HMO2000 Series Mixed Signal Oscilloscopes with 200 MHz bandwidth
200 MHz, 2 GS/s, 2 channels + 8 digital channels (model HMO2022).
200 MHz, 2 GS/s, 4 channels + 8 digital channels (model HMO2024).
Digital channels require the HO3508 logic probe.
Record length: 1 million points to the channel. Sensitivity: 1 mV/div to 10 V/div.
Continuous waveform capture rate: up to 2,000 waveforms/s.
Hardware decoding and triggering on I2C, SPI, UART/RS-232 buses (HOO10/HOO11 options) and CAN, LIN buses (HOO12 option). Hardware frequency counter for 6 digits. Discrete component tester. Up to 64K FFT points.
28 automatic measurements, mathematical signal processing. Automatic search for user-defined events. Pass/fail testing.
Color LCD screen 16.5 cm (resolution 640 x 480).
Quiet cooling fan. Interfaces are standard: USB (for a flash drive), DVI-D.
Optional interfaces: USB (for control), RS-232, IEEE-488 (GPIB). Weight: 2.5 kg.
Good standard equipment, compact and light

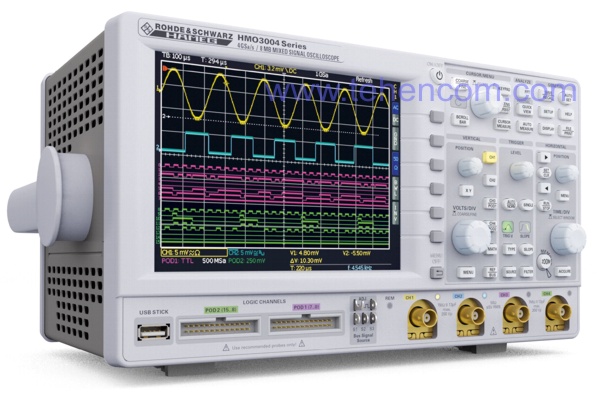

Hameg
HMO3032
HMO3034
HMO3042
HMO3044
HMO3052
HMO3054 		Hameg HMO3000 - 300MHz to 500MHz Mixed Signal Oscilloscope Series (Models: HMO3032, HMO3034, HMO3042, HMO3044, HMO3052, HMO3054)

Product code: 1000748

 Hameg HMO3000 Series Mixed Signal Oscilloscopes from 300 MHz to 500 MHz
300 MHz, 4 GS/s, 2 channels + 16 digital channels (model HMO3032).
300 MHz, 4 GS/s, 4 channels + 16 digital channels (model HMO3034).
400 MHz, 4 GS/s, 2 channels + 16 digital channels (model HMO3042).
400 MHz, 4 GS/s, 4 channels + 16 digital channels (model HMO3044).
500 MHz, 4 GS/s, 2 channels + 16 digital channels (model HMO3052).
500 MHz, 4 GS/s, 4 channels + 16 digital channels (model HMO3054).
Digital channels require a HO3508 or HO3516 logic probe.
Record length: 4 million points to the channel. Sensitivity: 1 mV/div to 5 V/div.
Continuous waveform capture rate: up to 5,000 waveforms/s.
Possibility to expand the bandwidth up to 500 MHz using a software key.
Hardware decoding and triggering on I2C, SPI, UART/RS-232 buses (HOO10/HOO11 options) and CAN, LIN buses (HOO12 option). Hardware frequency counter for 6 digits.
Up to 64K real-time FFT points (dBm, dBV, Veff).
21 automatic measurements, mathematical signal processing. Automatic search for user-defined events. Pass/fail testing.
LCD screen 16.5 cm (resolution 640 x 480). Interfaces are standard: USB (for a flash drive), DVI-D.
Optional interfaces: USB (for control), RS-232, IEEE-488 (GPIB). Weight: 3.6 kg.
Good standard equipment, bandwidth extension possible
