Compact 2-slot EXFO FTB-200 v2 measurement platform

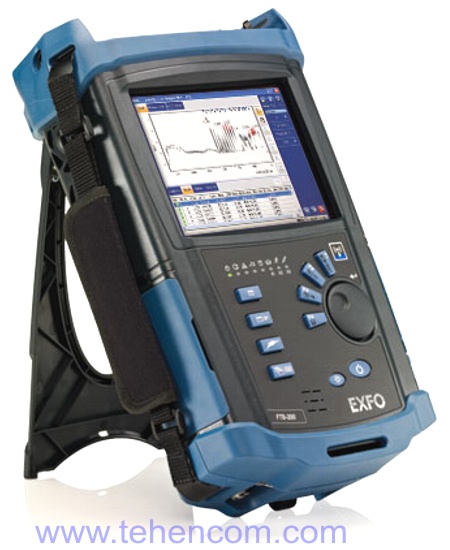

Compact measuring platform EXFO FTB-200 v2

Product code: 1000807

Check availability Discontinued

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Out of production. Recommended replacement: EXFO FTB-2 Pro



MAIN CHARACTERISTICS

Since its first release in 2006, the FTB-200 platform has set a new standard for application-based measurement solutions. Therefore, it made sense for EXFO to build on this success and create new solutions based on this intelligent platform and offer its customers the best platform available today - FTB-200 v2 (development 2010).

EXFO, in close contact with its customers who use these platforms every day, and with tens of thousands of platforms around the world, has added the necessary functionality that has improved and simplified the work with the platform.

Among the innovations: significant acceleration of processing of measurement results, wireless and mobile, web browsing, PDF printing, screen capture and VT100 terminal emulation.

Today's multimedia networks require flexible, efficient and cost-effective measurement solutions. The FTB-200 v2 delivers unparalleled speed and advanced tooling that provides increased autonomy and performance for multi-service testing in the field.

EXFO FTB-200 v2 - side view



Technical features of the compact measuring platform EXFO FTB-200 v2

- CWDM network measurement at eight wavelengths
- 40G and ROADM commissioning with an optical spectrum analyzer
- Multi-service testing with next generation SONET/SDH analyzer
- Building links and performing fiber measurements with OTDR, loss, dispersion and optical modules tester
- activation of business services with the help of OTDR and Ethernet test modules
- testing of transport Ethernet from 10 Mbps to 10 Gbps

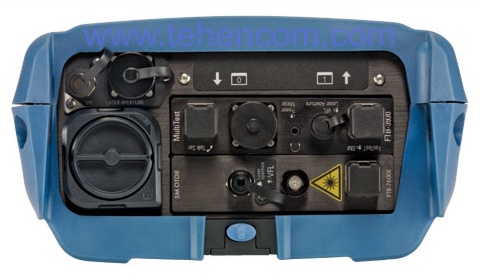

EXFO FTB-200 v2 - top view



Delivering unparalleled performance

The FTB-200 v2 platform, providing the same compatibility as the previous FTB-200 version, now uses a powerful processor Intel ATOM, which delivers exceptional speed and unrivaled performance for even the most demanding applications.

Increase the performance of the EXFO FTB-200 v2 platform



A wide range of modules for the EXFO FTB-200 v2 compact measurement platform

The EXFO FTB-500 platform is compatible with these modules for analyzing telecommunication protocols:
- FTB-8120NGE, FTB-8130NGE - 10G SDH / Ethernet analyzer modules
- FTB-8120, FTB-8130 - 10G SDH / SONET / OTN analyzer modules
- FTB-8510G - 10G Ethernet analyzer module (including IPv6)
- FTB-8115 - SDH / SONET analyzer module up to 2.5 Gbps
- FTB-8510B - Ethernet analyzer module (including IPv6) up to 1 Gbps
- FTB-8105 - PDH / SDH analyzer module up to 155 Mbps

The EXFO FTB-500 platform is compatible with these modules for WALLS:
- FTB-5240S - optical spectrum analyzer module
- FTB-5700 - one-way analyzer module for HD and PMD dispersion
- FTB-3930 - MultiTest multifunctional loss tester module
- FTB-7600E - reflectometer module (50 dB) for ultra-trunks
- FTB-7500E - reflectometer module (45 dB) for highways
- FTB-7400E - reflectometer module (42 dB) for trunks and CWDM
- FTB-7300E - reflectometer module (39 dB) for PON FTTx / MDU
- FTB-7200D - reflectometer module (36 dB) single-mode + multi -mode
- FIP-400 - compact microscope (magnification: 200 and 400 times)

Examples of modules for the universal measuring platform EXFO FTB-200



Next Generation 10G SDH/Ethernet Analyzer Modules FTB-8120NGE, FTB-8130NGE Power Blazer for EXFO FTB-200 Platform

SDH/SONET/OTN/PDH/DSn: DS0/E0 to STM-64/OTU2.
Ethernet LAN/WAN: 10 Mbps to 10 Gbps.
Fiber Channel: 1x, 2x, 4x and 10x.
Support next generation SDH/SONET testing.
Compatible with EtherSAM test standard (ITU-T Y.156sam).
Size: 2 slots. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of 10G SDH / Ethernet EXFO analyzer modules FTB-8120NGE, FTB-8130NGE

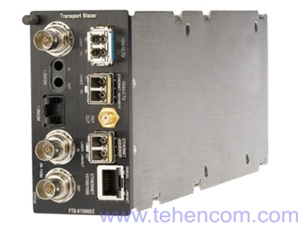

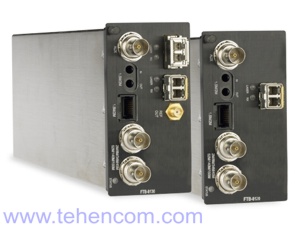

Next Generation 10G SDH/Ethernet Analyzer Modules FTB-8120NGE, FTB-8130NGE Power Blazer FTB-8120NGE, FTB-8130NGE Power Blazer Next Generation 10G SDH/Ethernet Analyzer Module Program Screenshot



Next Generation 10G SDH/SONET Analyzer Modules FTB-8120, FTB-8120NG, FTB-8130, FTB-8130NG Transport Blazer for EXFO FTB-200 Platform

SDH/SONET/OTN/PDH/DSn: DS0/E0 to STM-64/OTU2.
Support next generation SDH/SONET testing.
Supports Ethernet-over-SONET/SDH (EoS) testing.
Size: 2 slots. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of 10G SDH / SONET / OTN Analyzer Modules EXFO FTB-8120, FTB-8130

Next Generation 10G SDH/SONET Analyzer Modules FTB-8120, FTB-8120NG, FTB-8130, FTB-8130NG Transport Blazer FTB-8120, FTB-8120NG, FTB-8130, FTB-8130NG Transport Blazer Next Generation 10G SDH/SONET Analyzer Module Program Screenshot

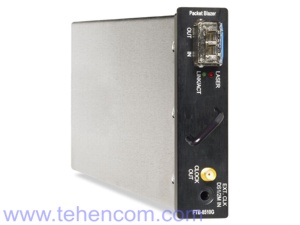

FTB-8510G Packet Blazer 10G Ethernet Analyzer Module for EXFO FTB-200 Platform

Ethernet LAN/WAN: 10 Gbps.
IPv4 support /IPv6, MPLS, MPLS-TP and PBB-TE.
Conducting tests BERT and RFC 2544. Packet jitter measurement.
Multithreaded testing with QoS verification by VLAN.
Compatible with EtherSAM test standard (ITU-T Y.156sam).
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
10G Ethernet Analyzer Module Description (including IPv6) EXFO FTB-8510G

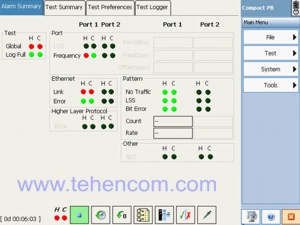

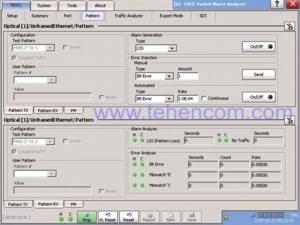

FTB-8510G Packet Blazer 10G Ethernet Analyzer Module FTB-8510G Packet Blazer 10G Ethernet Analyzer Module Program Screenshot

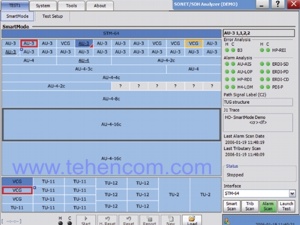

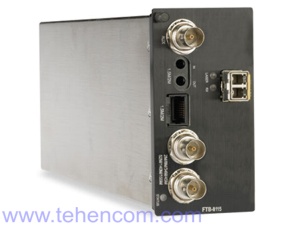

2.5G SDH/SONET FTB-8115 Transport Blazer Analyzer Module for EXFO FTB-200 Platform

Ethernet LAN/WAN: 10 Gbps.
SDH/SONET/PDH/DSn: DS0/E0 to STM-16.
SmartMode for automatic signal structure detection with simultaneous real-time monitoring of all channels.
Size: 2 slots. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of SDH / SONET analyzer module up to 2.5 Gbps EXFO FTB-8115

FTB-8115 Transport Blazer 2.5G SDH/SONET Analyzer Module 2.5G SDH/SONET FTB-8115 Transport Blazer Analyzer Module Program Screenshot

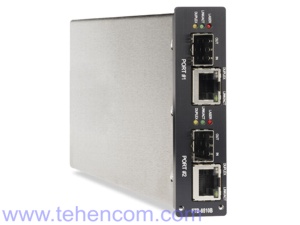

FTB-8510B Packet Blazer 1G Ethernet Analyzer Module for EXFO FTB-200 Platform

Ethernet: 10 Mbps to 1 Gbps.
Fiber Channel: 1x, 2x.
IPv4 support /IPv6, PBB-TE (MAC-in-MAC), MPLS, MPLS-TP and 802.3ah.
Conducting tests BERT and RFC 2544. Analysis IPTV.
Multithreaded testing with QoS verification by VLAN.
Compatible with EtherSAM test standard (ITU-T Y.156sam).
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Ethernet analyzer module description (including IPv6) up to 1 Gbps EXFO FTB-8510B

FTB-8510B Packet Blazer 1G Ethernet Analyzer Module FTB-8510B Packet Blazer 1G Ethernet Analyzer Module Program Screenshot

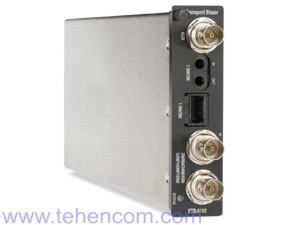

PDH / DSn and SDH / SONET electrical interface analyzer module up to 155 Mbps FTB-8105 Transport Blazer for EXFO FTB-200 platform

SDH/SONET/PDH/DSn: DS0/E0 to STM-1.
Two Rx DSn. SmartMode for automatic signal structure detection with simultaneous real-time monitoring of all channels.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of PDH / SDH analyzer module up to 155 Mbps EXFO FTB-8105

PDH / DSn and SDH / SONET Electrical Interface Analyzer Module up to 155 Mbps FTB-8105 Transport Blazer PDH / DSn and SDH / SONET up to 155 Mbps FTB-8105 Transport Blazer Electrical Interface Analyzer Module Program Screenshot



FTB-5240S optical spectrum analyzer module for EXFO FTB-200 platform

Wavelength range: 1250 nm - 1650 nm.
Dynamic Range: -80 dBm to +18 dBm (+23 dBm optional).
Wavelength measurement error: from 0.01 to 0.05 nm.
Power measurement error: 0.5 dB.
More than 90 dB dynamic range.
In-band OSNR measurement (models FTB-5240S-P and FTB-5240BP).
Supports any channel multiplexing: from 25 GHz DWDM to CWDM.
Support system testing ROADM and 40 Gbit/s.
Size: 2 slots. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the EXFO FTB-5240S Optical Spectrum Analyzer Module

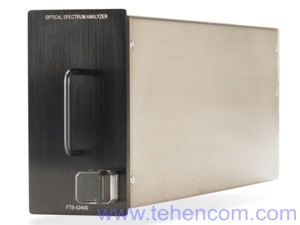

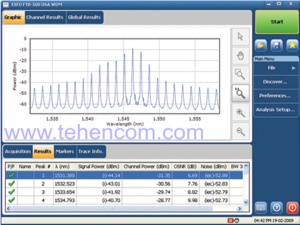

Optical Spectrum Analyzer Module FTB-5240S FTB-5240S Optical Spectrum Analyzer Module Program Screenshot

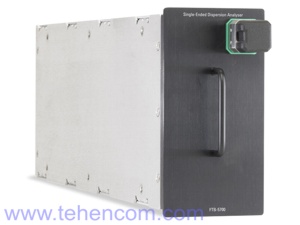

FTB-5700 One-way CD and PMD Dispersion Analyzer Module for EXFO FTB-200 Platform

Measurement chromatic and polarization mode dispersion.
Wavelengths: from 1475 to 1626 nm.
Dynamic Range: 25 dB (with 32 dB reflector).
Maximum fiber length measured: 120 km (with reflector 140 km).
Chromatic dispersion (HD):
Number of points: 8. Accuracy: ±10 ps/nm. Measurement time: 40 s.
Polarization Mode Dispersion (PMD):
Measuring range: 0.1 - 20 ps. Measurement time: less than 180 s.
Does not require installation of a source at the far end of the fiber. A reflector can be used to improve performance.
Size: 2 slots. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the EXFO FTB-5700 one-way analyzer module

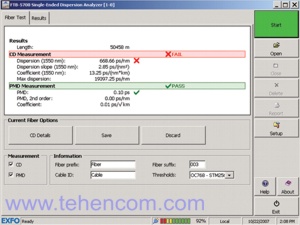

FTB-5700 One-way CD/PMD Dispersion Analyzer Module Screenshot of FTB-5700 one-way CD and PMD dispersion analyzer module



FTB-3930 Series MultiTest Loss Tester Module for EXFO FTB-200 Platform

Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm (depending on model).
Detector type: Ge (FTB-3932), GeX (FTB-3932X), InGaAs (FTB-3933).
Up to 42 calibrated wavelengths in power meter mode.
Contains up to eight measuring tools. FTT support.
Fast Auto Test (FasTesT): Insertion and Return Loss (ORL) measurement on 3 waves in two directions less than 10 seconds.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the MultiTest FTB-3930 Multifunctional Loss Tester Module

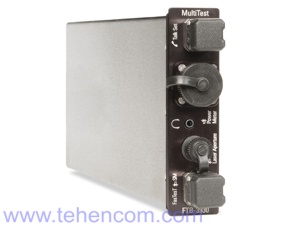

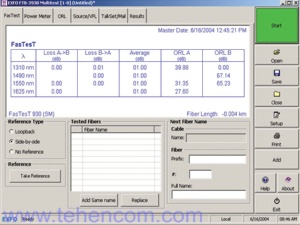

FTB-3930 Series MultiTest Loss Tester Module Screenshot of FTB-3930 Series MultiTest Multifunction Loss Tester Module Program



FTB-7600E Ultra-Tube Optical Reflectometer Module for EXFO FTB-200 Platform

Wavelengths: 1310, 1550, 1625 nm (depending on the model).
Dynamic Range: up to 50 dB. Dead zone by events: up to 1 m. Attenuation dead zone: up to 5 m. Number of reflectogram points: up to 256,000. For testing ultra-long highways.
A visual flaw detector (VFL) is integrated into the module.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the reflectometer module (50 dB) for ultra-trunks EXFO FTB-7600E

Ultra-Tube Optical Reflectometer Module FTB-7600E Screenshot of the FTB-7600E optical reflectometer module for ultra-trunks



FTB-7500E Long Haul Optical Reflectometer Module for EXFO FTB-200 Platform

Wavelengths: 1310, 1550, 1625 nm (depending on the model).
Dynamic Range: up to 45 dB. Dead zone by events: up to 0.8 m. Attenuation dead zone: up to 4 m. Number of reflectogram points: up to 256,000. For testing extended highways.
A visual flaw detector (VFL) is integrated into the module.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the reflectometer module (45 dB) for EXFO FTB-7500E trunks

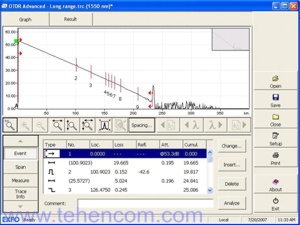

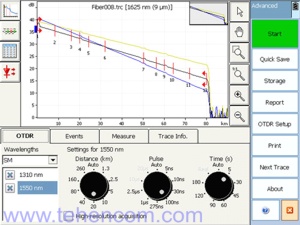

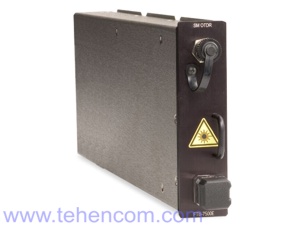

Long Range Optical Reflectometer Module FTB-7500E Screenshot of FTB-7500E optical reflectometer module for extended highways



FTB-7400E Optical OTDR Module for Trunk and CWDM for EXFO FTB-200 Platform

Wavelengths: 1310, 1383, 1550, 1625 nm and CWDM (depending on the model).
Dynamic Range: up to 42 dB. Dead zone by events: up to 0.8 m. Attenuation dead zone: up to 4 m. Number of trace points: up to 256,000. For testing highways and CWDM.
A visual flaw detector (VFL) can be integrated into the module.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the reflectometer module (42 dB) for trunks and CWDM EXFO FTB-7400E

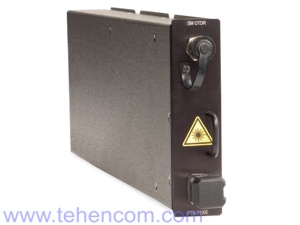

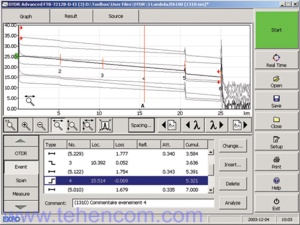

Optical Reflectometer Module for Trunk and CWDM FTB-7400E Screenshot of FTB-7400E optical reflectometer module for highways and CWDM

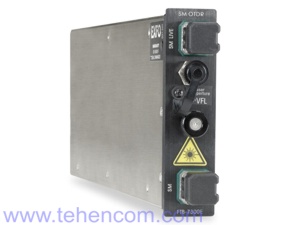

Optical Reflectometer Module for PON FTTx / MDU FTB-7300E for EXFO FTB-200 Platform

Wavelengths: 1310, 1490, 1550, 1625, 1650 nm (depending on model).
It is possible to have a separate port (with a filter) at 1625 or 1650 nm.
Dynamic Range: up to 39 dB. Dead zone by events: up to 0.8 m. Attenuation dead zone: up to 4 m. Number of reflectogram points: up to 256,000. Testing of passive optical networks (POUNDS) with splitters up to 1x128. A visual flaw detector (VFL) can be integrated into the module.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of the reflectometer module (39 dB) for PON FTTx / MDU EXFO FTB-7300E

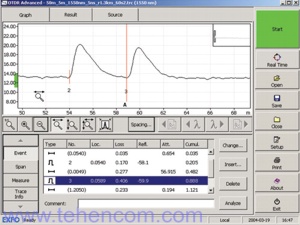

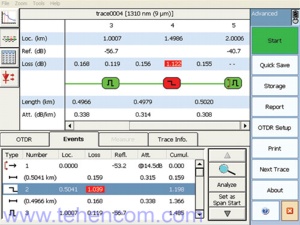

Optical Reflectometer Module for PON FTTx / MDU FTB-7300E Screenshot of the optical reflectometer module for PON FTTx / MDU FTB-7300E



FTB-7200D single-mode + multi-mode optical reflectometer module for EXFO FTB-200 platform

Wavelengths: 850, 1300 nm (multimode), 1310, 1550 nm (single mode).
Dynamic Range: up to 36 dB. Dead zone by events: up to 1 m. Attenuation dead zone: up to 4.5 m. Number of trace points: up to 128,000. For testing local lines.
A visual flaw detector (VFL) can be integrated into the module.
Size: 1 slot. Compatible with EXFO platforms FTB-500 and FTB-200.
Description of reflectometer module (36 dB) single-mode + multi-mode EXFO FTB-7200D

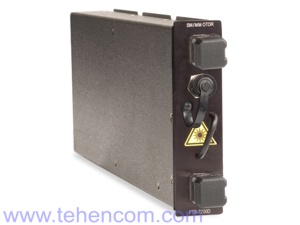

Optical Reflectometer Module single-mode + multi-mode FTB-7200D Screenshot of FTB-7200D single-mode + multi-mode optical reflectometer module program

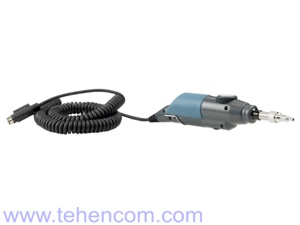

EXFO FIP-400 fiber optic video microscope for EXFO FTB-200 platform

Magnification: 200 or 400 (depending on the model).
Safe for the eyes. It is possible to save the image on a computer.
With the help of interchangeable nozzles, it can be connected to patch cords and patch panels of the following types: FC, SC, LC, ST, SMA, E2000, D4, Lemo, MTP, MTRJ, MU, MT, etc.
Direct and angular polishing of the ends of the connectors is supported.
It can be connected to a special display (FIP-400-D), to a computer via USB, or to EXFO devices: FTB-500, FTB-200, FTB-1, AXS-100/110, FOT-930.
Description of EXFO FIP-400 Compact Microscope

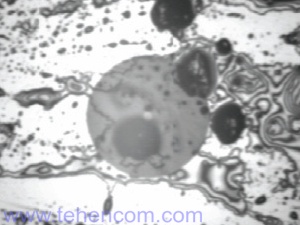

Video microscope for optical fiber EXFO FIP-400 An example image of a contaminated optical connector obtained using an EXFO FIP-400 video microscope

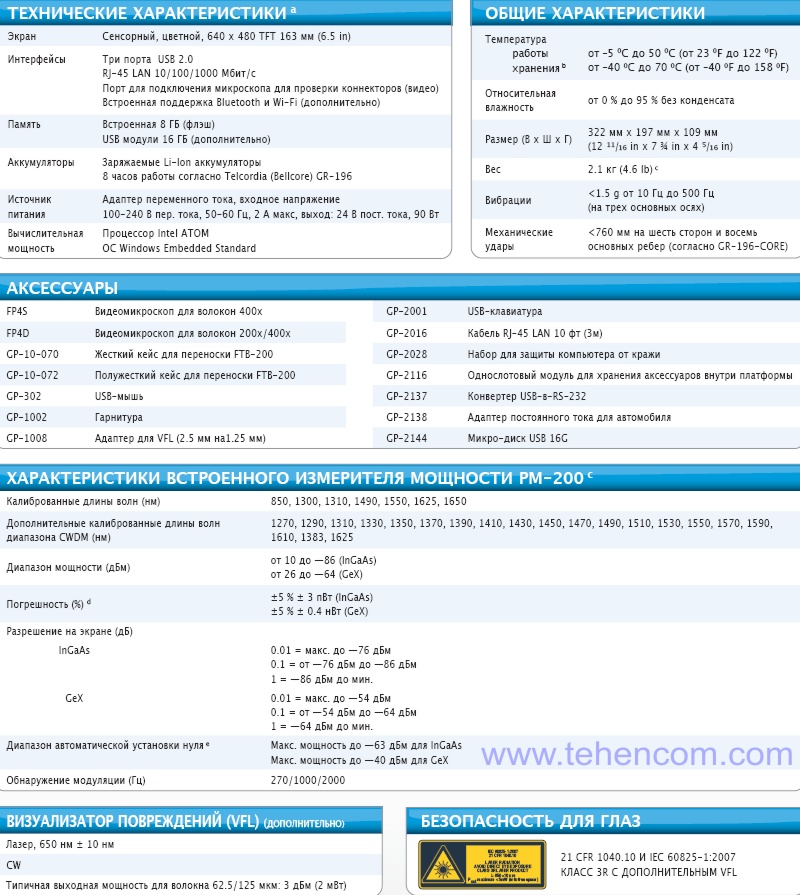

Specifications of EXFO FTB-200 v2 Compact Modular Measurement Platform

Specifications of EXFO FTB-200 v2 Compact Modular Measurement Platform



Warranty:
1 year. It is possible to extend the warranty period up to 3 years.



Description of the compact measuring platform EXFO FTB-200 v2 (8 pages; 2.4 MB)
