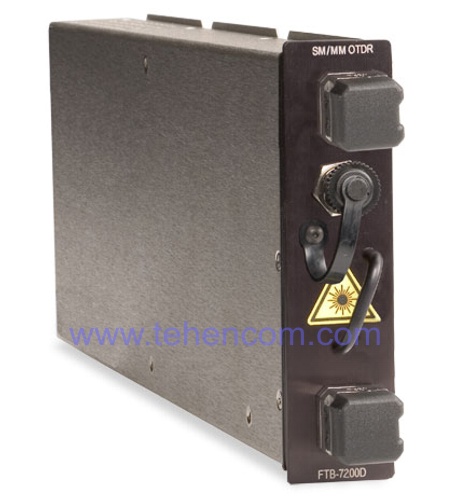

Optical reflectometer module up to 36 dB (SM + MM) EXFO FTB-7200D

Optical reflectometer module up to 36 dB (SM + MM) EXFO FTB-7200D

Product code: 1000801

Check availability Discontinued

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Out of production. Recommended replacement: EXFO FTBx-720C



The LAN/WAN EXFO FTB-7200 D OTDR optical reflectometer module is designed for measurements both in local and backbone optical networks.

The module has 3 configurations: single mode (1310 and 1550 nm), multimode (850 and 1300 nm) and universal - single mode and multimode: wavelengths - 850, 1300, 1310 and 1550 nm, with dynamic range: 27, 26, 37 and 35 dB respectively. The module is capable of operating even at high levels of reflections, making it extremely effective for testing local networks.

The FTB-7200 module has the smallest dead zones in its area: event dead zone is 1 m and attenuation dead zone is 4.5 m for singlemode and multimode fibers. The function of control of conditions of input of radiation gives the chance to receive more exact measurements. The module is optimized for both 50 µm and 62.5 µm multimode fibers.

Additionally, the module can be equipped with the VFL option, a visual fault locator, which makes it an extremely flexible and cost-effective instrument.



FTB-7500 E optical reflectometer modules are compatible with measurement platforms: EXFO FTB-500 and EXFO FTB-200.


Specifications of EXFO FTB-7200D Optical Reflectometer Modules

Specifications of EXFO FTB-7200D Optical Reflectometer Modules


Modifications of EXFO FTB-7200D optical reflectometer modules

- FTB-7200D-023B-XX (SM OTDR Module, 1310/1550 nm, 35/34 dB (9/125 µm))
- FTB-7200D-12CD-XX (MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm))
- FTB-7200D-12CD-23B-XX-XX (MM/SM OTDR Module, 850/1300/1310/1550 nm, 26/25/35/34 dB (MM : 50/125 & 62.5/125 µm - SM: 9/125 µm))


1 year. It is possible to extend the warranty period up to 3 years.


Description of the optical reflectometer module single-mode + multimode EXFO FTB-7200D (14 pages; 4.4 MB)
