Laboratory power supply ITECH IT6723, 80 V, 40 A, 850 W

Name: Laboratory DC power supply ITECH IT6723
Brand: ITECH Electronic
SKU: 3020135
Price: 60846 UAH
Availability: BackOrder

Expert choice

ITECH IT6700H series typical laboratory power supply (from 20 A)

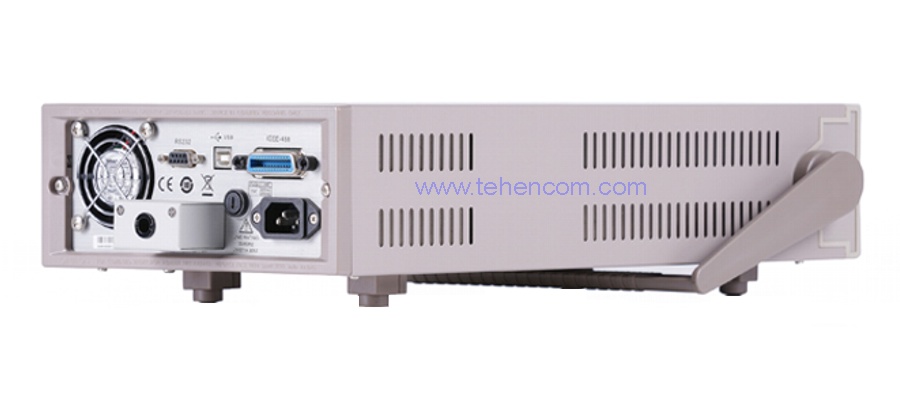

Typical high voltage power supply of the ITECH IT6700H series (side view 2)

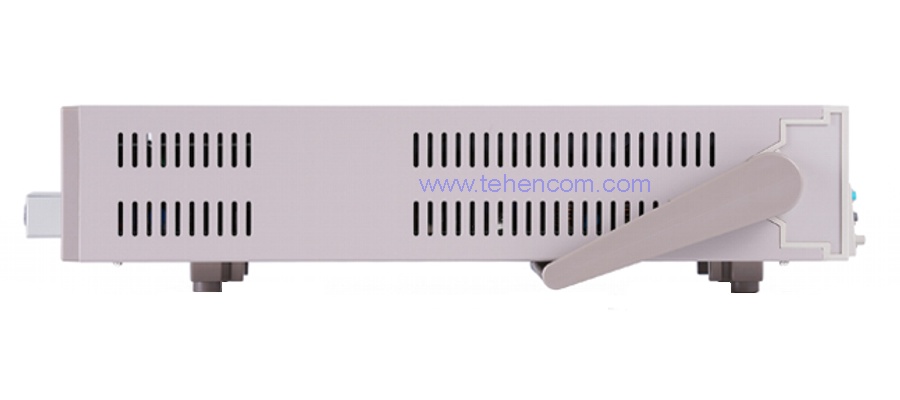

Typical high voltage power supply of the ITECH IT6700H series (side view 3)

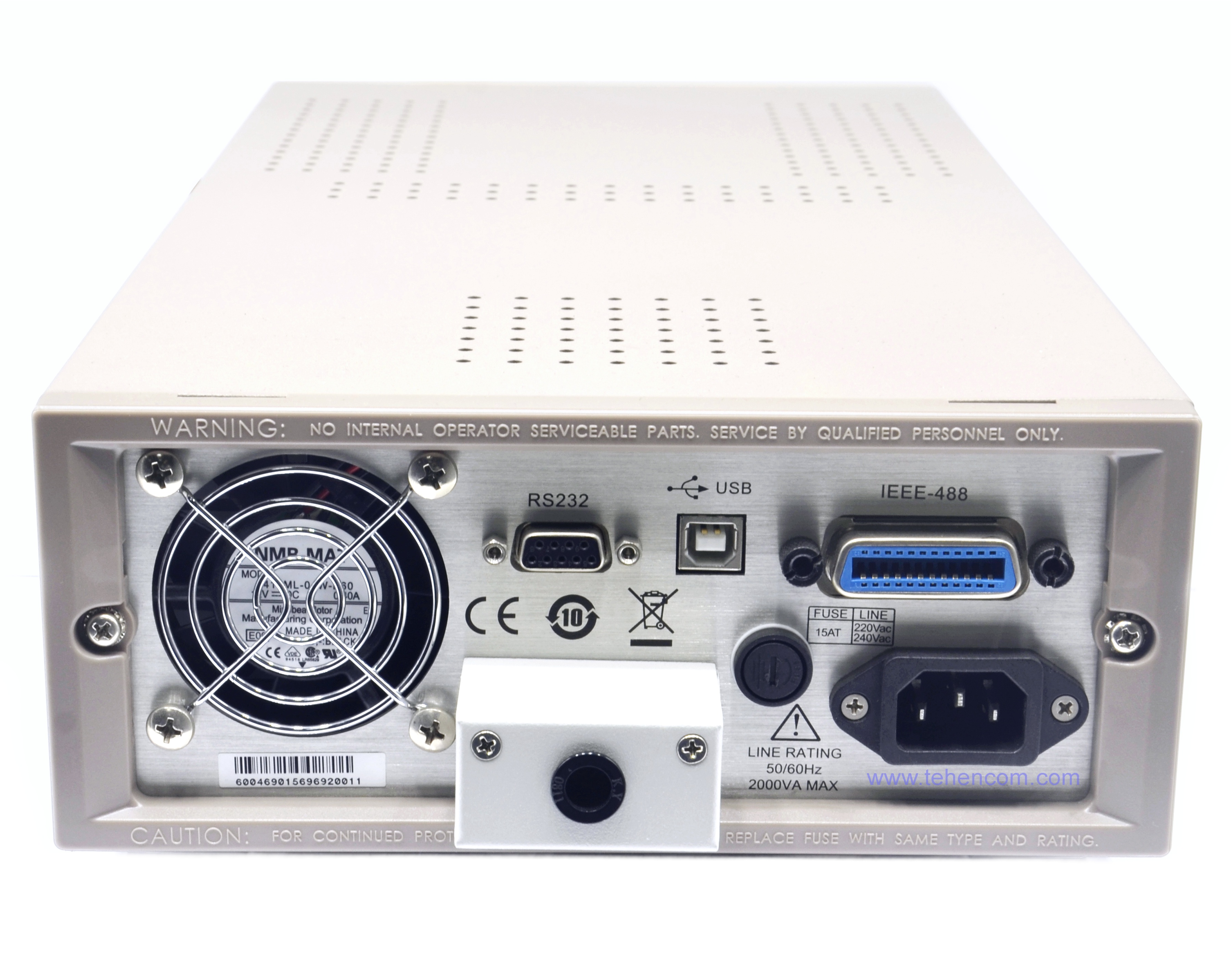

Typical power supply of the ITECH IT6700H series (up to 1500 W, back view)

Typical high voltage power supply of the ITECH IT6700H series (side view 4)

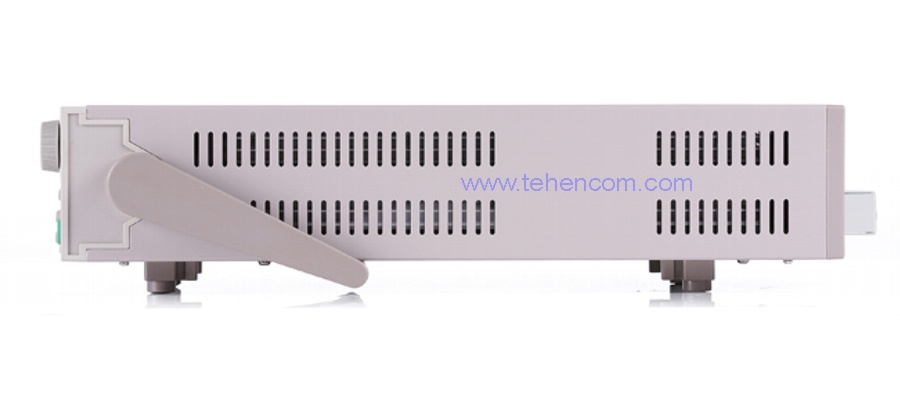

Typical high voltage power supply of the ITECH IT6700H series (side view 5)

On order

Product code: 3020135

60 846 UAH

Main characteristics

Manufacturer:

ITECH (Taiwan) Official representative
Category:

Laboratory power supplies
Series:

ITECH IT6700H
Output voltage type:

Direct current (DC)
Number of channels (DC):

1
Maximum output voltage (DC):

80 V
Maximum output current (DC):

40 A
Maximum output power (DC):

850 W
Voltage resolution (DC):

10 mV
Current resolution (DC):

10 mA
Operating principle:

Switching
4-wire sensing:

Yes
Protection modes:

Voltage protection (OVP, UVP) Current protection (OCP) Temperature protection (OTP) Short circuit protection
Built-in devices:

Multimeter (DMM)
Peculiarities:

Adjustable Stabilized Programmable
Connection to computer:

USB GPIB (IEEE-488.2) RS-232
Operating temperature:

From 0°С to +40°С
Width:

255 mm
Height:

109 mm
Depth:

520 mm
Weight:

6 kg

Product description

ITECH IT6723 is a laboratory DC power supply with an output voltage of up to 80 V and a current of up to 40 A. The maximum power delivered to the load is 850 W. The IT6723 power supply has a list mode (up to 150 steps), all types of overload protection and the ability to connect in a 4-wire circuit for increased accuracy at high current.

To connect to a computer, the ITECH IT6723 laboratory power supply contains USB, IEEE-488 and RS-232 interfaces. Remote control can be performed using a free program or use the driver for LabVIEW, which can be downloaded below on this page in the Documentation section. Model IT6723 is part of the ITECH IT6700H series.

For more information about this product, see the ITECH IT6700H series page

Contents of delivery

laboratory power supply ITECH IT6723 (1 pc.)
USB cable (1 pc.)
power cable (1 pc.)
user manual in electronic form
calibration certificate
1 year warranty

Additional accessories

ITECH IT-E30615-OO

Product code: 9750021
On order Expert choice

A pair of cables for power supplies and electronic loads. Length 1.5 meters, current up to 60 A, tips: ring terminal - ring terminal.

From 2 370 UAH
ITECH IT-E151

Product code: 9750016
On order

Rack mount kit for ITECH laboratory power supplies.

From 3 660 UAH
