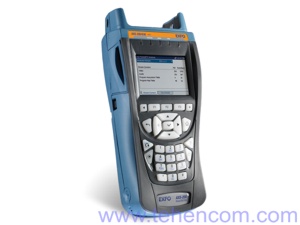

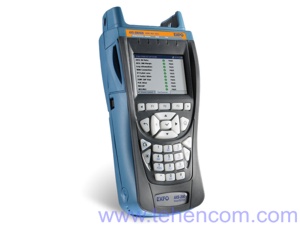

Handheld modular measuring platform for access networks EXFO AXS-200



MAIN CHARACTERISTICS

The EXFO AXS-200 handheld modular platform is designed for multi-level testing in optical and copper access lines. The AXS-200 is a test platform that performs all the measurements required by network providers: testing VoIP, IPTV, ISP over optical fiber or copper, while testing Ethernet, copper line bandwidth, etc.

Multiservice platform EXFO AXS-200 is designed for measurements in three environments (xDSL, Ethernet, and fiber) can be easily configured for copper/DSL/triple-play, Ethernet, and fiber measurements using the common Windows CE GUI. Thanks to this, the training time of personnel is significantly reduced, which allows both experienced and novice repairmen to quickly carry out a large amount of measurements at the stage of deploying new services in the network.

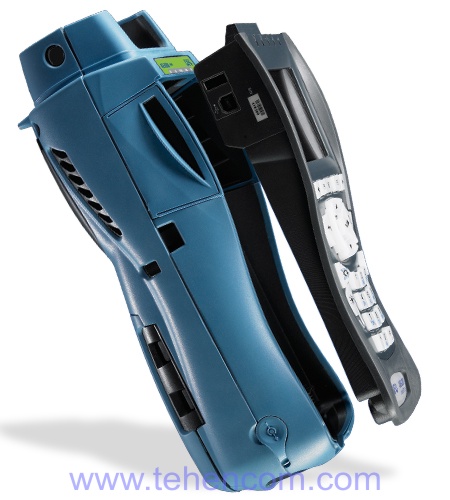

Side view: EXFO AXS-200 platform and plug-in module for it

Testing capabilities depend on the type of module that is included with the AXS-200 platform.
Now 8 different modules are being produced (see below), the list of which is regularly updated with new models.

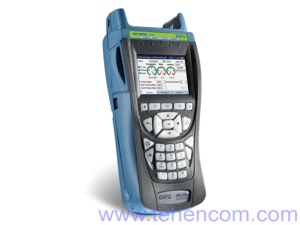

Wide range of modules for the EXFO AXS-200 Modular Access Network Platform

The EXFO AXS-200 platform is compatible with these modules for FOCL:
- EXFO AXS-200/350 - designed for testing optical losses;
- EXFO AXS-200/360 - designed for fiber optic certification;
- FIP-400 - compact microscope (magnification: 200 and 400 times)

The EXFO AXS-200 platform is compatible with these modules for analyzing telecommunication protocols:
- EXFO AXS-200/850 - Designed for testing Ethernet (including IPv6) up to 1 Gbps;
- EXFO AXS-200/805, AXS-200/855 - designed for multilevel testing of access networks;
- EXFO AXS-200/650 - designed to test IP Triple-Play services;
- EXFO AXS-200/635 - designed for testing copper lines up to 30 MHz, xDSL and IP triple-play;
- EXFO AXS-200/630 - designed for testing VDSL2, ADSL2+ and IP triple-play;
- EXFO AXS-200/610 - designed for testing copper lines up to 30 MHz



EXFO AXS-200/350 optical tester module

Source: 850, 1300, 1310, 1490, 1550 and 1625 nm (model dependent).

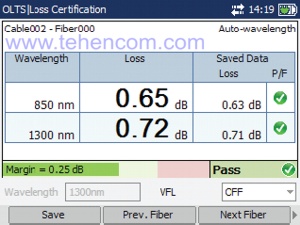

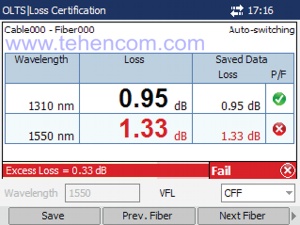

Built-in power meter calibrated to 40 wavelengths CWDM. Detector type: Ge (model AXS-200/352) and GeX (model AXS-200/352X). Operating modes: insertion loss measurement, radiation source, power meter, visual flaw detector VFL (option). Possibility of semi-automatic testing. Standard Support IEC 61280-4-1.
Compatible with EXFO AXS-200 platform.
Description of the module of the optical tester EXFO AXS-200/350



EXFO AXS-200/360 optical power meter module

Power meter calibrated to 40 wavelengths CWDM.
Detector type: Ge (model AXS-200/362). Built-in visual flaw detector VFL (option). Ability to evaluate by the criterion "good / bad". Standard support IEC 61280-4-1.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/360 optical power meter module

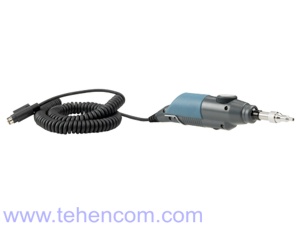

EXFO FIP-400 fiber optic video microscope for EXFO AXS-200 platform

Magnification: 200 or 400 (depending on the model).
Safe for the eyes. It is possible to save the image on a computer.
With the help of interchangeable nozzles, it can be connected to patch cords and patch panels of the following types: FC, SC, LC, ST, SMA, E2000, D4, Lemo, MTP, MTRJ, MU, MT, etc.
Direct and angular polishing of the ends of the connectors is supported.
Can be connected to a special display (FIP-400-D), to a computer via USB, or to EXFO devices: AXS-200, FTB-500, FTB-200, FTB-1, AXS-100/110, FOT-930.
Description of EXFO FIP-400 Compact Microscope



Ethernet tester module up to 1 Gbps EXFO AXS-200/850

Ethernet: 10 Mbps to 1 Gbps.
User configurable tests according to RFC 2544, traffic generation and monitoring, multithreaded background traffic, error rate measurement (BERT) up to level four, auto-detect - for loopback testing, configuration VLAN and Q-in-Q support, QoS, ToS and differentiated services support, IPv4/IPv6 support, cable testing.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/850 Ethernet tester module up to 1 Gbps



EXFO AXS-200/805/855 Multilayer Access Network Tester Modules

- testing Ethernet/PDH/DSn lines (model AXS-200/855)
- testing only PDH/DSn lines (model AXS-200/805)
Integrated solution for E1/DS1, DS3, ISDN PRI and Ethernet.
ethernet: BER measurement, RFC 2544 testing, traffic generation, QoS measurement, IPv4/IPv6 support, cable testing.
PDH/DSn: E1 and DS1 dual independent tests, insertion and detection of accidents and errors, performance monitoring, status of all 30 channels.
Ports: Ethernet 10/100/1000 electrical and 100/1000 optical, two PDH/DSn interfaces (E1 and others).
Compatible with EXFO AXS-200 platform.
Description of EXFO AXS-200/805/855 Multilayer Access Network Tester Modules



EXFO AXS-200/650 IP triple-play tester module

Triple play testing: IPTV, data transfer and VoIP.
Two Ethernet ports. Operates as a 10 and 100 Mbps Ethernet termination or transparent device. Performs analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view.
It is a simple and affordable solution for testing subscriber IP services with a quick pass/fail assessment.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/650 IP triple-play tester module



EXFO AXS-200/635 copper line tester module up to 30 MHz, VDSL2, ADSL2+ and IP triple-play

Triple play testing: IPTV, data transfer and VoIP.
Testing VDSL2 and ADSL1/2/2+ Annex A, B, L and M.
Testing physical layer copper lines up to 30 MHz.
Multilayer analysis of copper lines, xDSL and triple-play. Analysis of the spectrum in the line. Reflectometry (TDR and FDR) for line and defect analysis.

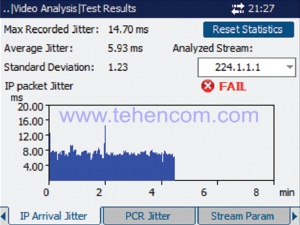

Analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/635 copper line tester module up to 30 MHz, VDSL2, ADSL2+ and IP triple-play



EXFO AXS-200/630 VDSL2, ADSL2+ and IP triple-play tester module

Triple play testing: IPTV, data transfer and VoIP.
Testing VDSL2 and ADSL1/2/2+ Annex A, B, L, and M. A
cost-effective solution for testing triple-play services carried over VDSL2 and ADSL1/2/2+ and Ethernet over FTTx networks.
Analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/630 VDSL2, ADSL2+ and IP triple-play tester module



EXFO AXS-200/610 copper line tester module up to 30 MHz

Testing physical layer copper lines up to 30 MHz.
Multilevel analysis of copper lines. Analysis of the spectrum in the line. Reflectometry (TDR and FDR) for line and defect analysis. Rate prediction for ADSL2+. Convenient visual reports, graphs and histograms that identify signal and noise problems.
Compatible with EXFO AXS-200 platform.
Description of the EXFO AXS-200/610 copper line tester module up to 30 MHz



Specifications of handheld modular platform for access networks EXFO AXS-200

Like all manual measuring instruments produced by the company EXFO, AXS-200 is equipped with a user-friendly interface. The device implements testing with accurate results at the touch of a button, visual display of threshold values Goodin/Unfit. The bright contrast screen provides excellent visibility. In addition, the results obtained can be transferred to a computer, processed and presented in the form of reports.



Warranty:
1 year. It is possible to extend the warranty period up to 3 years.



Short description of handheld modular platform for access networks EXFO AXS-200 (193 KB)

EXFO AXS-200 Brochure (English) (3.75 MB)
