ADSL2+ / VDSL2 testers (protocol analyzers)

Family of standards for data transmission to the subscriber xDSL includes a number of varieties: ADSL, ADSL2, ADSL2+, VDSL2 and others.

ADSL (Asymmetric Digital Subscriber Line) – a modem technology in which the available bandwidth of the channel is distributed asymmetrically between incoming and outgoing traffic. Currently the most widespread variety ADSL2+ (ITU G.992.5 standard), which extends the capabilities of the underlying ADSL technology by doubling the downstream data rate to 24 Mbps.

VDSL2 (Very-high data rate Digital Subscriber Line 2) is the latest and fastest access technology in the xDSL family, which uses the existing infrastructure of copper wires to support the widespread deployment of Triple Play services such as voice, video, data, high-definition television (HDTV) and interactive games. The data transfer rate is from 50 to 200 Mbps.

Tehencom company supplies a full range of ADSL and VDSL protocol analyzers of all varieties which can significantly reduce the cost and increase the speed of implementation of these technologies.

Below are the most popular ADSL2+ / VDSL2 protocol analyzers. Regarding prices and delivery times for the entire range of instrumentation, simply call us or write to us at E-mail and we will be happy to answer your questions.

Model	A photo	Short description
ADSL2+ / VDSL2 protocol analyzers of the EXFO company
EXFO FTB-1	Add to cart Product code: 1000392	Compact measuring platform EXFO FTB-1 It is intended for complete research of fiber optic lines (city networks, access networks, FTTx-PON, SCS), as well as testing protocols (Ethernet, SDH, PDH, xDSL). Plug-in video microscope for checking the quality of optical connectors. 17.8 cm widescreen touchscreen (800 x 480 resolution). Intel ATOM processor. Operating system Windows Embedded Standard. Interfaces: USB and Ethernet (standard), optional: Wi-Fi and Bluetooth, 3G modem, GPS. Internal memory: 8 GB (flash). Battery life: 8 hours. Weight (with battery): 1.5 kg. Dimensions: 19 x 25 x 6.6 cm. One plug-in module slot (platform capabilities vary by module type). The EXFO FTB-1 Modular Platform is compatible with these modules for T&D: - FTB-810 - SDH and PDH protocol analyzer module up to 10 Gbps - FTB-860 - Ethernet analyzer module from 10 Mbps to 10 Gbps - FTB-880 - Ethernet, SDH and PDH analyzer module up to 10 Gbps - FTB-610 - copper twisted pair analyzer module up to 30 MHz - FTB-635 - twisted pair analyzer module up to 30 MHz, ADSL2+ / VDSL2 and 1 Gb Ethernet The EXFO FTB-1 Modular Platform is compatible with these modules for FOCL: - FTB-720 - reflectometer main module (36 dB) single-mode + multi -mode - FTB-730 - reflectometer module (39 dB) PON-optimized - FIP-400 - compact microscope (magnification: 200 and 400 times) for optical connectors New, optimal solution for optical networks, Ethernet, SDH, PDH and xDSL
EXFO AXS-200	Add to cart Product code: 1000393	Manual modular platform EXFO AXS-200 SharpTESTER Designed for testing access networks: - testing of copper lines / xDSL / Services "three-in-one" - testing of Ethernet lines; - testing of optical lines. 9 cm color screen (resolution 320 x 240). Interfaces: USB, Ethernet. Internal memory: 512 MB (flash). Battery life: depends on the module. Weight (with battery): 1.7 kg. Dimensions: 28 x 12 x 9 cm. Possibility to install one replaceable module. ADSL2+ / VDSL2 analyzer modules for AXS-200: - AXS-200/650 - IP triple-play tester module - AXS-200/635 - copper line tester module, xDSL and IP triple-play - AXS-200/630 - VDSL2, ADSL2+ and IP triple-play tester module - AXS-200/610 - copper line tester module up to 30 MHz

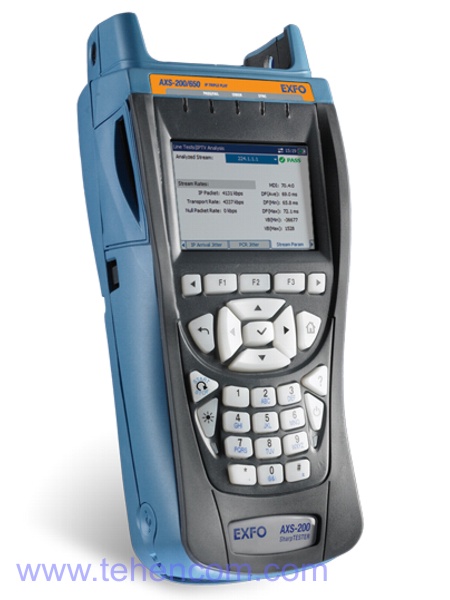

EXFO AXS-200/650	Add to cart Product code: 1000394	IP triple-play tester EXFO AXS-200/650 Triple play testing: IPTV, data transfer and VoIP. Two Ethernet ports. Operates as a 10 and 100 Mbps Ethernet termination or transparent device. Performs analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view. It is a simple and affordable solution for testing subscriber IP services with a quick pass/fail assessment. Compatible with EXFO platform AXS-200.

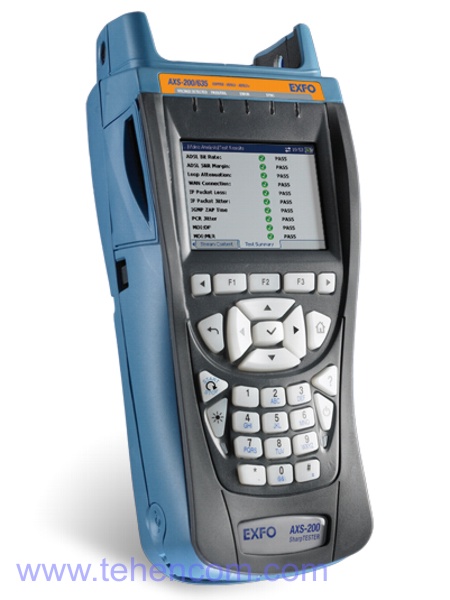

EXFO AXS-200/635	Add to cart Product code: 1000395	Tester of copper lines up to 30 MHz, VDSL2, ADSL2+ and IP triple-play EXFO AXS-200/635 Triple play testing: IPTV, data transfer and VoIP. Testing VDSL2 and ADSL1/2/2+ Annex A, B, L and M. Testing physical layer copper lines up to 30 MHz. Multilayer analysis of copper lines, xDSL and triple-play. Analysis of the spectrum in the line. Reflectometry (TDR and FDR) for line and defect analysis. Analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view. Compatible with EXFO platform AXS-200.

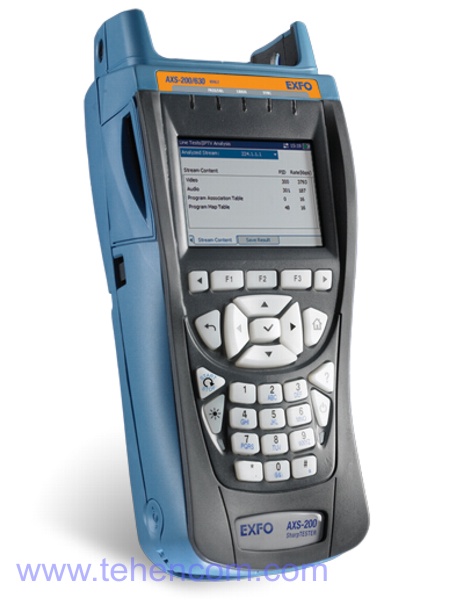

EXFO AXS-200/630	Add to cart Product code: 1000396	EXFO AXS-200/630 VDSL2, ADSL2+ and IP triple-play tester Triple play testing: IPTV, data transfer and VoIP. Testing VDSL2 and ADSL1/2/2+ Annex A, B, L, and M. A cost-effective solution for testing triple-play services carried over VDSL2 and ADSL1/2/2+ and Ethernet over FTTx networks. Analysis IPTV using TV box emulation, analysis VoIP, data analysis, measurement RFC 4445 (MDI), jitter PCR and PID view. Compatible with EXFO platform AXS-200.

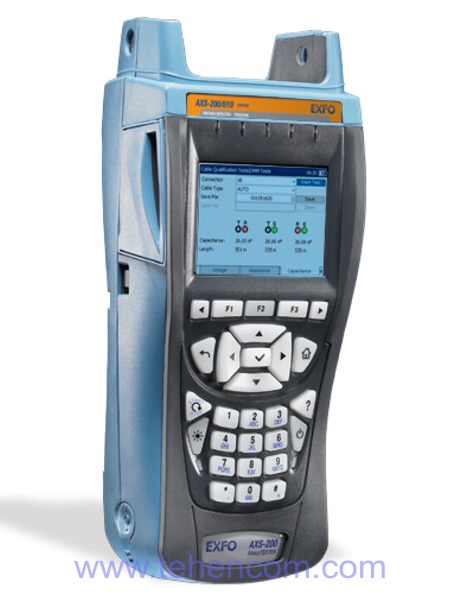

EXFO AXS-200/610	Add to cart Product code: 1000397	Tester of copper lines up to 30 MHz EXFO AXS-200/610 Testing physical layer copper lines up to 30 MHz. Multilevel analysis of copper lines. Analysis of the spectrum in the line. Reflectometry (TDR and FDR) for line and defect analysis. Rate prediction for ADSL2+. Convenient visual reports, graphs and histograms that identify signal and noise problems. Compatible with EXFO platform AXS-200.

Economy offer

Tehencom company offers both completely new devices, as well as used and fully restored in the factory. The cost of refurbished devices can be 1.5 - 2 times lower than the cost of new ones. All proposed refurbished devices are 100% operational, meet the technical requirements of the manufacturer and are provided 1 year warranty.

Below are some of the many refurbished instruments we offer.

Model	A photo	Short description
ADSL2+ / VDSL2 protocol analyzers of the EXFO company (refurbished)
EXFO AXS-200	Add to cart Product code: 1000393	Manual modular platform EXFO AXS-200 SharpTESTER Designed for testing access networks: - testing of copper lines / xDSL / Services "three-in-one" - testing of Ethernet lines; - testing of optical lines. 9 cm color screen (resolution 320 x 240). Interfaces: USB, Ethernet. Internal memory: 512 MB (flash). Battery life: depends on the module. Weight (with battery): 1.7 kg. Dimensions: 28 x 12 x 9 cm. Possibility to install one replaceable module. ADSL2+ / VDSL2 analyzer modules for AXS-200: - AXS-200/650 - IP triple-play tester module - AXS-200/635 - copper line tester module, xDSL and IP triple-play - AXS-200/630 - VDSL2, ADSL2+ and IP triple-play tester module - AXS-200/625 - copper line tester module, ADSL1/2/2+ and triple-play - AXS-200/610 - copper line tester module up to 30 MHz
