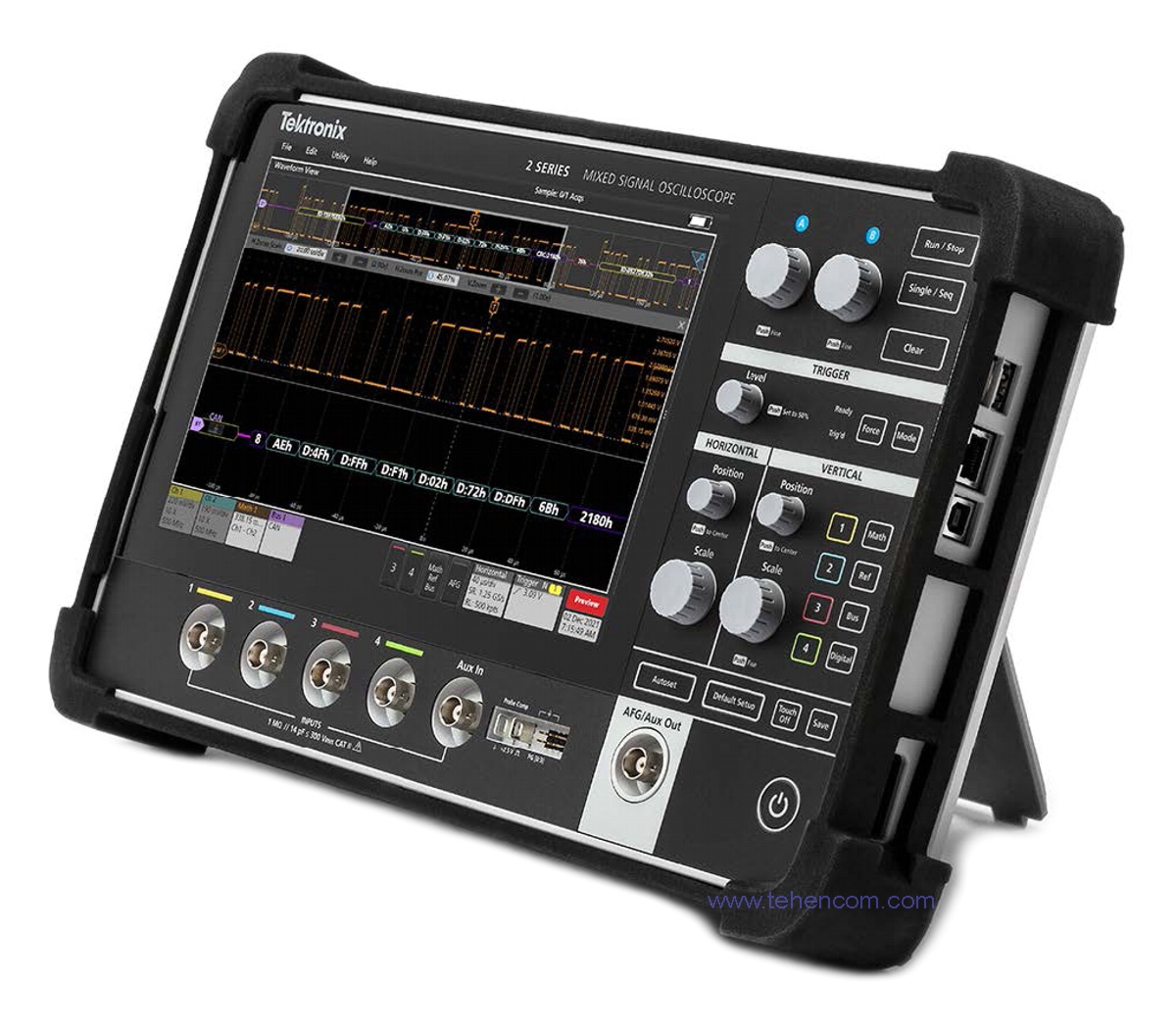

Portable oscilloscope Tektronix MSO24-BW-100

Main characteristics

• Manufacturer:
  Tektronix (USA) Official representative
• Category:
  Oscilloscopes
• Series:
  Tektronix MSO2
• Bandwidth:
  100 MHz
• Analog channels:
  4

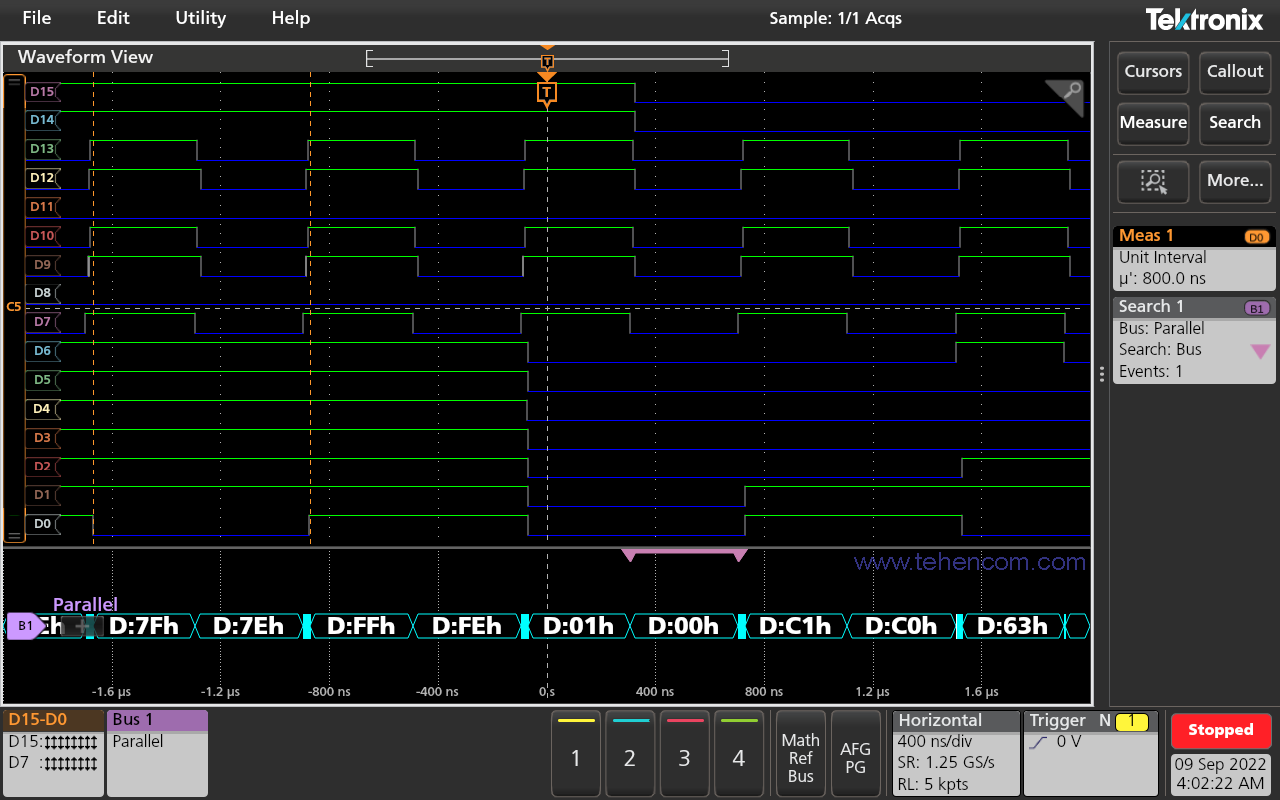

• Digital channels:
  16
• Sample rate:
  2.5 GS/s
• Record length:
  40 M points
• Vertical resolution:
  8 bits
• Waveforms per second:
  100
• Maximum sensitivity:
  10 V/div
• Minimum sensitivity:
  1 mV/div
• Operating temperature:
  From 0°С to +50°С
• Width:
  344 mm
• Height:
  210 mm
• Depth:
  40 mm 78 mm
• Weight:
  1.8 kg 3.2 kg 3.6 kg
