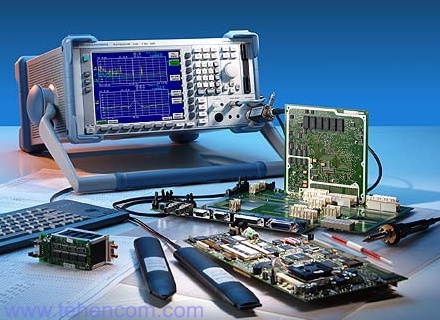

EMC pre-test receiver series (7 GHz) Rohde & Schwarz ESPI

Product code: 1000228

On order

Add item to cart. Our specialist will coordinate with you the complete set, tell you the price and delivery time.

Price on request

Add to cart

MAIN CHARACTERISTICS

Two Models of Test Receiver for Preliminary Electromagnetic Interference (EMI) Testing R&S ESPI realize many of the benefits of Rohde & Schwarz's complete EMI test receivers for EMC and EMI compliance testing (e.g. series ESU or series ESCI).
With the R&S ESPI-K50 option installed, the ESPI3 and ESPI7 test receivers can be used to measure the field strength profiles of radio communications and broadcast networks.
Models differ in the operating frequency range: 9 kHz - 3 GHz (model ESPI3) and 9 kHz - 7 GHz (model ESPI7).

Key facts
- low measurement uncertainty (less than 1.5 dB in receiver mode)
- preselection filters and built-in 20 dB preamplifier (option)
- unprecedented measurement speed (from 100 µs)
- low noise level (12 dB noise figure with preamplifier)
- programmable scan tables including up to 10 subbands
- preset cutoff lines and correction factors
- transducer ratios and transducer sets
- autoranging and overload protection
- spectrum analyzer
- built-in audio demodulator with loudspeaker
- USB interface, WinXP Embedded operating system
- bright color LCD - display with a diagonal of 21 cm
- powered by battery or AC power

Specifications for EMI test receivers Rohde & Schwarz ESPI3, ESPI7

Warranty:
1 year. It is possible to extend the warranty period up to 3 years.

Description of EMI test receivers Rohde & Schwarz ESPI3, ESPI7 (28 pages; 3 MB)
