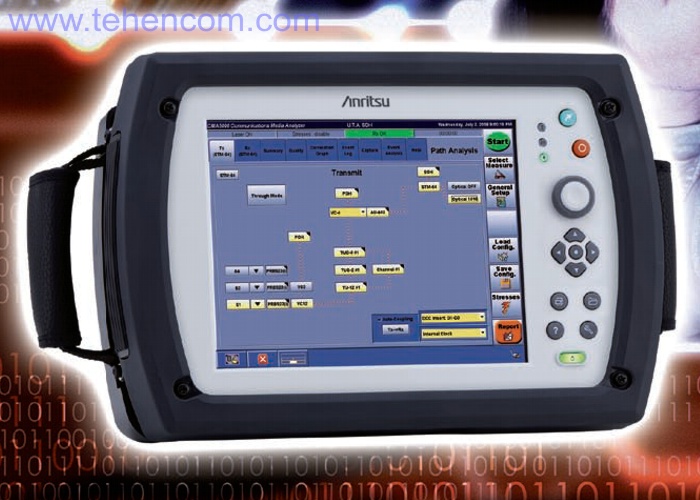

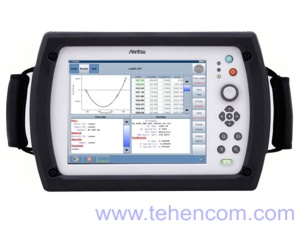

Anritsu CMA5000a Universal Modular Measurement Platform

Anritsu CMA5000a Universal Modular Measurement Platform

Out of production. Recommended replacement: Anritsu MT1000A



MAIN CHARACTERISTICS

Designed to test all existing types of networks. Layer testing: physical, optical, transport and data.
26.5 cm touchscreen (1024 x 768 resolution).
Intel Celeron processor. Operating system Windows XP.
Wide range of field replaceable modules.
Two versions: 2 or 4 slots for installing replaceable modules.
2 slots: weight (with battery): 6 kg. dimensions: 37 x 25 x 14 cm.
4 slots: weight (with battery): 7 kg. dimensions: 37 x 25 x 18 cm.

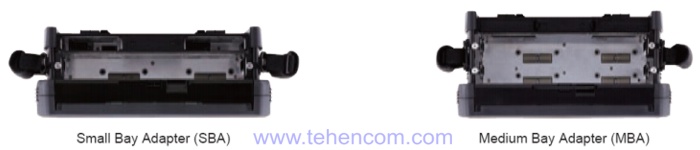

Two types of performance (for 2 and 4 slots) of the Anritsu CMA5000a measuring platform (top view)

Two types of execution (for 2 and 4 slots) of the universal measuring platform Anritsu CMA5000a (top view)



Wide range of modules for the Anritsu CMA5000a Universal Measurement Platform

The Anritsu CMA5000a platform is compatible with these modules for FOCL:
- OSA400, OSA425 - optical spectrum analyzer modules
- CMA5300 - chromatic dispersion analyzer (CD) module + OTDR
- CMA5400 - polarization mode dispersion (PMD) analyzer module
- CMA5200 - optical reflectometer modules (up to 50 dB)

The Anritsu CMA5000a platform is compatible with these modules for analyzing telecommunication protocols:
- UTA - 10G SDH/OTN/Ethernet/ATM analyzer module
- XTA - 10G SDH/PDH/ATM analyzer module + jitter
- CMA5710 GigE - Ethernet analyzer module up to 1 Gbps



Optical spectrum analyzer modules OSA400, OSA425 for Anritsu CMA5000a platform

Wavelength range: 1250 nm - 1650 nm.
Dynamic Range: -70dBm to +20dBm.
Wavelength measurement error: from 0.01 to 0.04 nm.
Power measurement error: 0.4 dB.
More than 90 dB dynamic range.
Economic solution (model OSA425).
Opportunity to allocate an optical channel (model OSA 400).
Supports any channel multiplexing: from 12.5 GHz DWDM to CWDM.
Support system testing 40 Gbit/s.
Size: 4 slots. Compatible with Anritsu CMA5000a platform.
Description of modules of optical spectrum analyzers Anritsu OSA400, OSA425

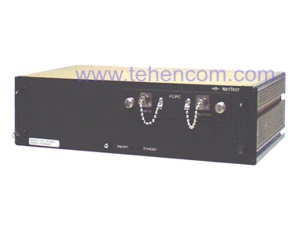

Optical spectrum analyzer module Anritsu OSA400, OSA425 Screenshot of the Anritsu OSA400, OSA425 optical spectrum analyzer module program



Chromatic Dispersion Analyzer (CD) Module + OTDR CMA5300 for Anritsu CMA5000a

Measurement error: 1%.
Fast measurement time: seconds per fiber.
Fully automated software.
Built-in optical reflectometer (OTDR).
Size: 1 slot. Compatible with Anritsu CMA5000a platform.

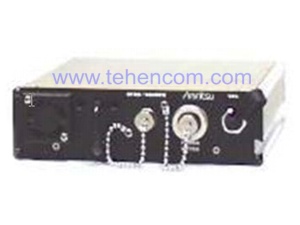

Description of the module Chromatic Dispersion Analyzer (CD) + OTDR Anritsu CMA5300

Chromatic Dispersion Analyzer (CD) + OTDR module Anritsu CMA5300 as part of Anritsu CMA5000a platform Screenshot of the chromatic dispersion analyzer (CD) + OTDR Anritsu CMA5300 module



CMA5400 Polarization Mode Dispersion Analyzer (PMD) Module

Measurement time: less than 8 seconds.
Dynamic Range: 55 dB with standard source, 64 dB with high power source.
Patented interferometer-based measurement method that complies with EIA/TIA FOTP-124 and IEC-61941 standards.
No autocorrelation peak. Measurement of the PMD value of the first and second order.
Size: 4 slots. Compatible with Anritsu CMA5000a platform.
Anritsu CMA5400 Polarization Mode Dispersion Analyzer (PMD) Module Description

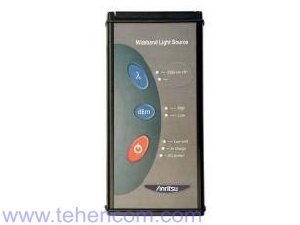

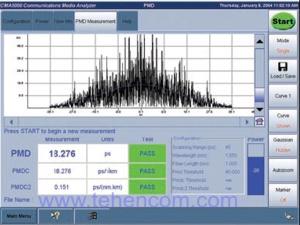

Broadband light source for use with the Anritsu CMA5400 Polarization Mode Dispersion Analyzer (PMD) module Screenshot of the Anritsu CMA5400 Polarization Mode Dispersion Analyzer (PMD) module



Optical reflectometer modules (up to 50 dB) CMA5200 for Anritsu CMA5000a platform

Wavelengths: 850, 1300, 1310, 1383, 1410, 1490, 1550, 1625 nm.
Dynamic Range: up to 50 dB. Dead zone by events: up to 1.7 m. Attenuation dead zone: up to 5 m. Number of trace points: up to 256,000. Support for global, urban, and passive optical networks (PON), including FTTP. In one module can be installed: OTDR, loss meter and visual flaw detector (VFL).
Size: 1 slot. Compatible with Anritsu CMA5000a platform.
Description of optical reflectometer modules (up to 50 dB) Anritsu CMA5200

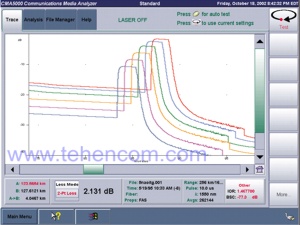

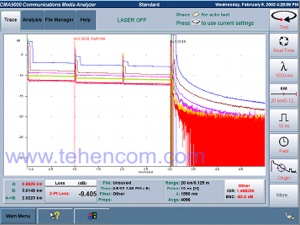

Optical reflectometer module (up to 50 dB) Anritsu CMA5200 Screenshot of Anritsu CMA5200 optical reflectometer modules (up to 50 dB)



Anritsu UTA 10G SDH/OTN/Ethernet/ATM Analyzer Module for Anritsu CMA5000a

SDH/SONET/OTN: 156 Mbps to STM-64/OTU2 (11Gbps).
Ethernet LAN/WAN: 10 Gbps.
ATM over SDH: up to 10 Gbps.
Universal solution for all types of modern networks up to 10 Gbps. Wide range of tests. Convenient presentation of test results.
Size: 2 slots. Compatible with Anritsu CMA5000a platform.

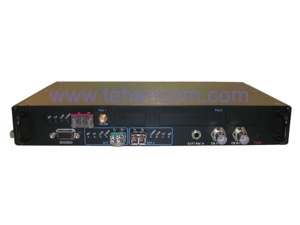

10G SDH/OTN/Ethernet/ATM Analyzer Module Description Anritsu UTA

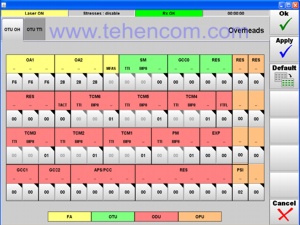

10G SDH/OTN/Ethernet/ATM Analyzer Module Anritsu UTA 10G SDH/OTN/Ethernet/ATM Anritsu UTA Analyzer Module Program Screenshot



10G SDH/PDH/ATM analyzer module + jitter Anritsu XTA for Anritsu CMA5000a

SDH/SONET/PDH/DSn: DS0/E0 to STM-64 (10 Gbps).
ATM over SDH: up to 10 Gbps.
All-in-one solution for SDH/PDH testing. Next generation SDH support (VCAT, LCAS, GFP, Eos). Traffic generation and analysis with jitter and wonder E1 to STM-16 (up to 2.5 GHz). Wide range of tests. Convenient presentation of test results.
Size: 2 slots. Compatible with Anritsu CMA5000a platform.
10G SDH/PDH/ATM analyzer module description + jitter Anritsu XTA

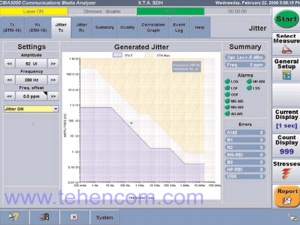

10G SDH/PDH/ATM analyzer module + jitter Anritsu XTA 10G SDH/PDH/ATM Analyzer Module Program Screenshot + Anritsu XTA Jitter



CMA5710 GigE Ethernet analyzer module up to 1 Gb/s for Anritsu CMA5000a platform

Ethernet: 10 Mbps to 1 Gbps.
IPv4 support /IPv6. Conducting tests BERT and RFC 2544.
VLAN support. Ports: 2 optical (SFP) and 2 electrical (RJ45).
Ability to set thresholds for pass/fail tests.
Size: 1 slot. Compatible with Anritsu CMA5000a platform.
Anritsu CMA5710 GigE Ethernet Analyzer Module Description up to 1 Gbps

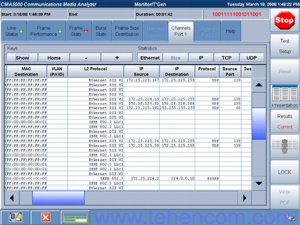

Anritsu CMA5710 GigE Ethernet analyzer module up to 1 Gbps Anritsu CMA5710 GigE Ethernet Analyzer Module Program Screenshot up to 1 Gbps



Specifications for the Anritsu CMA5000a Universal Measurement Platform

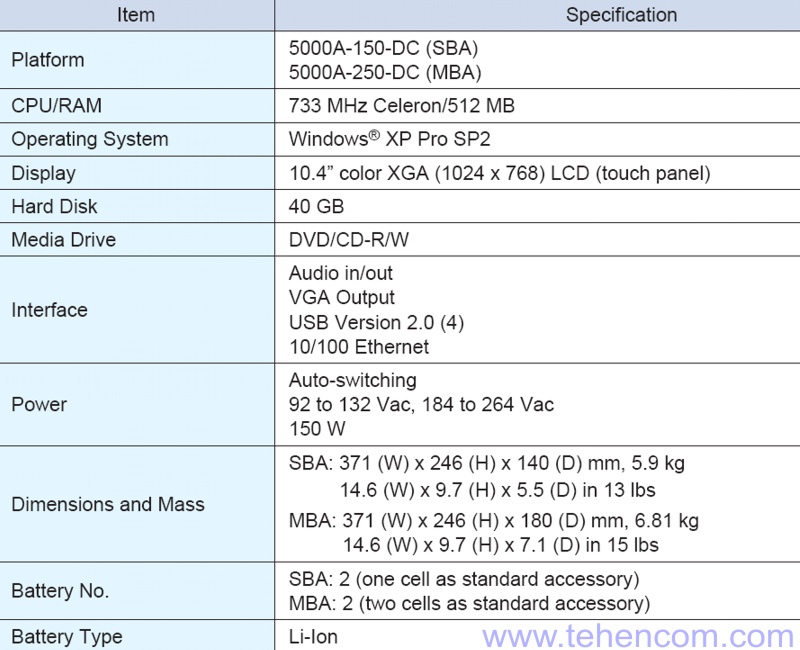

Specifications for the Anritsu CMA5000a Universal Measurement Platform



Warranty:
1 year. It is possible to extend the warranty period up to 3 years.



Anritsu CMA5000a Universal Measurement Platform Description (14 pages; 1 MB)
